Honda PCX150 2014 User Manual

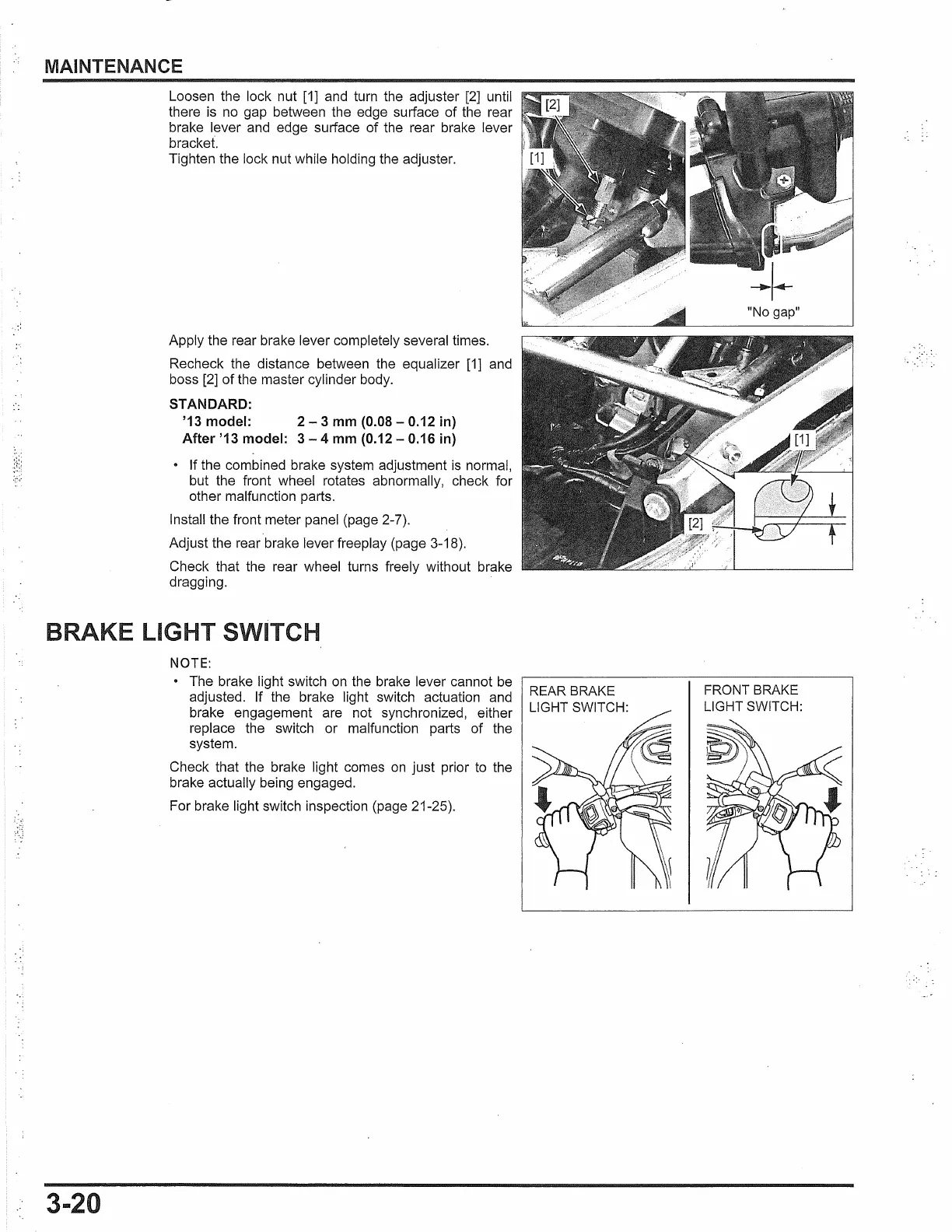

MAINTENANCE
Loosen the lock nut [1] and turn the adjuster [2] until
there
is no gap between the edge surface of the rear
brake lever
and edge surface of the rear brake lever
bracket.
Tighten the lock nut while holding the adjuster.
Apply the rear brake lever completely several times.
Recheck the distance between the equalizer
[1] and
boss
[2] of the master cylinder body.
STANDARD:
'13 model: 2 - 3
mm (0.08 - 0.12 in)
After '13 model: 3 - 4
mm (0.12- 0.16 in)
• If the combined brake system adjustment
is normal,
but the front wheel rotates abnormally, check for
other malfunction parts.
Install the front meter panel (page 2-7).
Adjust the rear brake lever freeplay (page 3-18).
Check that the rear wheel turns freely without brake
dragging.
BRAKE LIGHT SWITCH
3-20
NOTE:
• The brake light switch on the brake lever cannot be
adjusted. If the brake light switch actuation and
brake engagement are not synchronized, either
replace the switch or malfunction parts of the
system.
Check that the brake light comes
on just prior to the
brake actually being engaged.
For brake light switch inspection (page 21-25).
REAR BRAKE
LIGHT SWITCH:
FRONT BRAKE
LIGHT SWITCH:

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
