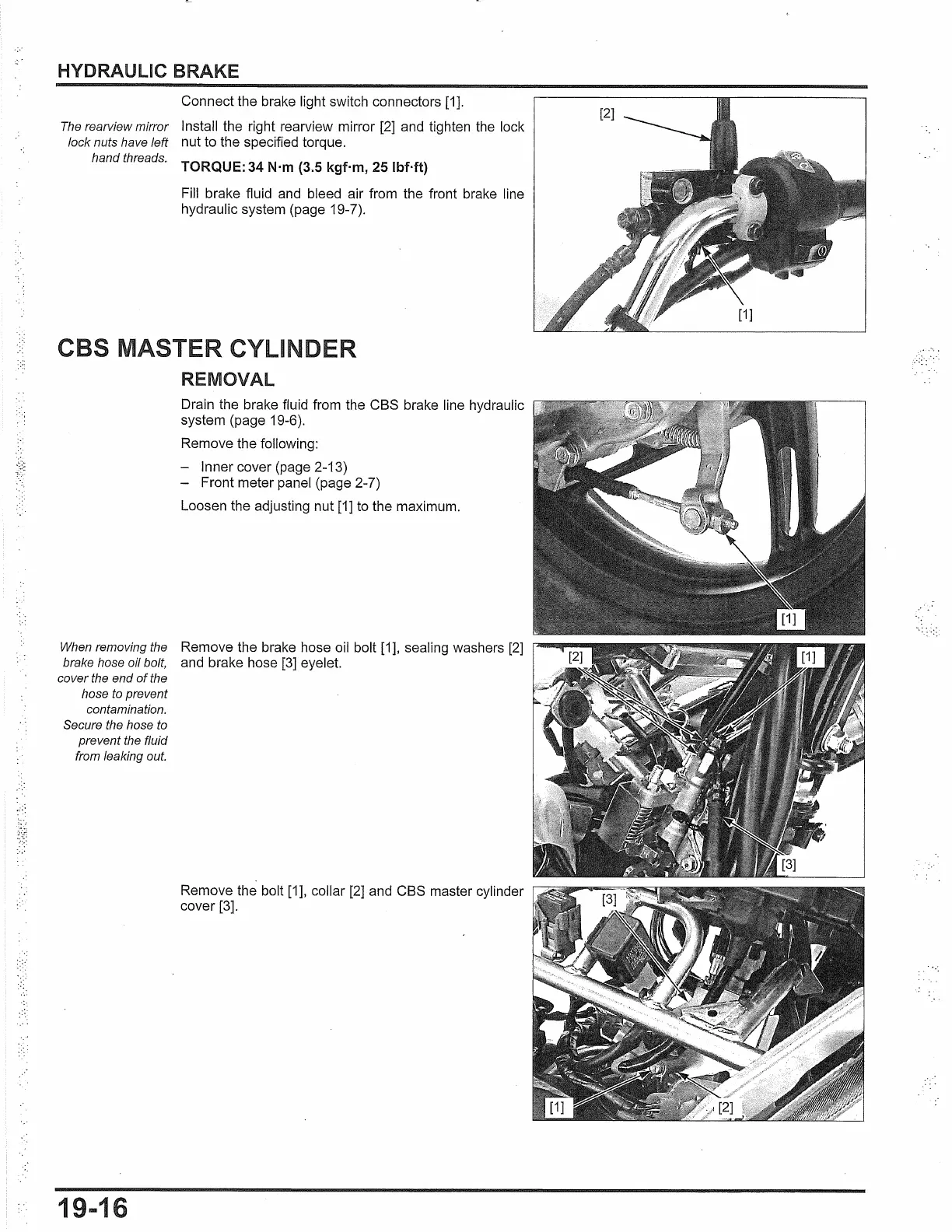

HYDRAULIC BRAKE
Connect the brake light switch connectors
[1].
The rearview mirror
Install the right rearview mirror [2] and tighten the lock
lock nuts have left
nut to the specified torque.
hand
threads.
TORQUE: 34 N·m (3.5 kgf·m, 25
lbMt)
Fill brake fluid and bleed air from the front brake line
hydraulic system (page 19-7).
CBS MASTER CYLIND R
REMOVAL
Drain the brake fluid from the CBS brake line hydraulic
system (page 19-6).
Remove the following:
- Inner cover (page 2-13)
- Front meter panel (page 2-7)
Loosen the adjusting nut [1] to the maximum.
When removing the
Remove the brake hose oil bolt [1], sealing washers
[2]
brake hose oil bolt,
and brake hose
[3]
eyelet.
cover the end
of
the
hose to prevent
contamination.
Secure the hose to
prevent the fluid
from leaking out.
19
...
15
Remove the bolt [1], collar [2] and CBS master cylinder
cover [3].

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
