Honda PCX150 2014 User Manual

F
F

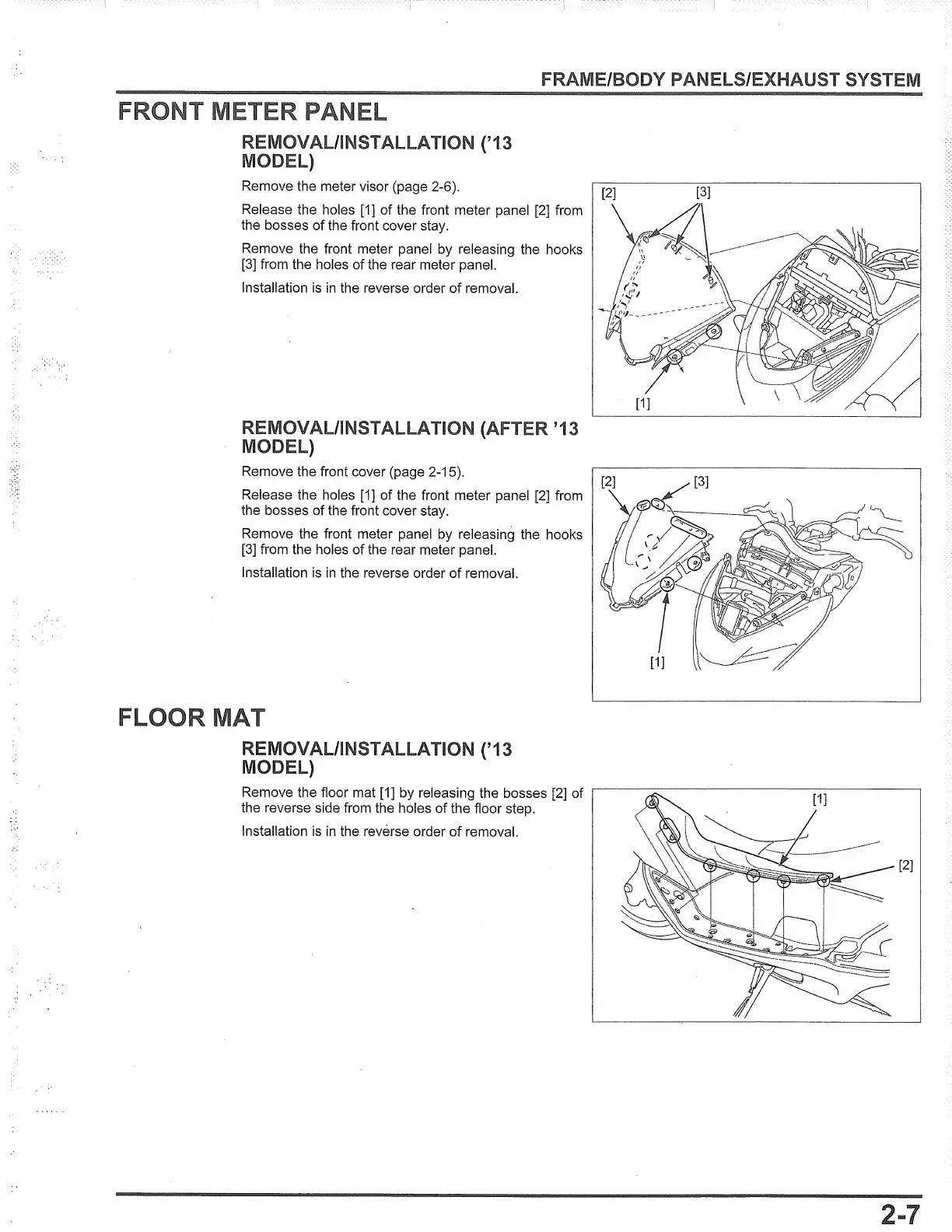

REMOVAL/INSTALLATION
('1.3
MODEL)
Remove the meter visor (page 2-6). [
2
]
Release the holes
[1]
of the front meter panel
[2]
from
the bosses
of
the front cover stay.
Remove the front meter panel by releasing the hooks
[3]
from the holes of the rear meter panel.
Installation
is
in
the reverse order of removal.
REMOVAL/INSTALLATION
MODEL)
Remove the front cover (page 2-15).
'13
Release the holes
[1]
of the front meter panel
[2]
from
the bosses of the front cover stay.
Remove the front meter panel by releasing the hooks
[3]
from the holes of the rear meter panel.
Installation
is
in
the reverse order of removal.
REMOVAL/INSTALLATION ('13
MODEL)
Remove the floor mat
[1]
by releasing the bosses [2] of
the reverse side from the holes of the floor step.
Installation
is
in
the reverse order
of
removal.
PANEL~EXHAUSTSYSTEM
[1]
\
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
