Honda PCX150 2014 User Manual

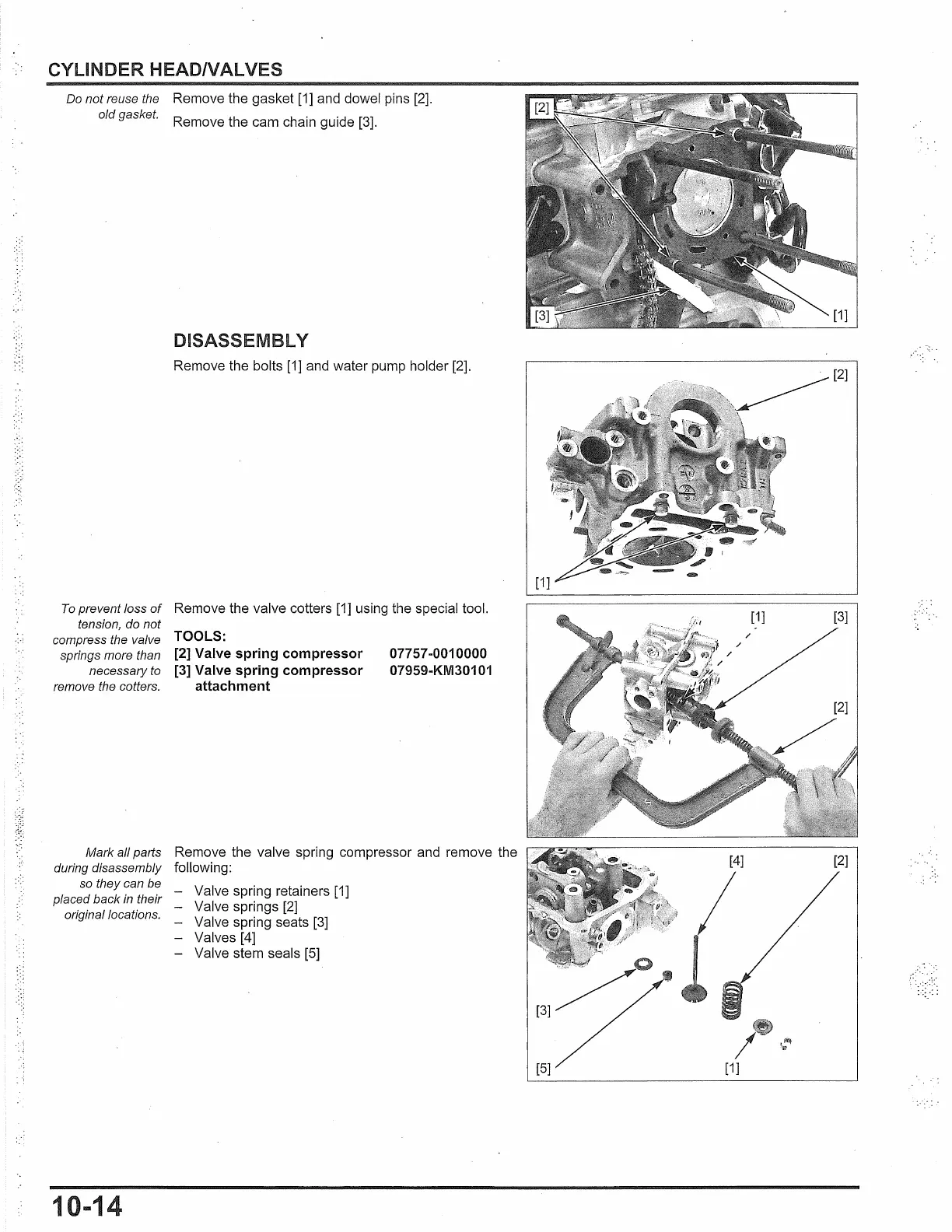

CYLINDER HEADNALVES
Do not reuse the Remove the gasket [1] and dowel pins [2].
old gasket. Remove the cam chain guide [3].
To prevent loss of
tension, do not
compress the valve
springs more than
necessary to
remove the cotters.
Mark all parts
during disassembly
so they can be
placed
back in their
original locations.
10-1
DISASSEMBLY
Remove the bolts [1] and water pump holder [2].
Remove the valve cotters
[1] using the special tool.
TOOLS:
[2] Valve spring
compressor
[3] Valve spring compressor
attachment
07757 -0010000
07959-KM30101
Remove the valve spring compressor and remove the
following:
- Valve spring retainers
[1]
- Valve springs [2]
- Valve spring seats [3]
- Valves [4]
- Valve stem seals
[5]
[2]
[4]
I
., .. ··· 0
[3]/.
[5]
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
