Honda PCX150 2014 User Manual

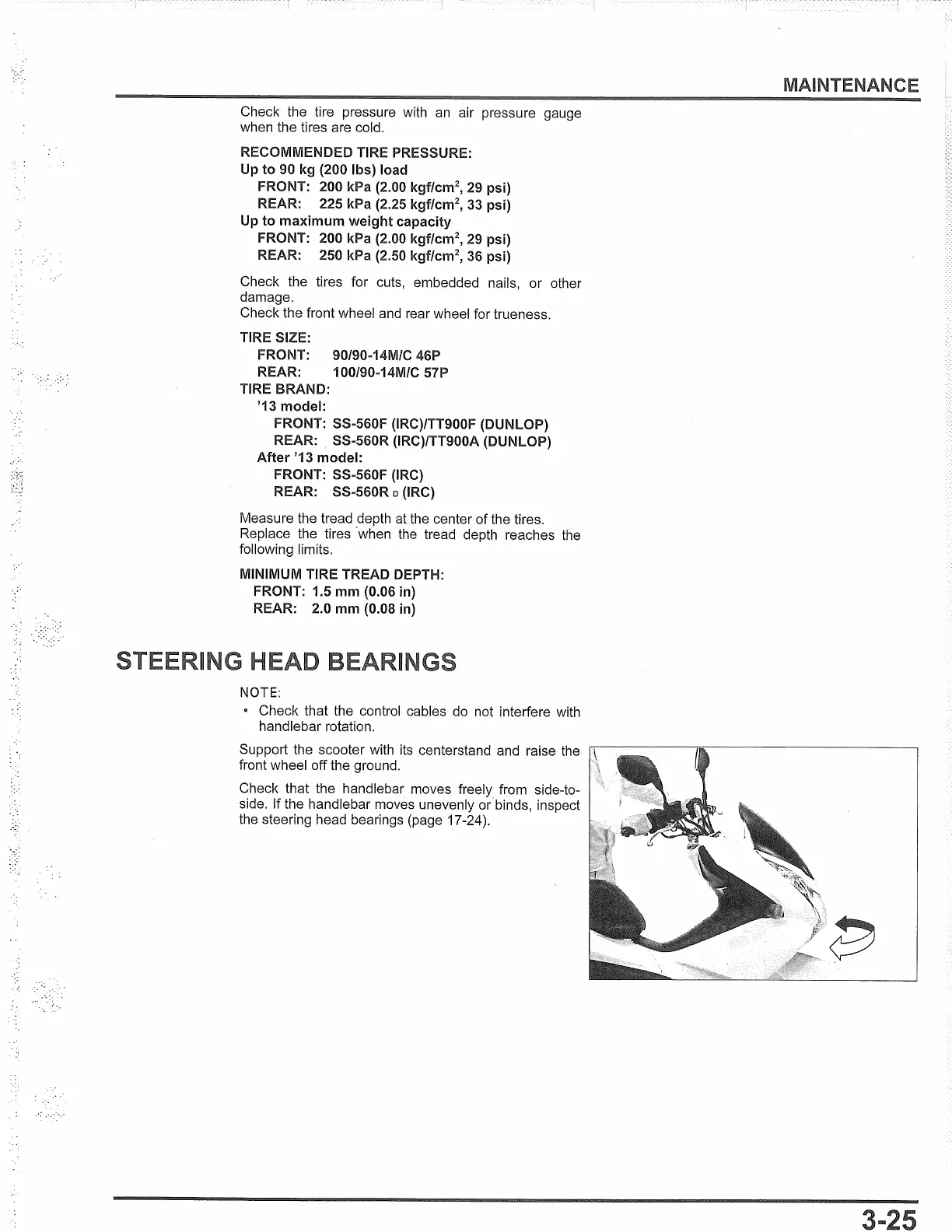

Check the tire pressure with
an
air pressure gauge
when the tires are cold.
RECOMMENDED TIRE PRESSURE:
Up
to 90
kg
(200 lbs) load
FRONT: 200 kPa (2.00 kgf/cm
2
,
29 psi)
REAR: 225 kPa (2.25 kgf/cm
2
,
33 psi)
Up
to maximum weight capacity
FRONT: 200 kPa (2.00 kgf/cm
2
,
29 psi)
REAR: 250 kPa (2.50 kgf/cm
2
,
36 psi)
Check the tires for cuts, embedded nails, or other
damage.
Check the front wheel
and
rear wheel for trueness.
TIRE SIZE:
FRONT: 90/90-14M/C 46P
REAR: 100/90-14M/C 57P
TIRE BRAND:
'13 model:
FRONT: SS-560F (IRC)/TT900F (DUNLOP)
REAR: SS-560R (IRC)/TT900A (DUNLOP)
After '13 model:
FRONT: SS-560F (IRC)
REAR: SS-560R
o
(IRC)
Measure the tread depth
at
the center of the tires.
Replace the tires ·when
the
tread depth reaches the
following limits.
MINIMUM TIRE TREAD DEPTH:
FRONT: 1.5 mm (0.06
in)
REAR: 2.0
mm
(0.08
in)
NOTE:
• Check that the control cables
do
not interfere with
handlebar rotation.
Support the scooter with
its
centerstand and raise
the
front wheel off the ground.
Check that the handlebar moves freely from side-to-
side. If the handlebar moves unevenly or.binds, inspect
the steering head bearings (page 17-24
).
MAINTENANCE

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
