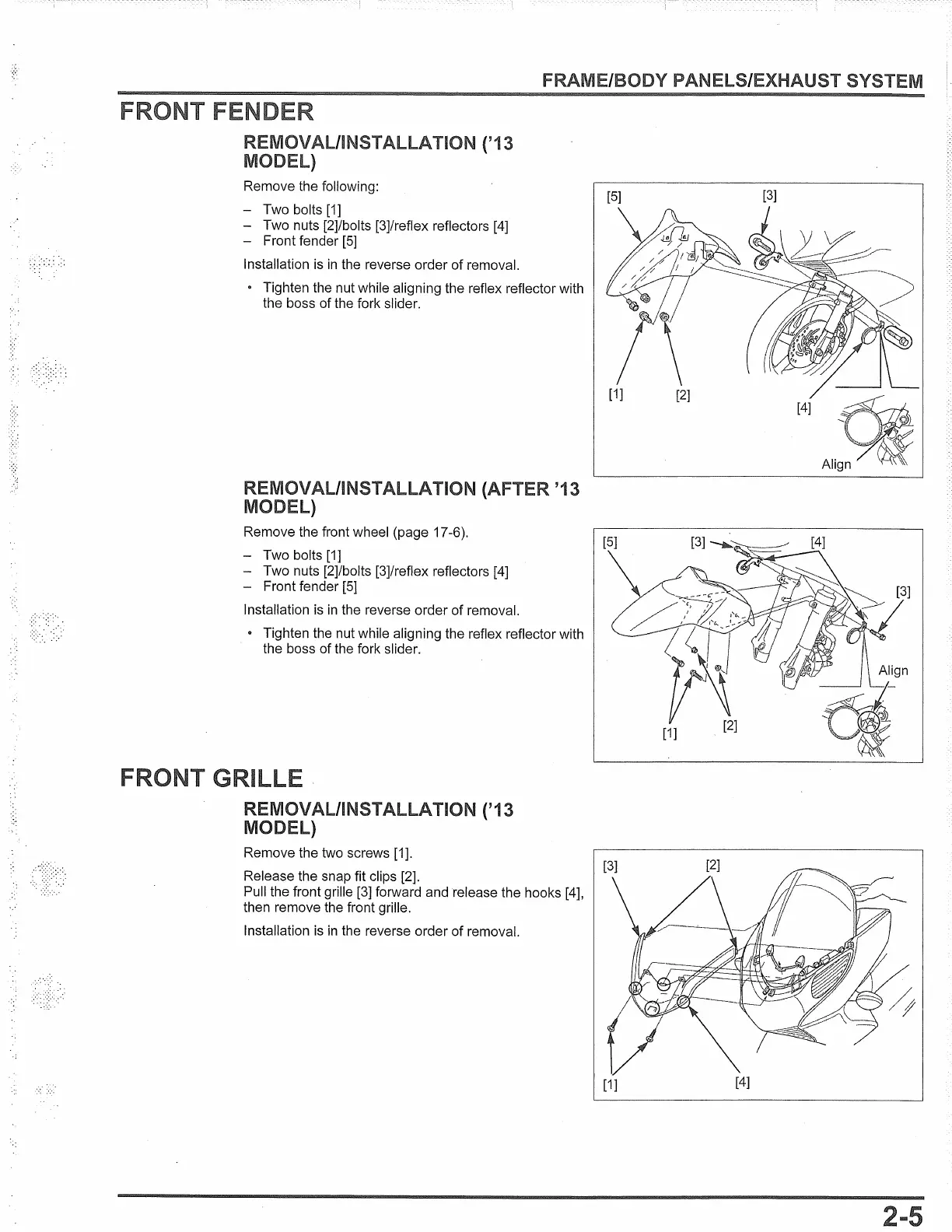

FRAME/BODY PANELS/EXHAUST
REMOVAL/INSTALLATION ('13
MODEL)
Remove the following:
- Two bolts [1]
- Two nuts [2]/bolts [3]/reflex reflectors [4]
- Front fender
[5]
Installation
is
in
the reverse order
of
removal.
• Tighten the nut while aligning the reflex reflector with
the boss of the fork slider.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the front wheel (page 17-6).
- Two bolts [1]
- Two nuts [2]/bolts [3]/reflex reflectors [4]
- Front fender [5]
Installation
is
in
the reverse order
of
removal.
• Tighten the nut while aligning the reflex reflector with
the boss of the fork slider.
REMOVAL/INSTALLATION ('13
MODEL)
Remove the two screws [1].
Release the snap fit clips [2].
Pull the front grille [3] forward and release the hooks [4],
then remove the front grille.
Installation is
in
the reverse order
of
removal.
[5]
[1]
[2]
[1]
[4]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
