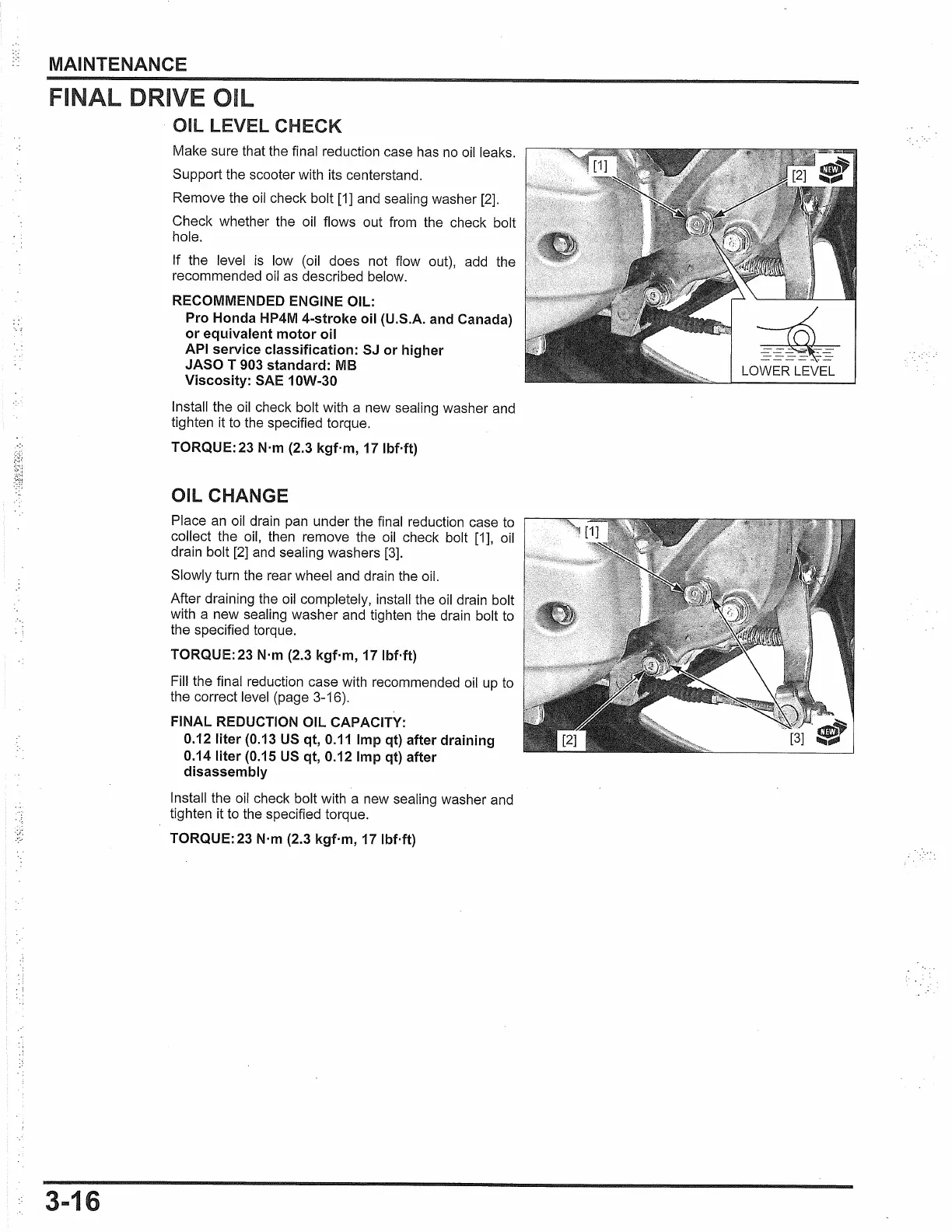

MAINTENANCE
FINAL DRIVE OIL
3-16
Oil
LEVEL
CHECK
Make sure that the final reduction case has
no
oil
leaks.
Support the scooter with its centerstand.
Remove the
oil
check bolt
[1]
and sealing washer [2].
Check whether the oil flows out from the check bolt
hole.
If the level
is
low ( oil does not flow out), add the
recommended
oil
as
described below.
RECOMMENDED ENGINE OIL:
Pro Honda HP4M 4-stroke oil (U.S.A. and Canada)
or equivalent motor oil
API service classification:
SJ
or higher
JASO T 903 standard: MB
Viscosity: SAE 1
OW-30
Install the oil check bolt with a new sealing washer and
tighten it to the specified torque.
TORQUE:23 N·m (2.3 kgf·m, 17
lbHt)
Oil
CHANGE
Place
an
oil drain pan under the final reduction case to
collect the oil, then remove the
oil
check bolt
[1],
oil
drain bolt
[2]
and
sealing washers
[3].
Slowly turn the rear wheel and drain the oil.
After draining the oil completely, install the
oil
drain bolt
with a new sealing washer and tighten the drain bolt to
the specified torque.
TORQUE:23 N·m (2.3 kgf·m, 17 lbMt)
Fill the final reduction case with recommended
oil
up
to
the correct level (page 3-16).
FINAL REDUCTION OIL CAPACITY:
0.12 liter (0.13
US
qt, 0.11 Imp qt) after draining
0.14 liter (0.15
US
qt, 0.12 Imp qt) after
disassembly
Install the
oil
check bolt with a new sealing washer and
tighten it to the specified torque.
TORQUE:23 N·m (2.3 kgf·m, 17
lbHt)
LOWER LEVEL
