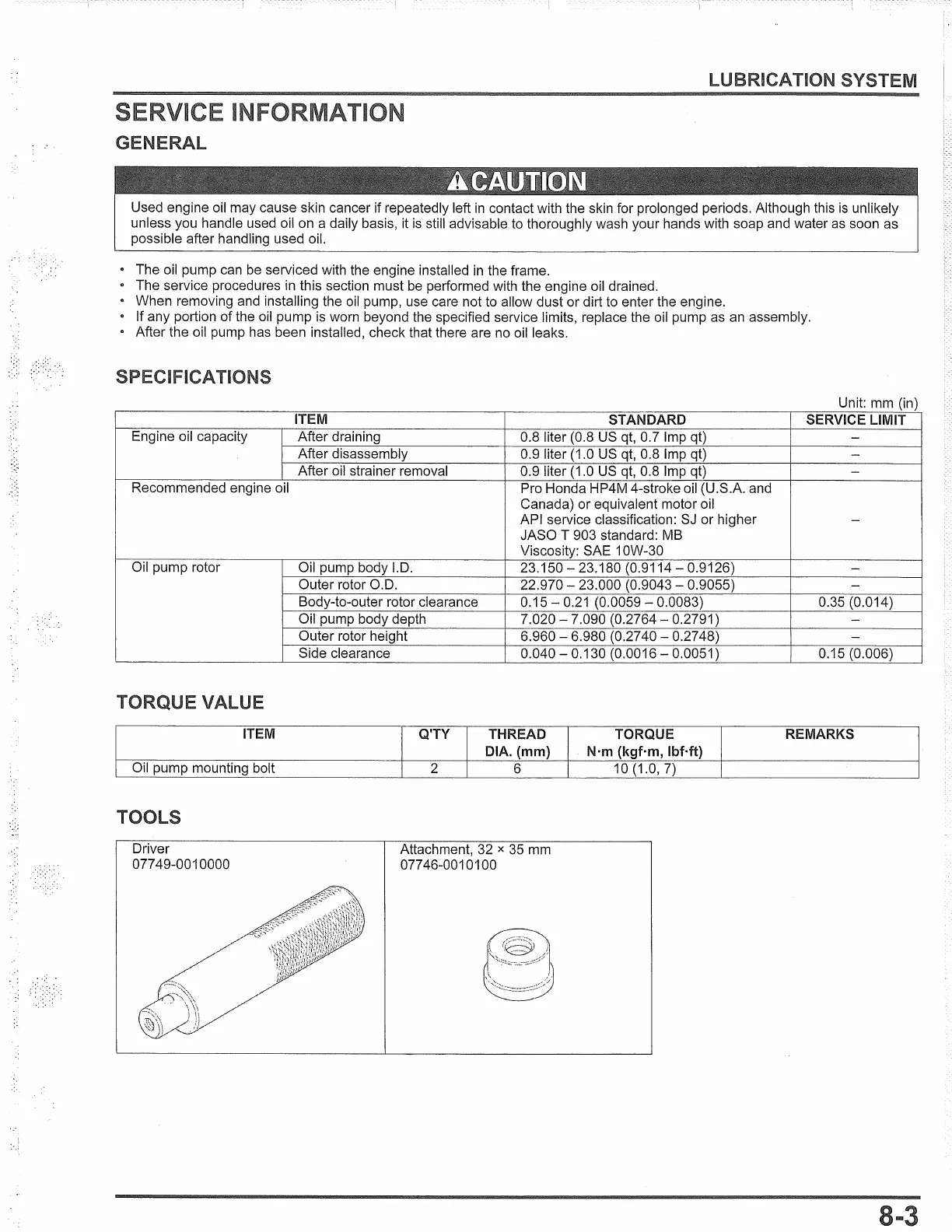

LUBRICATION SYSTEM
Used engine oil may cause skin cancer if repeatedly left
in
contact with the skin for prolonged periods. Although this
is
unlikely
unless you handle used oil on a daily basis, it
is
still advisable to thoroughly wash your hands with soap and water
as
soon as
possible after handling used oil.
• The oil pump can
be
serviced with the engine installed
in
the frame.
• The service procedures
in
this section must
be
performed with the engine oil drained.
• When removing and installing the oil pump, use care not to allow dust or dirt to enter the engine.
• If any portion of the
oil
pump is worn beyond the specified service limits, replace the oil pump as an assembly.
• After the oil pump has been installed, check that there are
no
oil leaks.
SPECIFICATIONS
Engine oil capacity
Recommended engine oil
Oil pump rotor
TORQUE VALUE
ITEM
Oil pump mounting bolt
TOOLS
Driver
07749-0010000
ITEM
STANDARD
After draining
0.8 liter (0.8
US
qt, 0.7 Imp qt)
After disassembly
0.9 liter (1.0
US
qt,
0.8 Imp qt)
After oil strainer removal
0.9 liter (1.0
US
qt, 0.8 Imp qt)
Pro Honda HP4M 4-stroke oil (U.S.A. and
Canada) or equivalent motor oil
API service classification:
SJ
or higher
JASO
T 903 standard: MB
Viscosity: SAE 1
OW-30
Oil pump body
1.0.
23.150 - 23.180 (0.9114 - 0.9126)
Outer rotor
0.0.
22.970 - 23.000 (0.9043 - 0.9055)
Body-to-outer rotor clearance
0.15 -
0.21
(0.0059 - 0.0083)
Oil pump body depth
7.020 - 7.090 (0.2764 - 0.2791)
Outer rotor height
6.960 - 6.980 (0.2740 - 0.2748)
Side clearance
0.040-
0.130
(0.0016-0.0051)
Q'TY
THREAD TORQUE
DIA. (mm) N·m (kgf·m,
lbMt)
2
6
10(1.0,7)
Attachment, 32 x
35
mm
07746-0010100
Unit: mm (in)
SERVICE LIMIT
-
-
-
-
-
-
0.35 (0.014)
-
-
0.15 (0.006)
REMARKS
To Next Page
