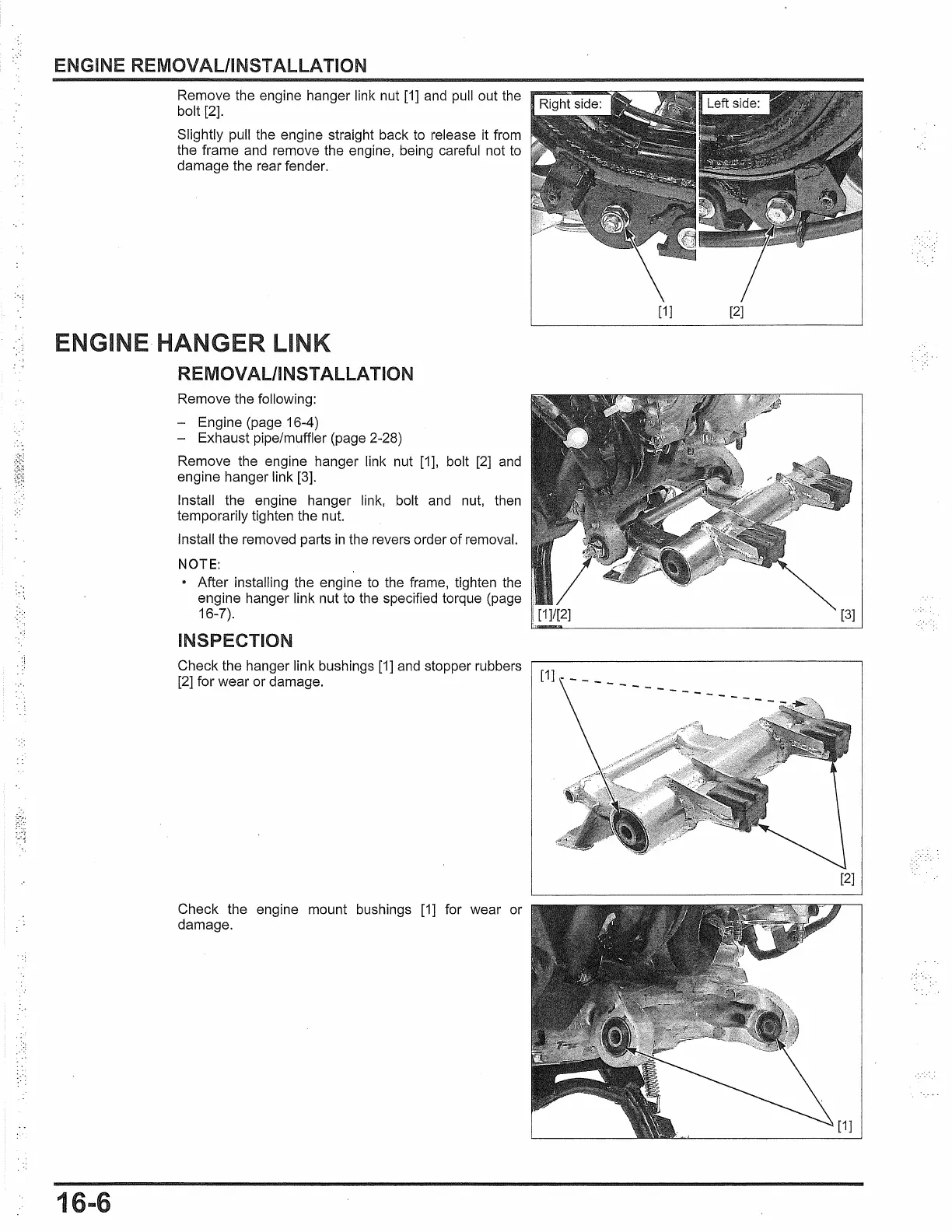

ENGINE REMOVAL/INSTALLATION
Remove the engine hanger link nut [1] and pull out the
bolt
[2].
Slightly pull the engine straight back to release it from
the frame
and remove the engine, being careful not to
damage the rear fender.
NGINE HANG R LINK
REMOVAL/INSTALLATION
Remove the following:
- Engine (page
16-4)
- Exhaust pipe/muffler (page 2-28)
Remove the engine hanger link nut [1], bolt [2] and
engine hanger link [3].
Install the engine hanger link, bolt
and nut, then
temporarily tighten the nut.
Install the removed parts
in the revers order of removal.
NOTE:
[1] [2]
• After installing the engine to the frame, tighten the
engine hanger link nut to the specified torque (page
16-7). I r111r21
[3]
16-6
INSPECTION
Check the hanger link bushings [1] and stopper rubbers
[2] for wear or damage.
Check the engine mount bushings
[1] for wear or
damage.
=·· _..___ ______________ ___J
[1] - - -
----------
---
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
