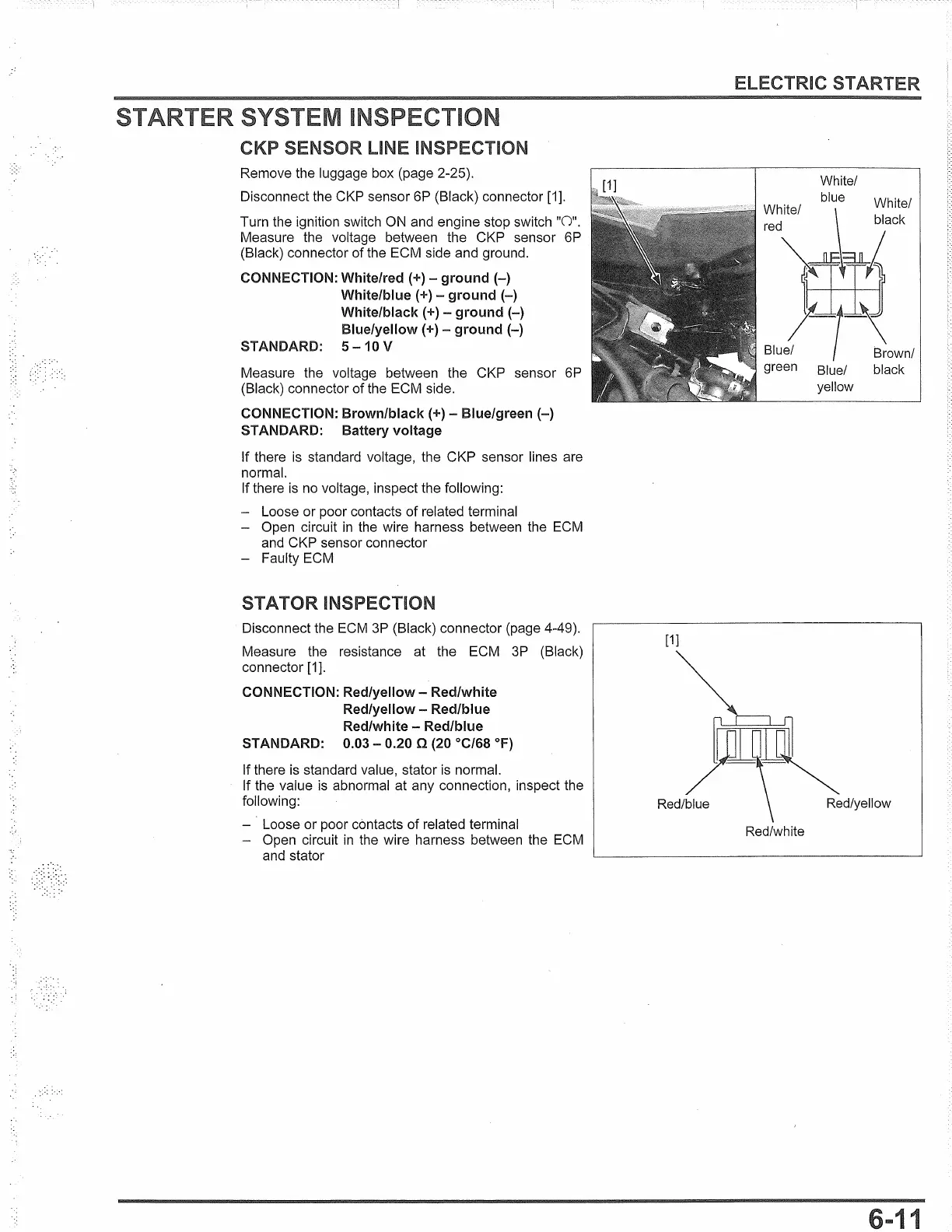

CKP LINE INSPECTION
Remove the luggage box (page 2-25).
Disconnect the CKP sensor
6P
(Black) connector [1].
Turn the ignition switch
ON
and engine stop switch
"0".
Measure the voltage between the CKP sensor
6P
(Black) connector of the ECM side and ground.
CONNECTION: White/red
(+)
- ground
(-)
White/blue(+) - ground
(-)
White/black(+) - ground
(-)
Blue/yellow(+) - ground
(-)
STANDARD:
5-10
V
Measure the voltage between the CKP sensor
6P
(Black) connector of the ECM side.
CONNECTION: Brown/black(+) - Blue/green
(-)
STANDARD: Battery voltage
If there
is
standard voltage, the CKP sensor lines are
normal.
If there
is
no
voltage, inspect the following:
- Loose or poor contacts of related terminal
- Open circuit
in
the wire harness between the
ECM
and CKP sensor connector
- Faulty ECM
STATOR INSPECTION
Disconnect the
ECM
3P
(Black) connector (page 4-49).
Measure the resistance at the ECM
3P
(Black)
connector [1].
CONNECTION: Red/yellow - Red/white
Red/yellow - Red/blue
Red/white - Red/blue
STANDARD:
0.03-
0.20 n
(20
°c1sa
°F)
If there
is
standard value, stator
is
normal.
If the value
is
abnormal at any connection, inspect the
following:
- · Loose or poor contacts
of
related terminal
- Open circuit
in
the wire harness between the
ECM
and stator
[1]
ELECTRIC
White/
blue
Wh'
1
:~~~tT!{~
Blu;;~1own/
green Blue/ black
yellow
Red/white
1
