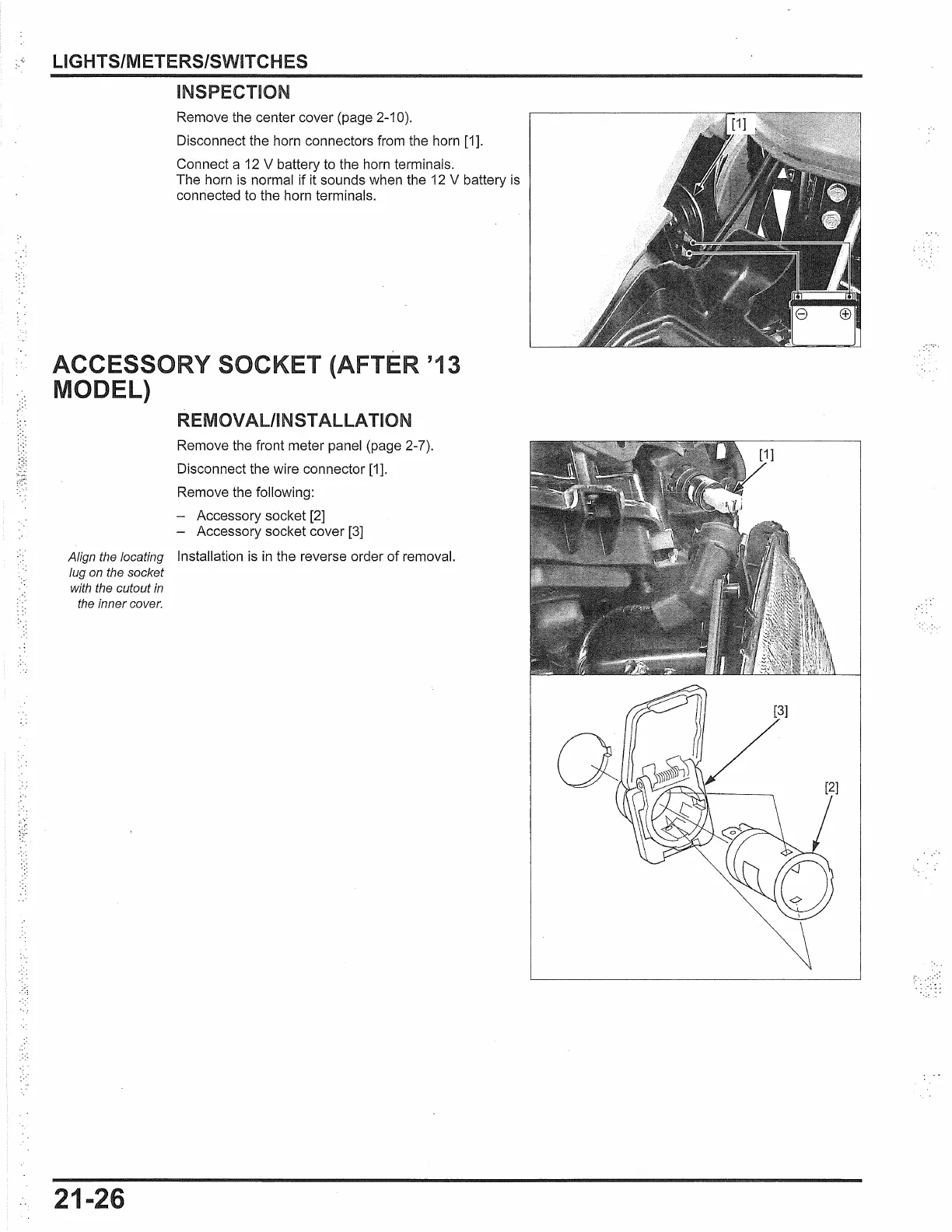

LIGHTS/METERS/SWITCHES
INSPECTION
Remove the center cover (page 2-10).
Disconnect the horn connectors from the horn [1].
Connect a 12 V battery to the horn terminals.
The horn
is
normal if it sounds when the 12 V battery
is
connected to the horn terminals.
ACCESSORY SOC
MODEL)
(AFTER '13
REMOVAL/INSTALLATION
Remove the front meter panel (page 2-7).
Disconnect the wire connector [1].
Remove the following:
- Accessory socket [2]
- Accessory socket cover
[3]
Align the locating Installation
is
in
the reverse order of removal.
lug on the socket
with the cutout
in
the inner cover.
21-26
