Honda PCX150 2014 User Manual

FUEL SYSTEM
IACV
7-22

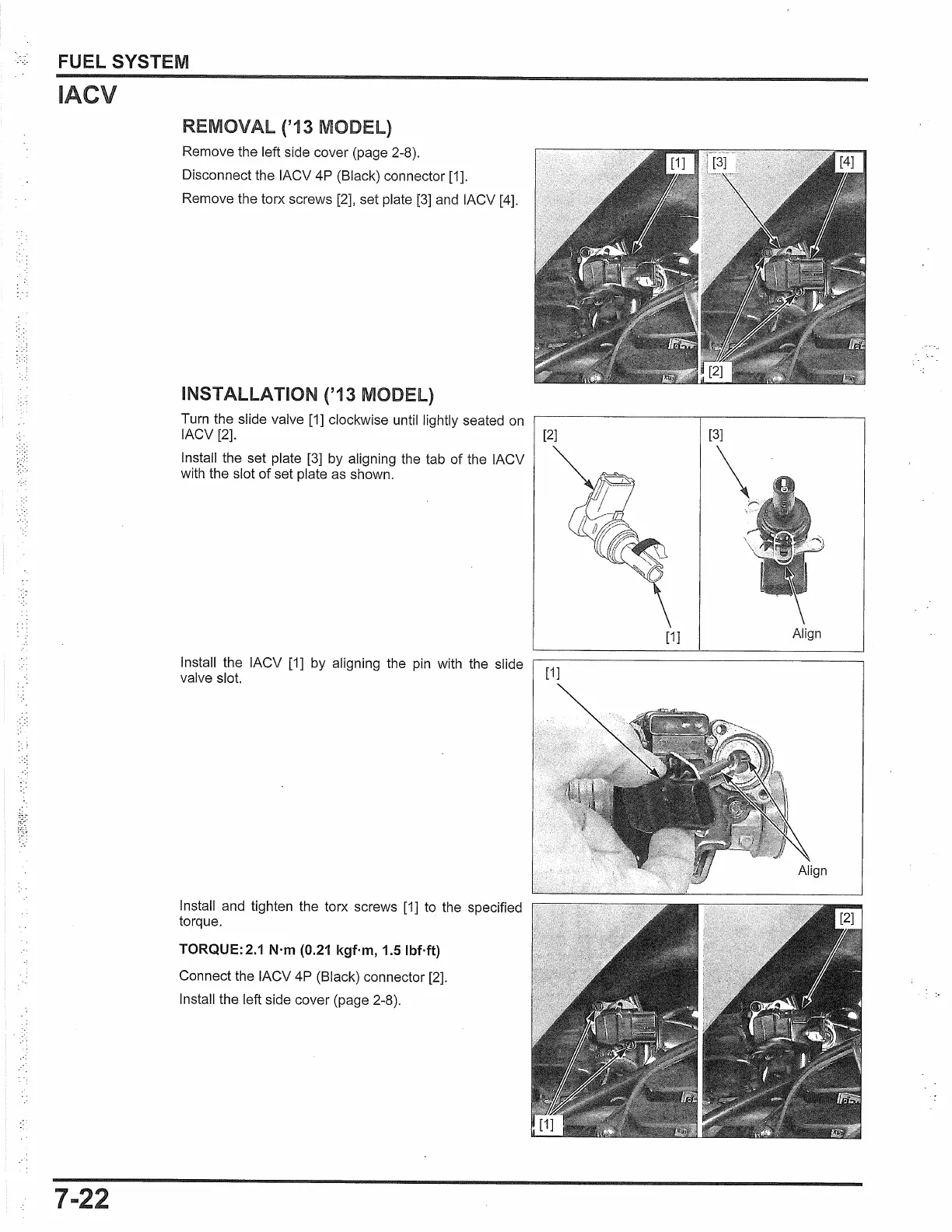

REMOVAL ('13 MODEL)
Remove the left side cover (page 2-8).
Disconnect the IACV
4P
(Black) connector
[1].
Remove the torx screws [2], set plate [3] and IACV [4].
INSTALLATION ('13 MODEL)
Turn the slide valve [1] clockwise until lightly seated on
IACV
[2].
[2]
Install the set plate [3] by aligning the tab
of
the IACV
with the slot
of
set plate as shown.
Install the IACV [1] by aligning the pin with the slide
valve slot.
Install and tighten the torx screws [1] to the specified
torque.
TORQUE:2.1 N·m
(0.21
kgf·m, 1.5 lbMt)
Connect the IACV
4P
(Black) connector [2].
Install the left side cover (page 2-8).
[1]
[1]
Align

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
