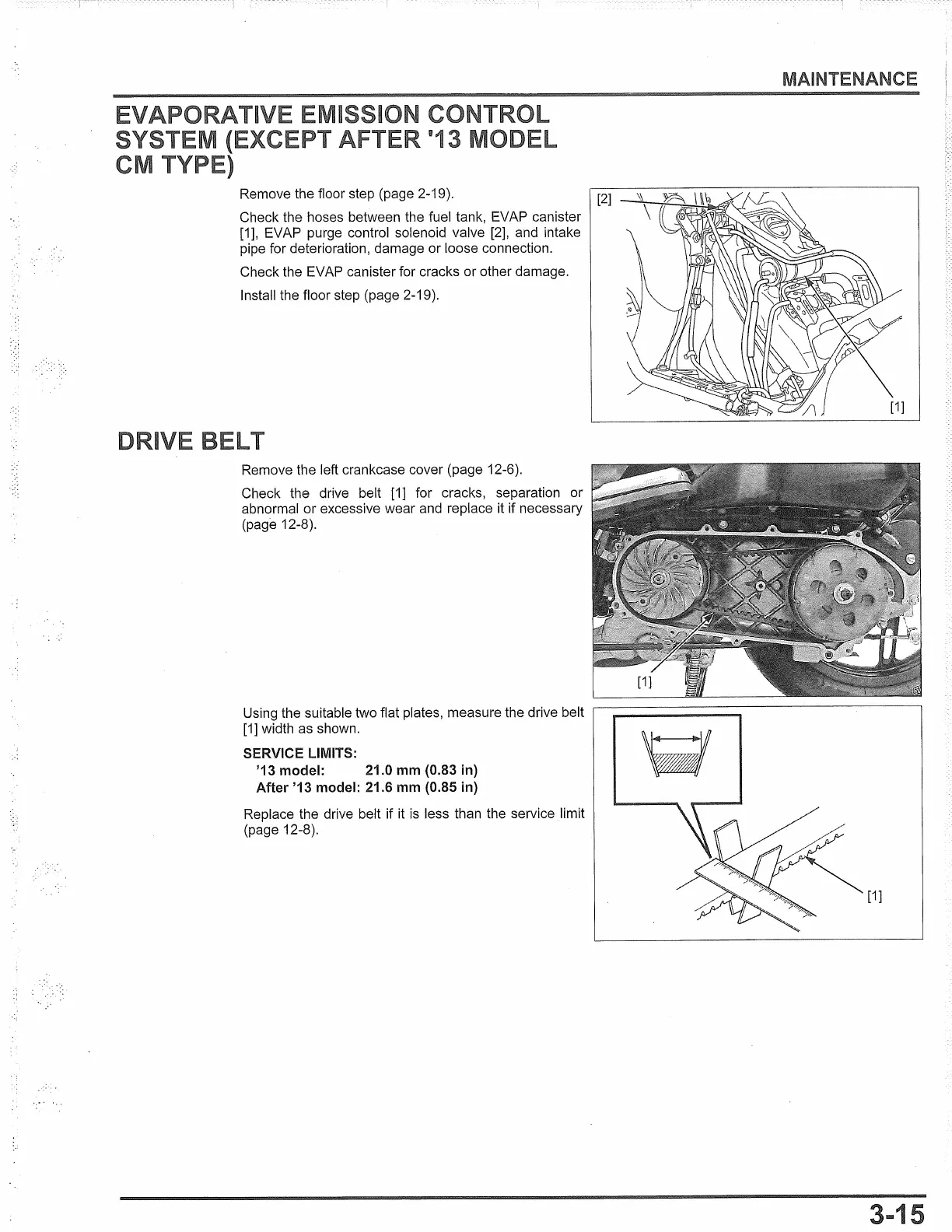

Remove the floor step (page 2-19).
Check the hoses between the fuel tank, EVAP canister
[1], EVAP purge control solenoid valve [2], and intake
pipe for deterioration, damage or loose connection.
Check the EVAP canister for cracks or other damage.
Install the floor step (page 2-19).
Remove the left crankcase cover (page 12-6).
Check the drive belt
[1]
for cracks, separation or
abnormal or excessive wear
and
replace it if necessary
(page 12-8).
Using the suitable two flat plates, measure the drive belt
[1]
width
as
shown.
SERVICE LIMITS:
'13 model: 21.0
mm
(0.83 in)
After '13 model: 21.6
mm
(0.85 in)
Replace the drive belt if it
is
less than the service limit
(page 12-8).
MAINTENANCE
[2]
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
