Honda PCX150 2014 User Manual

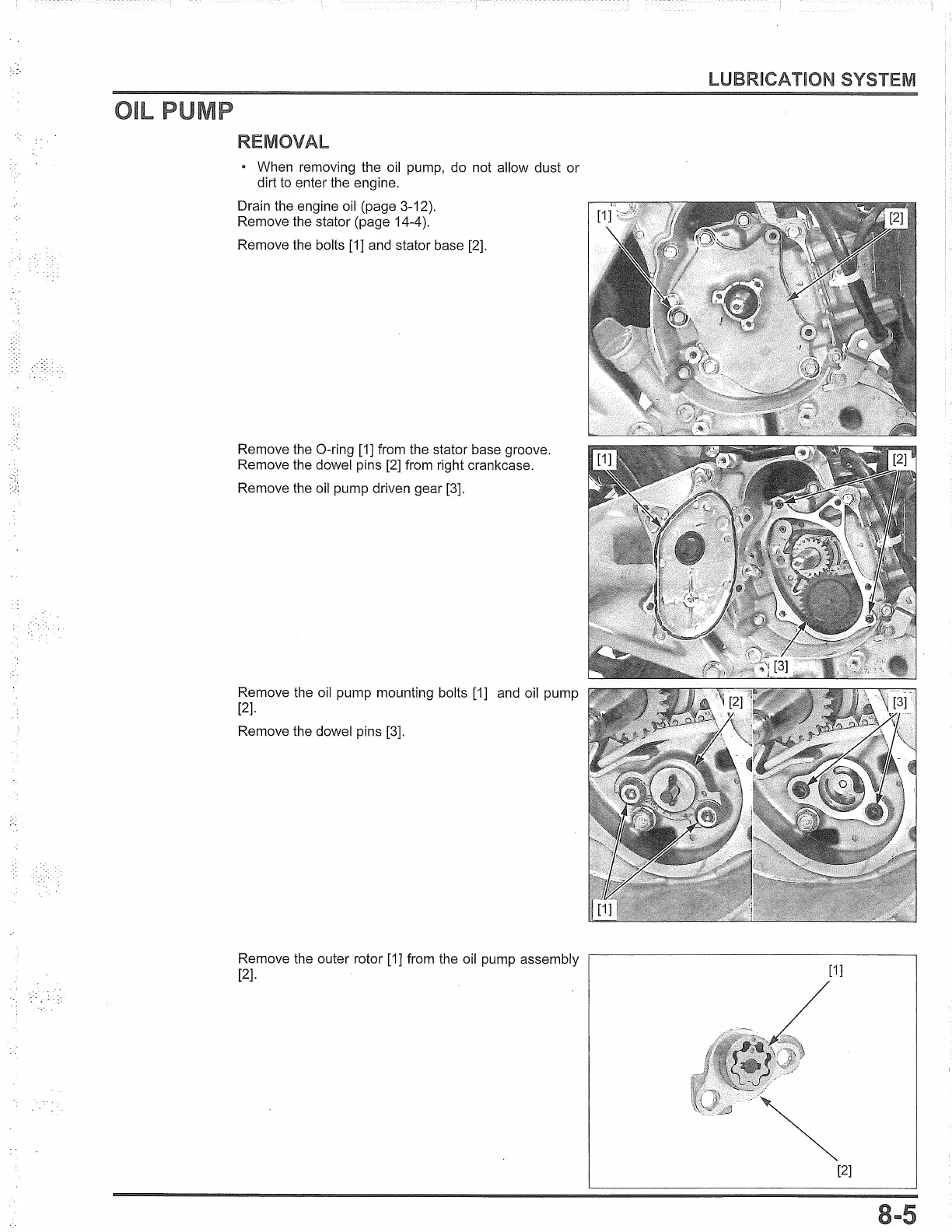

• When removing the oil pump, do not allow dust or
dirt
to
enter the engine.
Drain the engine oil (page 3-12).
Remove the stator (page 14-4
).
Remove the bolts [1] and stator base [2].
Remove the 0-ring
[1]
from the stator base groove.
Remove the dowel pins [2] from right crankcase.
Remove the oil pump driven gear [3].
Remove the oil pump mounting bolts
[1]
and oil pump
[2].
Remove the dowel pins [3].
Remove the outer rotor
[1]
from the oil pump assembly
[2].
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
