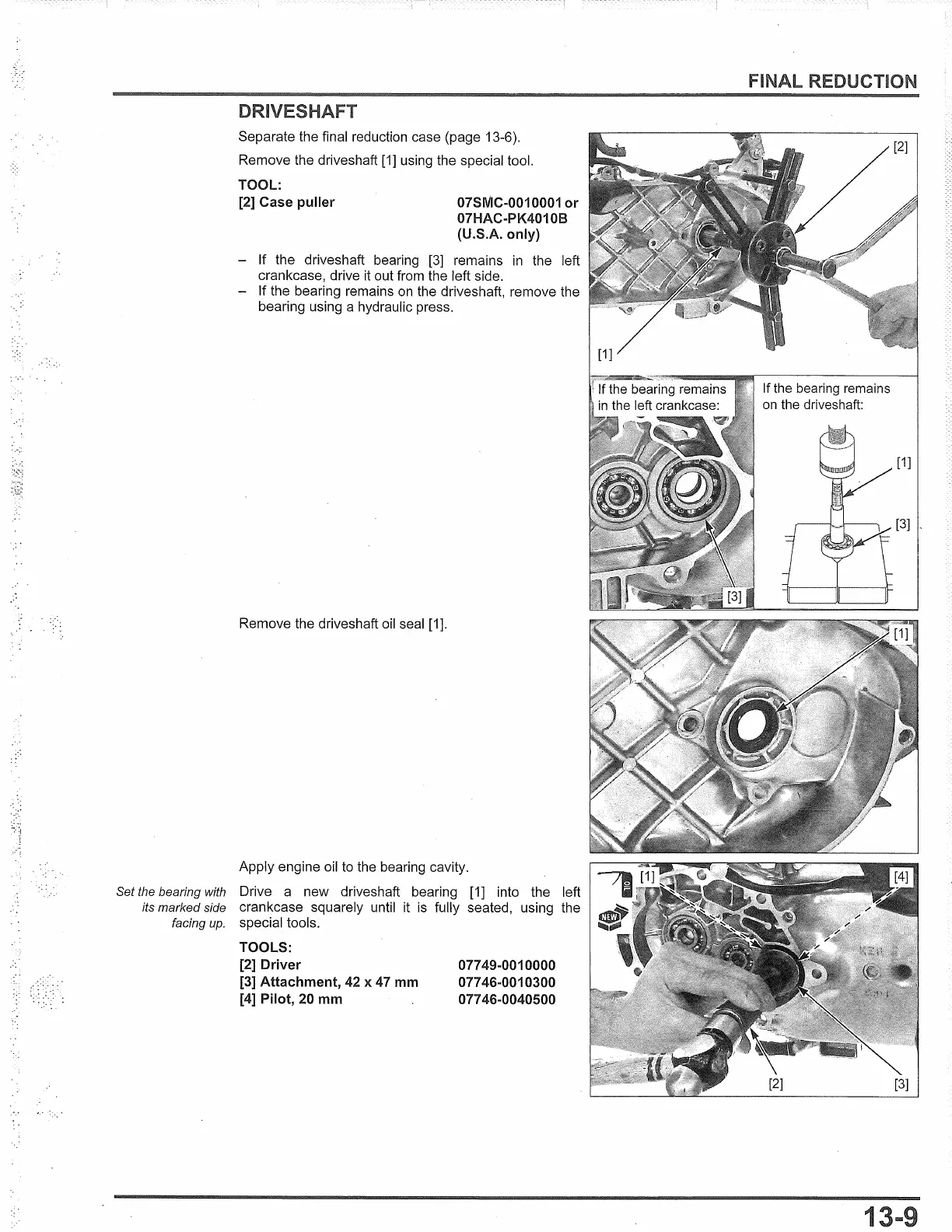

Separate the final reduction case (page 13-6).
Remove the driveshaft
[1]
using the special tool.
TOOL:
[2] Case puller
07SMC-0010001
or
07HAC-PK401
OB
(U.S.A. only)
- If the driveshaft bearing
[3]
remains
in
the left
crankcase, drive it out from the left side.
- If the bearing remains
on
the driveshaft, remove the
bearing using a hydraulic press.
Remove the driveshaft
oil
seal [1].
Apply engine oil to the bearing cavity.
Set the bearing with
Drive a new driveshaft bearing [1] into the left
its marked side
crankcase squarely until
it
is
fully seated, using the
facing
up.
special tools.
TOOLS:
[2] Driver
[3] Attachment, 42
x
47 mm
[4] Pilot, 20 mm
07749-0010000
07746-0010300
077 46-0040500
FINAL REDUCTION
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
