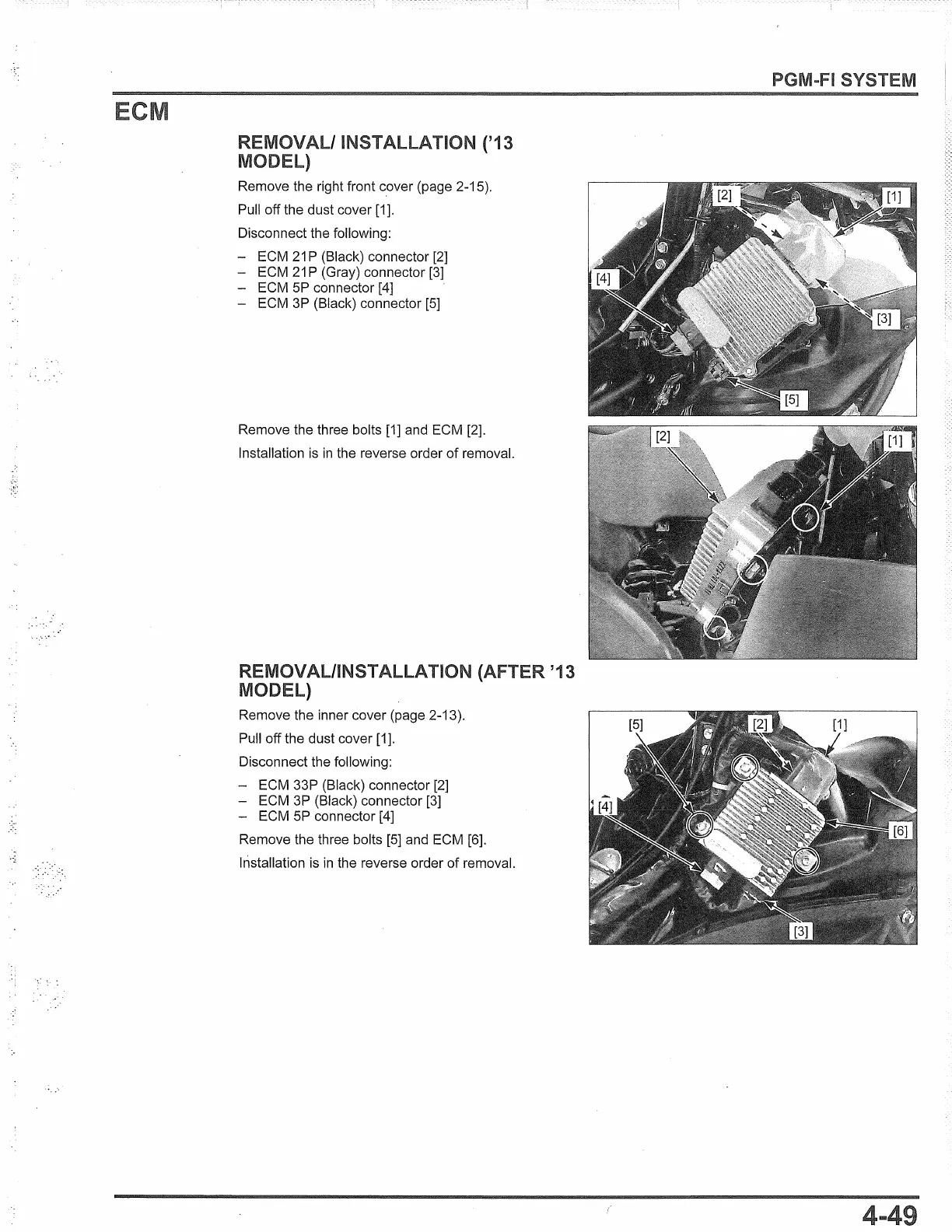

REMOVAL/ INSTALLATION ('13
MODEL)
Remove the right front c.over (page 2-15).
Pull off the dust cover [1].
Disconnect the following:
- ECM
21 P (Black) connector [2]
- ECM 21 P (Gray) connector [3]
- ECM 5P connector [4]
- ECM
3P (Black) connector [5]
Remove the three bolts [1] and ECM [2].
Installation
is in the reverse order of removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the inner cover (page 2-13).
Pull off the dust cover [1].
Disconnect the following:
- ECM 33P (Black) connector [2]
- ECM 3P (Black) connector [3]
- ECM 5P connector [4]
Remove the three bolts
[5] and ECM [6].
Installation is
in the reverse order of removal.
PGM .. FI SYSTEM

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
