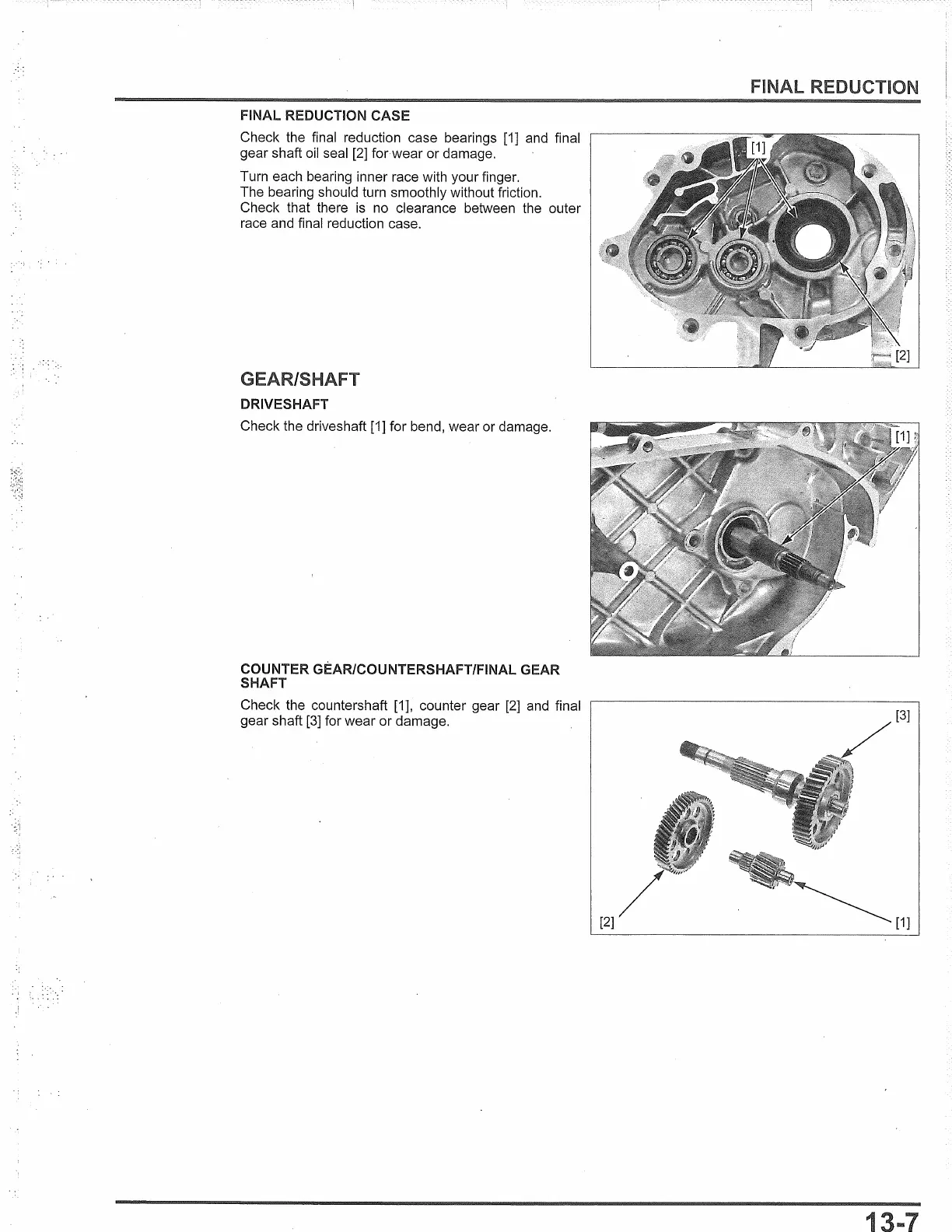

FINAL REDUCTION CASE
Check the final reduction case bearings
[1]
and
final
gear shaft
oil
seal
[2]
forwear
or damage.
Turn each bearing inner race with your finger.
The bearing should turn smoothly without friction.
Check that there
is
no
clearance between the outer
race and final reduction case.
GEAR/SHAFT
DRIVES HAFT
Check the driveshaft [1] for bend, wear or damage.
COUNTER GEAR/COUNTERSHAFT/FINAL GEAR
SHAFT
Check the countershaft [1], counter gear
[2]
and final
gear shaft
[3]
for wear or damage.
FINAL REDUCTION
~[1]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
