Honda PCX150 2014 User Manual

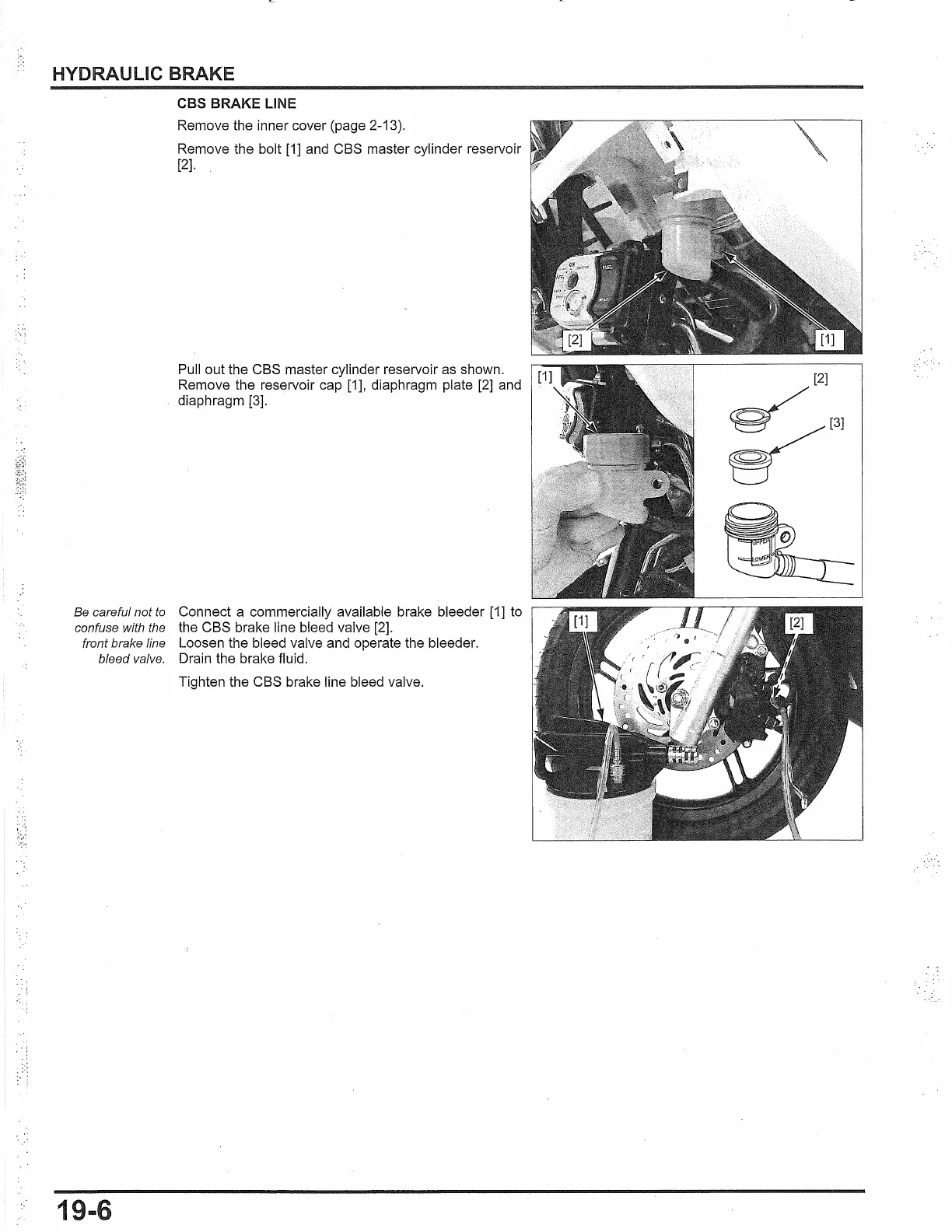

HYDRAULIC BRAKE
CBS BRAKE LINE
Remove the inner cover (page 2-13).
Remove the bolt [1] and CBS master cylinder reservoir
[2].
Pull out the CBS master cylinder reservoir as shown.
Remove the reservoir cap [1], diaphragm plate [2] and
diaphragm [3].
Be careful not to Connect a commercially available brake bleeder [1] to
confuse with the the CBS brake line bleed valve [2].
front brake line Loosen the bleed valve and operate the bleeder.
bleed valve. Drain the brake fluid.
Tighten the CBS brake line bleed valve.
19-6
[2]
~(3]
~

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
