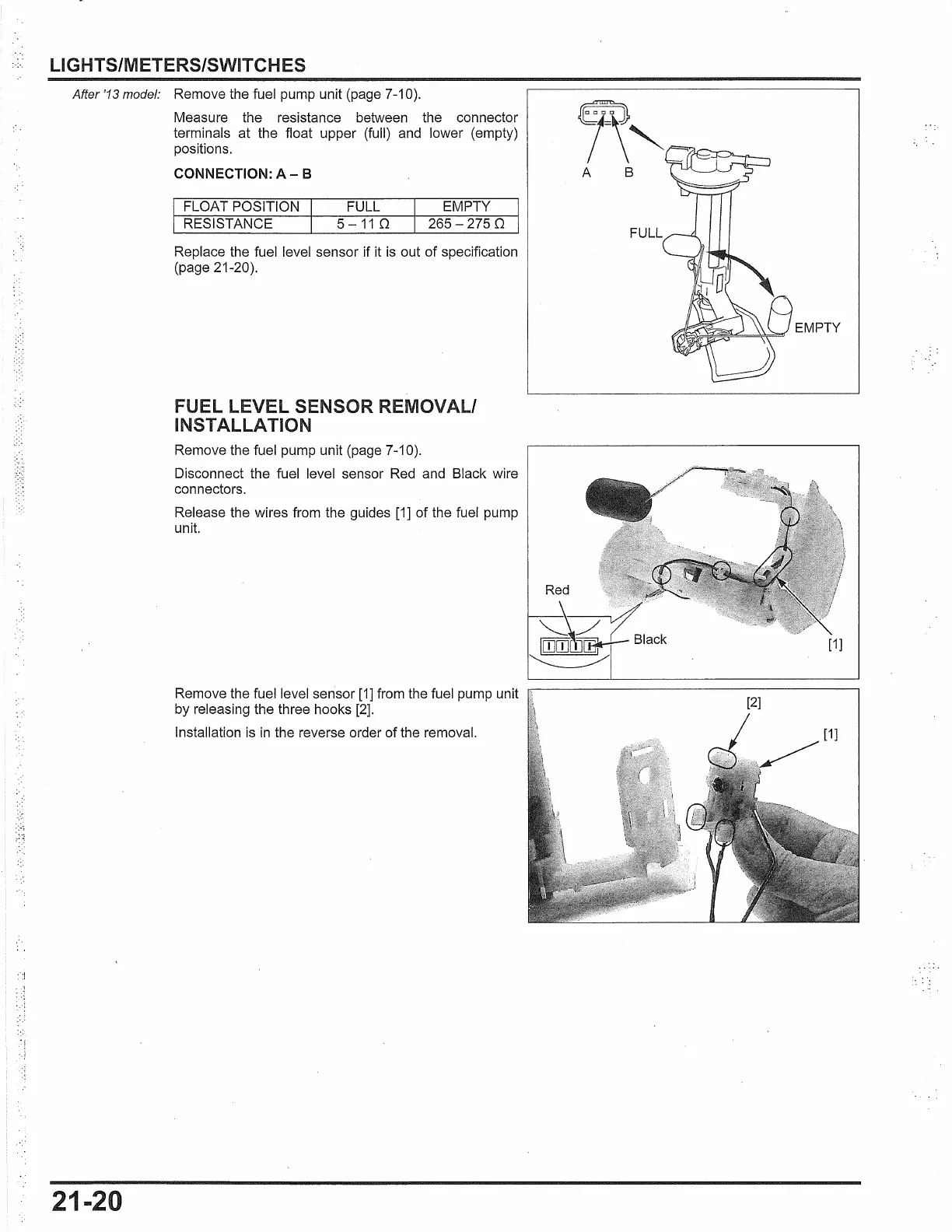

LIGHTS/METERS/SWITCHES
After '13 model: Remove the fuel pump unit (page 7-10).
21-20
Measure the resistance between the connector
terminals at the float upper (full) and lower (empty)
positions.
CONNECTION: A- B
FLOAT POSITION
FULL
EMPTY
RESISTANCE
5-11 n 265-275 n
Replace the fuel level sensor if it is out of specification
(page 21-20).
FUEL LEVEL SENSOR REMOVAL/
INSTALLATION
Remove the fuel pump unit (page 7-10).
Disconnect the fuel level sensor Red and Black wire
connectors.
Release the wires from the guides
[1] of the fuel pump
unit.
Remove the fuel level sensor
[1] from the fuel pump unit
by releasing the three hooks [2].
Installation is
in the reverse order of the removal.
Red
~~lack
~
[1]
[2]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
