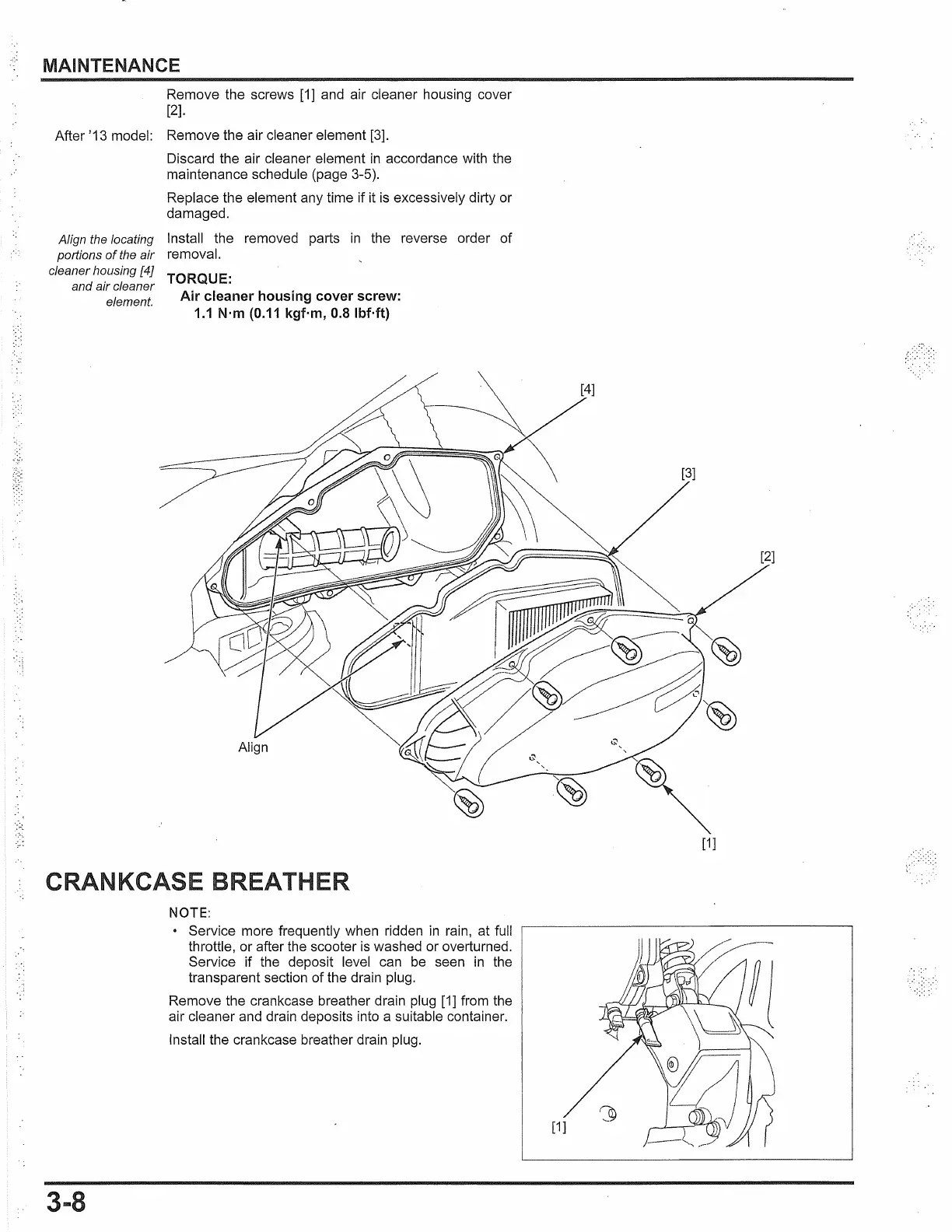

MAINTENANCE
Remove the screws [1] and air cleaner housing cover
[2].
After '13 model: Remove the air cleaner element [3].
Discard the air cleaner element
in accordance with the
maintenance schedule (page 3-5).
Replace the element any time if it is excessively dirty or
damaged.
Align the locating Install the removed parts in the reverse order of
portions of the air removal.
cleaner housing [4] TORQUE:
and air cleaner
element.
Air cleaner housing cover screw:
1.1 N·m (0.11 kgf·m, 0.8 lbf·ft)
CRANKCASEBREATH R
3-8
NOTE:
• Service more frequently when ridden in rain, at full
throttle, or after the scooter
is washed or overturned.
Service if the deposit level can
be seen in the
transparent section of the drain plug.
Remove the crankcase breather drain plug
[1] from the
air cleaner and drain deposits into a suitable container.
Install the crankcase breather drain plug.
[1]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
