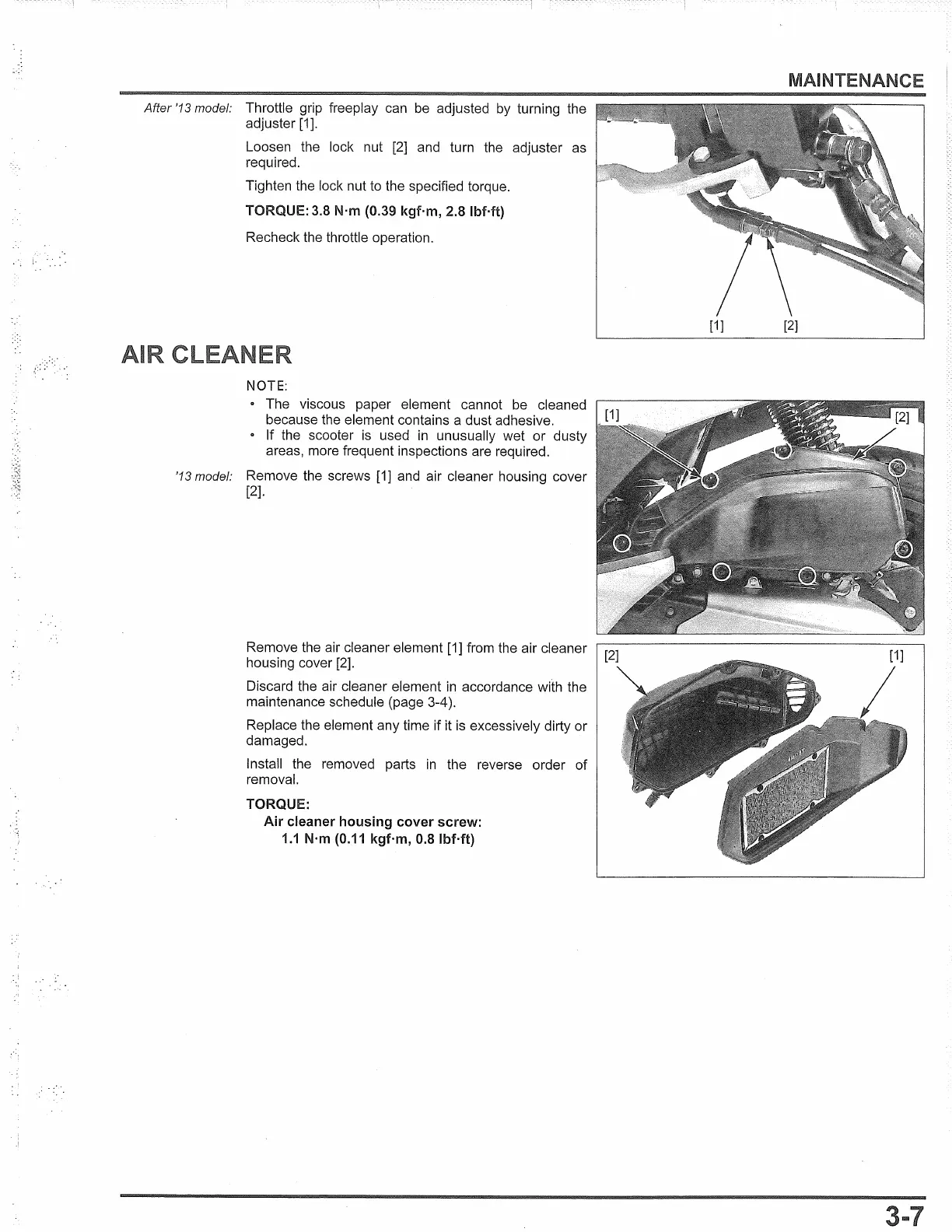

Honda PCX150 2014 User Manual

After
'13 model:
Throttle grip freeplay
can
be
adjusted
by
turning the
adjuster
[1].
Loosen the lock nut
[2]
and turn the adjuster
as
required.
Tighten the lock nut to the specified torque.
TORQUE: 3.8 N·m (0.39 kgf·m, 2.8 lbMt)
Recheck the throttle operation.
NOTE:
• The viscous paper element cannot
be
cleaned
because the element contains a dust adhesive.
• If the scooter
is
used
in
unusually wet or dusty
areas, more frequent inspections are required.
'13 model:
Remove the screws
[1]
and air cleaner housing cover
[2].
Remove the air cleaner element [1] from the air cleaner
housing cover
[2].
Discard the air cleaner element
in
accordance with the
maintenance schedule (page 3-4
).
Replace the element any time if it
is
excessively dirty or
damaged.
Install the removed parts
in
the reverse order of
removal.
TORQUE:
Air cleaner housing cover screw:
1.1
N·m (0.11 kgf·m, 0.8
lbMt)
MAINTENANCE

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
