Honda PCX150 2014 User Manual

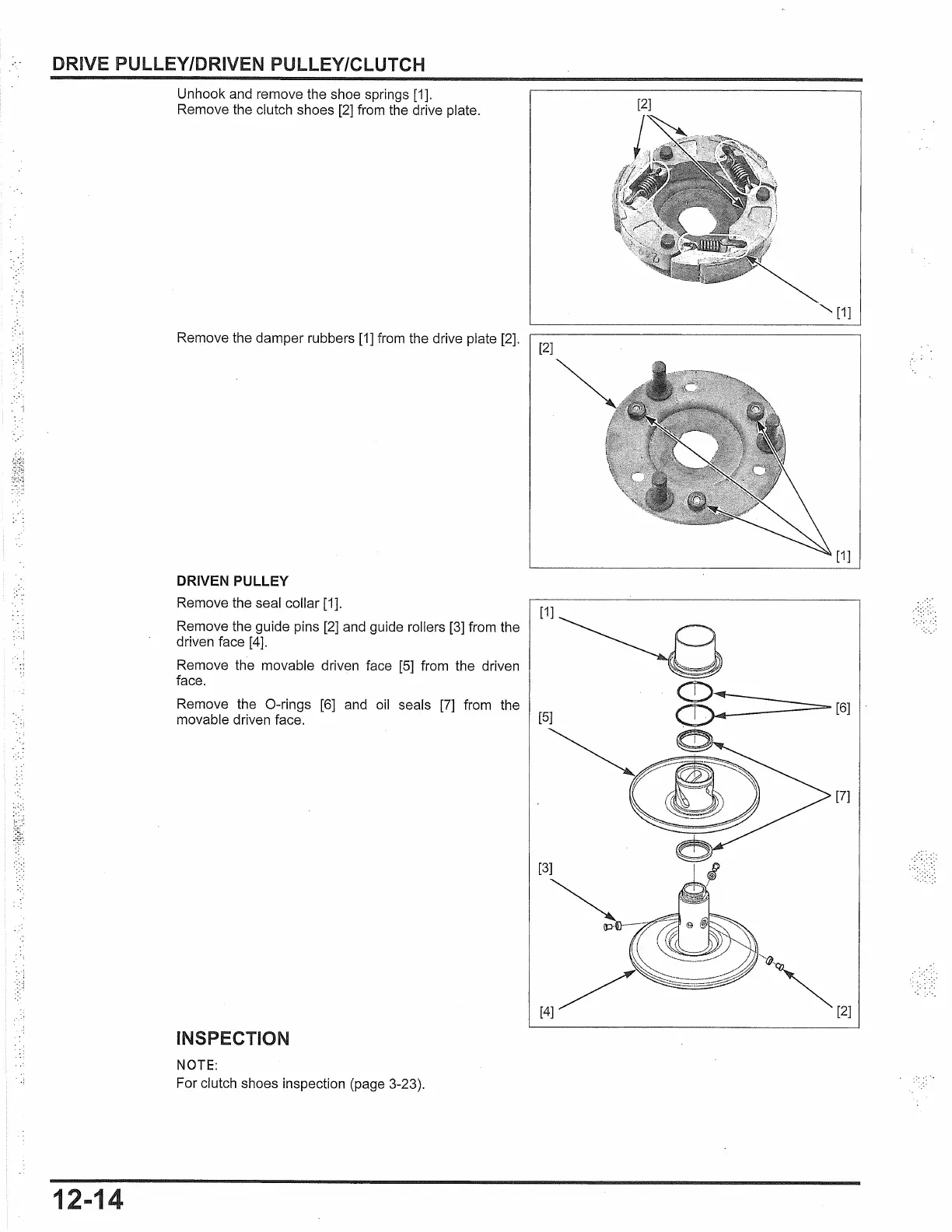

DRIVE PULLEY/DRIVEN PULLEY/CLUTCH
Unhook and remove the shoe springs [1].
Remove the clutch shoes
[2]
from the drive plate.
Remove the damper rubbers
[1]
from the drive plate [2].
DRIVEN PULLEY
Remove the seal collar [1].
Remove the guide pins
[2]
and guide rollers
[3]
from the
driven face [4].
Remove the movable driven face [5] from the driven
face.
[2]
[1]
Remove the 0-rings [6] and
oil
seals
[7]
from the
movable driven face.
[5]
12-14
INSPECTION
NOTE:
For clutch shoes inspection (page 3-23).
[4]
[2]
"-..
[1]
[1]
[7]

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
