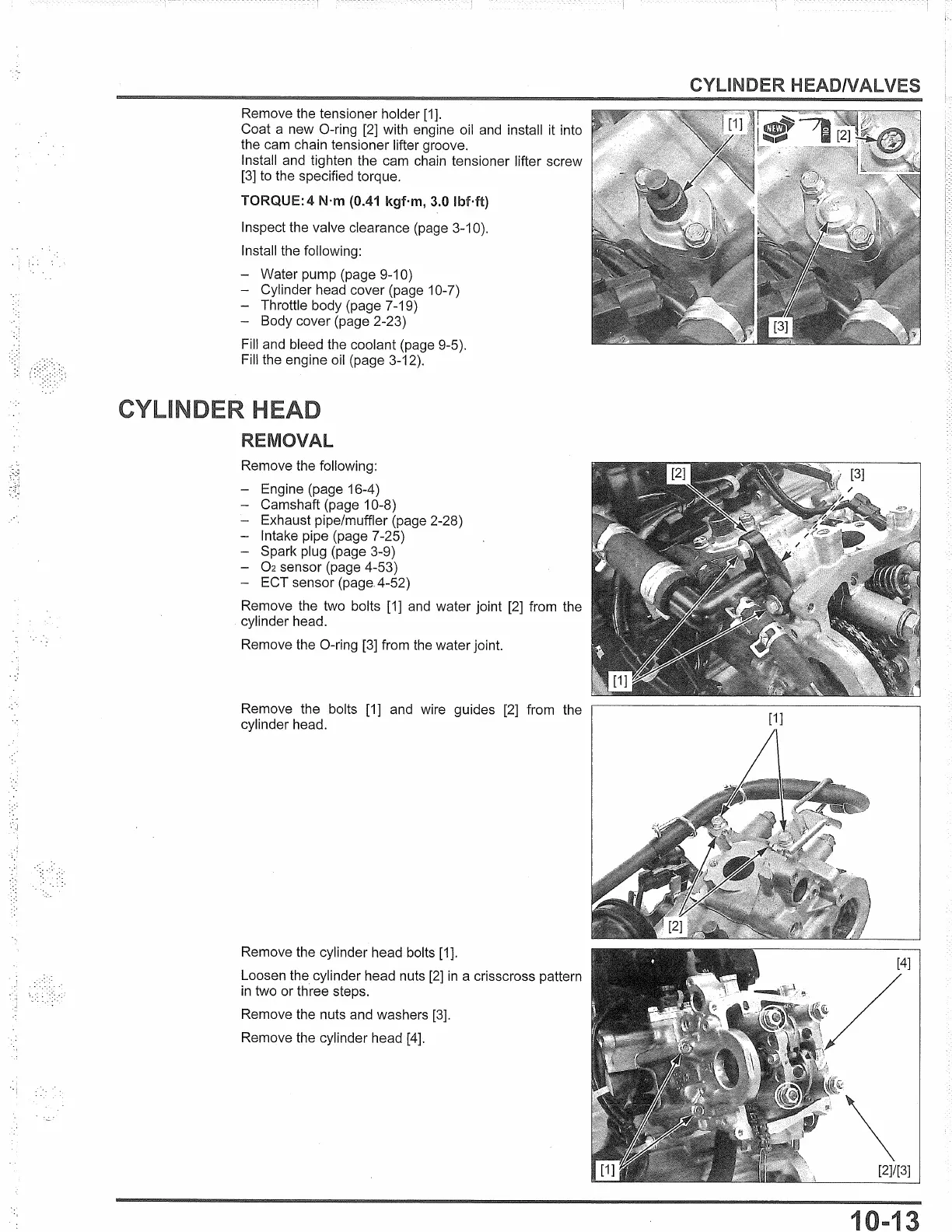

Remove the tensioner holder [1].
Coat a new
0-ring
[2] with engine oil and install
it
into
the cam chain tensioner lifter groove.
Install and tighten the cam chain tensioner lifter screw
[3] to the specified torque.
TORQUE: 4 N·m (0.41 kgf·m, 3.0
lbMt)
Inspect the valve clearance (page 3-10).
Install the following:
- Water pump (page 9-10)
- Cylinder head cover (page 10-7)
- Throttle body (page 7-19)
- Body cover (page 2-23)
Fill and bleed the coolant (page 9-5).
Fill the engine oil (page 3-12).
REMOVAL
Remove the following:
- Engine (page 16-4)
Camshaft (page 1 0-8)
Exhaust pipe/muffler (page 2-28)
Intake pipe (page 7-25)
Spark plug (page 3-9)
02 sensor (page 4-53)
ECT sensor (page. 4-52)
Remove the two bolts [1] and water joint [2] from the
cylinder head.
Remove the 0-ring [3] from the water joint.
Remove the bolts [1] and wire guides
[2]
from the
cylinder head.
Remove the cylinder head bolts [1].
Loosen the cylinder head nuts
[2]
in
a crisscross pattern
in
two or three steps.
Remove the nuts and washers [3].
Remove the cylinder head [4].
CYLINDER HEADNALVES
[1]
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
