Honda PCX150 2014 User Manual

·.',

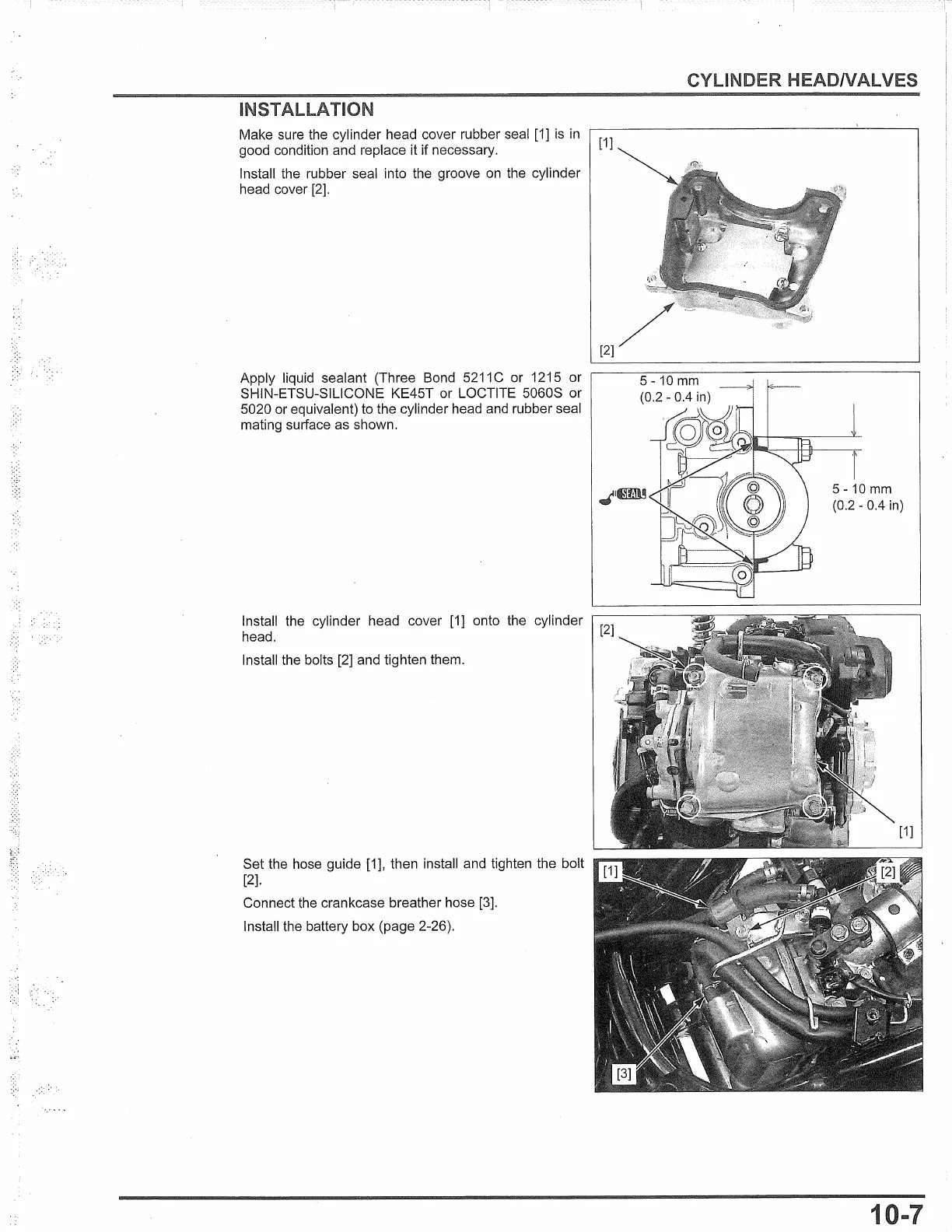

INSTALLATION
Make sure the cylinder head cover rubber seal [1] is
in
good condition and replace it if necessary.
Install the rubber seal into the groove
on
the cylinder
head cover [2].
Apply liquid sealant (Three Bond 5211C or 1215 or
SHIN-ETSU-SILICONE KE45T or LOCTITE 5060S or
5020 or equivalent) to the cylinder head and rubber seal
mating surface as shown.
Install the cylinder head cover [1] onto the cylinder [
2
]
head.
Install the bolts [2] and tighten them.
Set the hose guide [1], then install and tighten the bolt
[2].
Connect the crankcase breather hose [3].
Install the battery box (page 2-26).
HEADNALVES
__
,
-
l
5 -
10
mm
(0.2 -
0.4
in)
1

Honda PCX150 2014 Specifications

General

Displacement	153cc
Bore x Stroke	58.0mm x 57.9mm
Compression Ratio	10.6:1
Fuel System	PGM-FI electronic fuel injection
Starter	Electric
Transmission	Automatic V-Matic belt drive
Rear Suspension	Twin shock
Rear Brake	Drum
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Front Suspension	31mm telescopic fork
Engine Type	Liquid-cooled 4-stroke single
Front Brake	Single 220mm disc with hydraulic two-piston caliper
