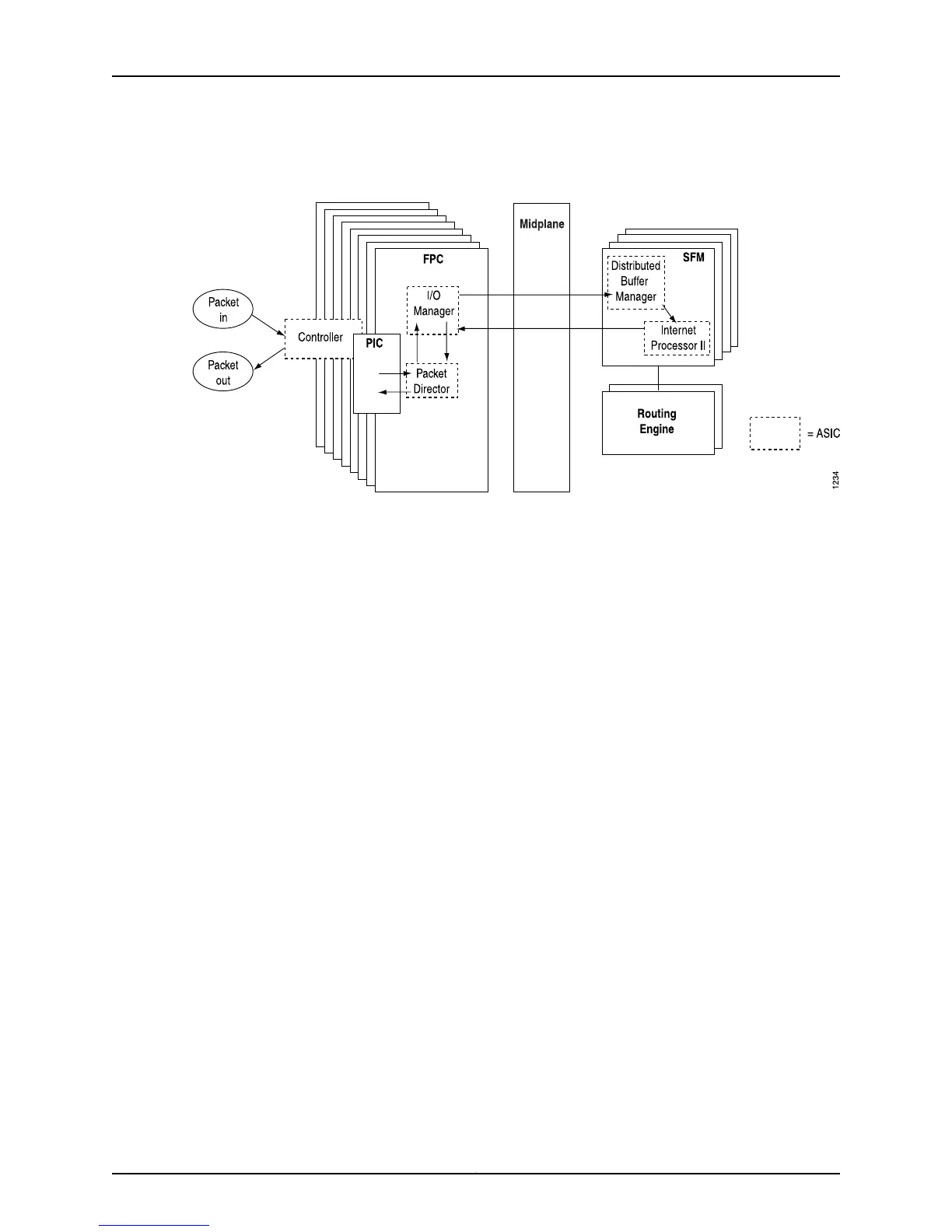

Figure 29: M160 Router Packet Forwarding Engine Components and Data
Flow
1. Packets arrive at an incoming PIC interface.
2. The PIC passes the packets to the FPC, where the Packet Director ASIC distributes
them among the I/O Manager ASICs.
3. The I/O Manager ASICs process the packet headers, divide the packets into 64-byte
data cells, and pass the cells through the midplane to the SFMs.
4. The Distributed Buffer Manager ASICs on the SFMs distribute the data cells throughout
memory buffers located on and shared by all the FPCs.
5. For each packet, an Internet Processor II ASIC on an SFM performs a route lookup and
decides how to forward the packet.
6. The Internet Processor II ASIC notifies a second Distributed Buffer Manager ASIC (on
the SFM) of the forwarding decision, and the Distributed Buffer Manager ASIC forwards
the notification to the FPC that hosts the appropriate outbound interface.
7. The I/O Manager ASIC on the FPC reassembles data cells in shared memory into data
packets as they are ready for transmission and passes them through the Packet
Director ASIC to the outbound PIC.
8. The outbound PIC transmits the data packets.
Related
Documentation
M160 Internet Router Overview on page 21•
Data Flow Through the M320 Router Packet Forwarding Engine
Data flows through the M320 router Packet Forwarding Engine in the sequence shown
in Figure 30 on page 130.
129Copyright © 2012, Juniper Networks, Inc.
Chapter 4: Monitoring Key Router Components
