TX Matrix Router Overview on page 39•

Check the TX Matrix Plus Router Routing Engine LEDs

Purpose The four TX Matrix Plus routing engine LEDs—ONLINE, CF, SSD1, and SSD2—are on the

RE-C2600 routing engine.

NOTE: The LEDs on the Routing Engine do not necessarily indicate

routing-related activity.

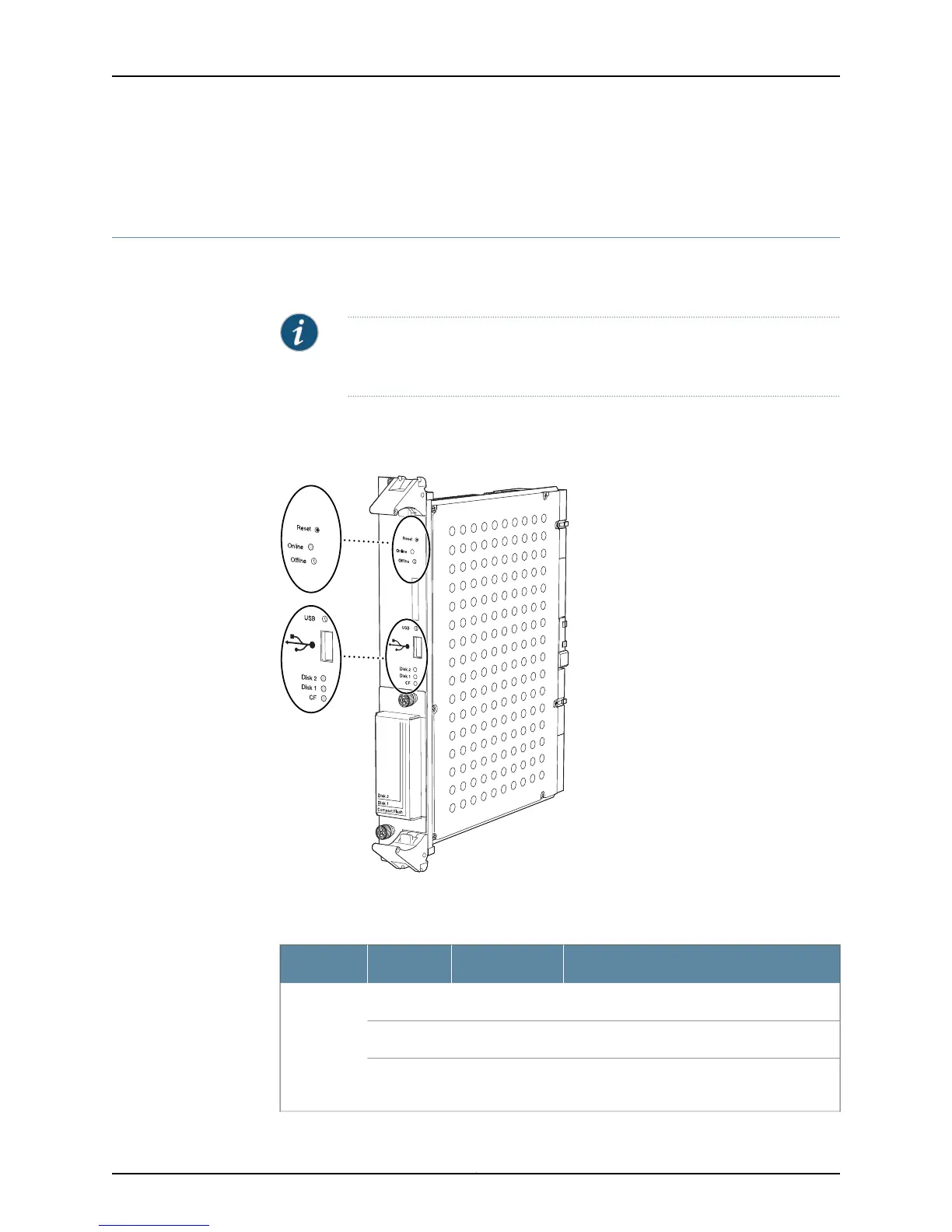

Action Figure 77 on page 190 shows the host module LEDs on the TX Matrix router craft interface.

Figure 77: TX Matrix Plus Router Routing Engine RE-C2600 LEDs

g004507

Table 54 on page 190 describes the functions of the RE-C2600 LEDs.

Table 54: TX Matrix Plus Routing Engine RE-C2600 LEDs

DescriptionStateColorLabel

Routing Engine is functioning normally.On steadilyGreenONLINE

Routing Engine is not functioning normally.On steadilyRed

Routing Engine is not online or not functioning

normally.

Off–
