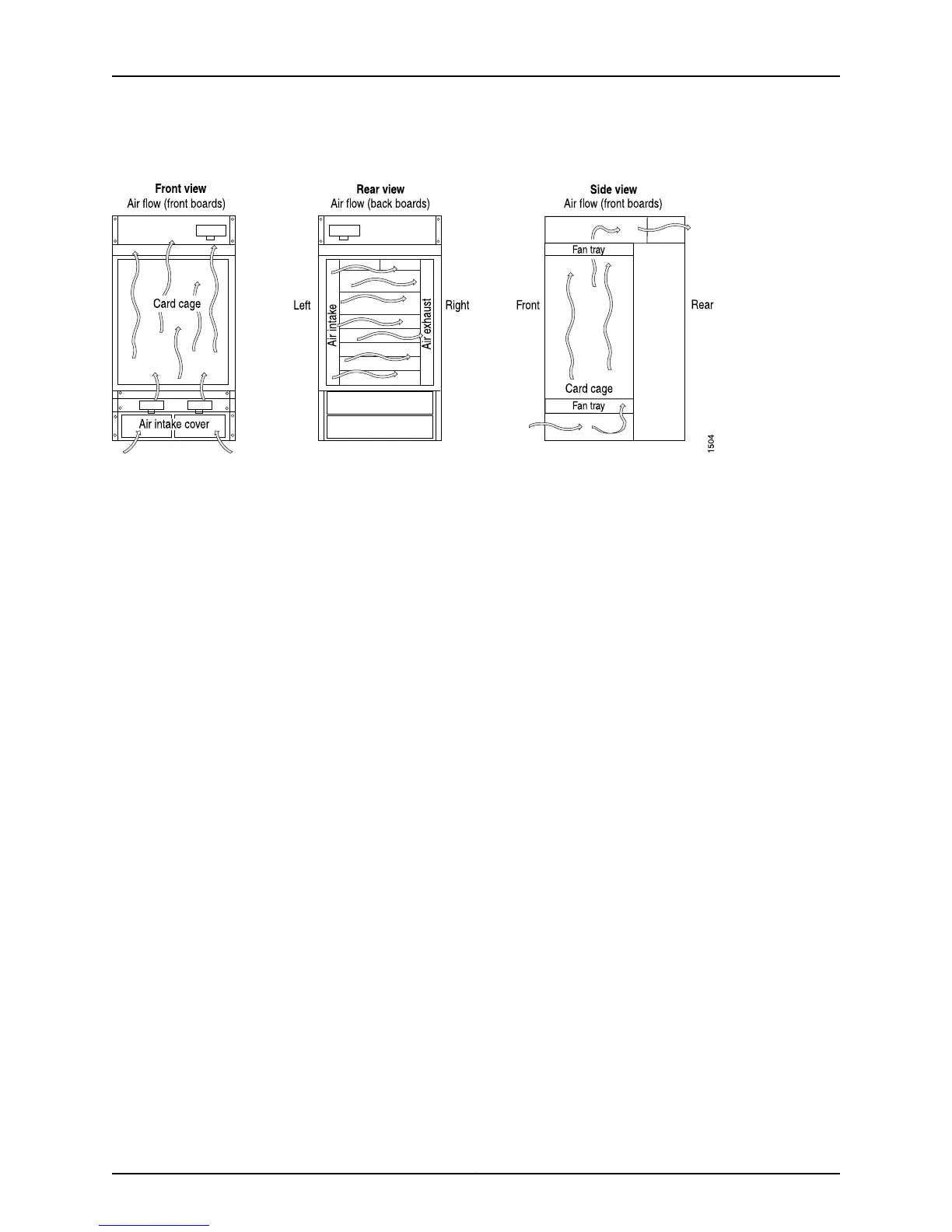

Figure 325: T1600 Router Cooling System and Airflow

The cooling system has redundant components, which are controlled by the host

subsystem. If one of the fans fails, the host subsystem increases the speed of the

remaining fans to provide sufficient cooling for the router indefinitely.

The host subsystem monitors the temperature of the router components. When the

router is operating normally, the fans function at lower than full speed. If a fan fails, the

speed of the remaining fans is automatically adjusted to keep the temperature within

the acceptablerange. Cooling system components can be removed and replaced without

powering down or disconnecting power to the router. Figure 326 on page 640 shows the

T1600 router cooling system components.

Chapter 31: Monitoring Redundant Cooling System Components
