NOTE: The standard fan trays and quiet fan trays are not interchangeable

with each other. All fans in the chassis must be either standard fan trays or

quiet fan trays.

All fan trays are hot-insertable and hot-removable.

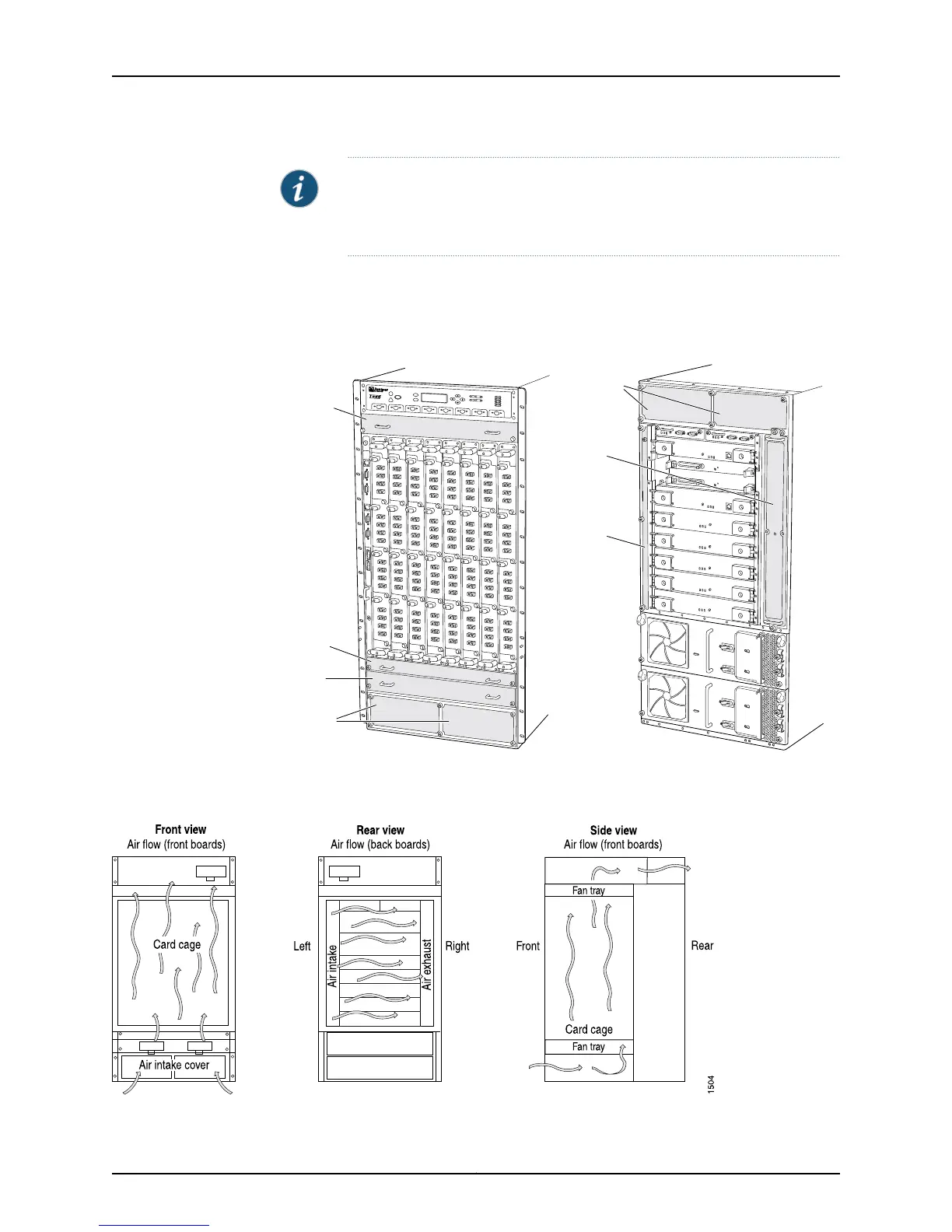

Figure 175 on page 334 shows the cooling system components in T1600 routers.

Figure 175: T1600 Router Cooling System Components

g006593

Front top

fan tray

Front

bottom

fan tray

Front

air filter

Air intake

Air exhaust

Rear

fan tray

Rear

air filter

Figure 176 on page 334 shows airflow through the T1600 routers.

Figure 176: T1600 Router Cooling System and Airflow
