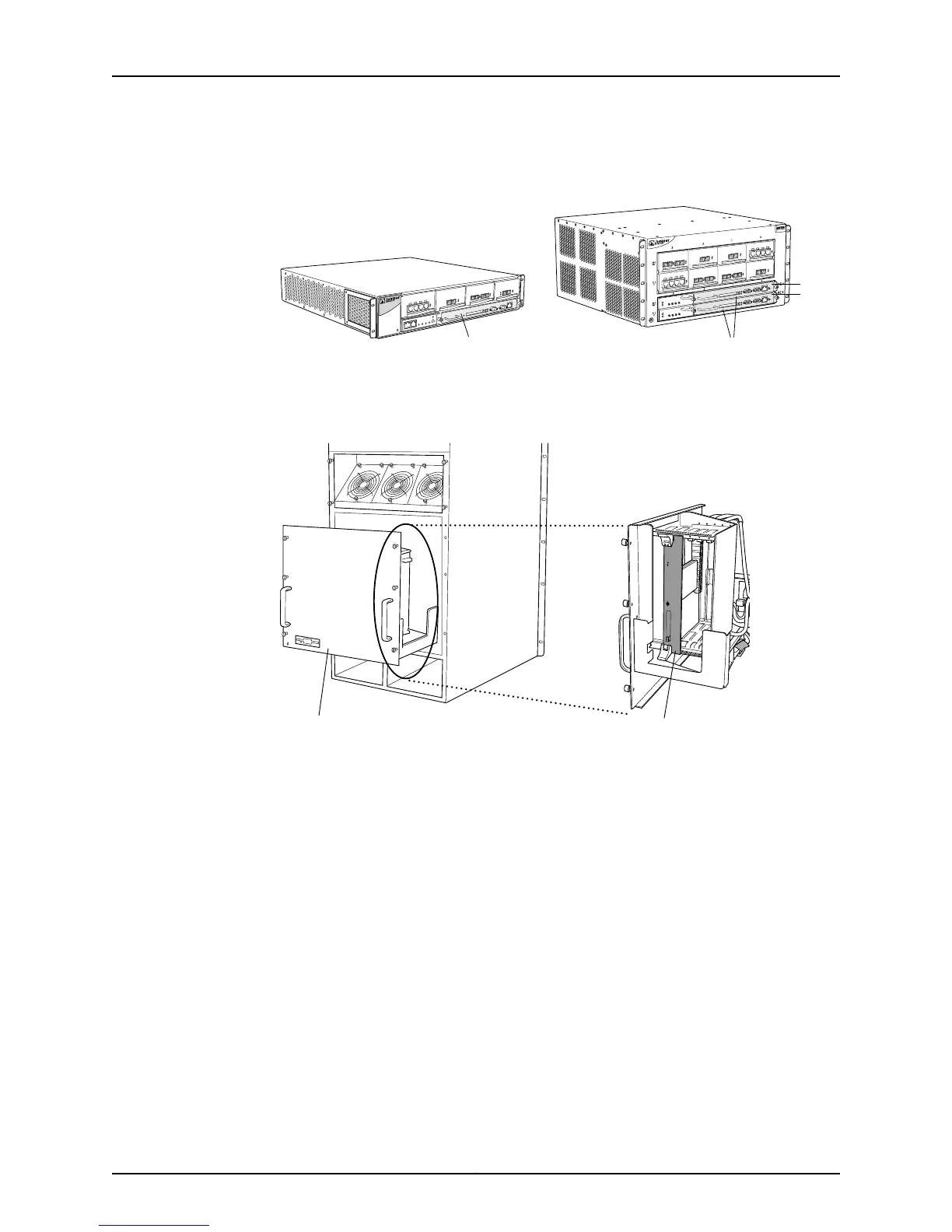

Figure 60: M7i and M10i Router Routing Engine Location
g002228
Routing Engine
M7i router front
Routing Engines
M10i router front
RE0
RE1
Figure 61 on page 173 shows the location of the Routing Engine on the M40 router.
Figure 61: M40 Router Routing Engine Location
PC CARD
RST
IDE
JUNOS PC CARD
LABEL THIS WAY
Rear view
Side view
Routing Engine housing
Routing Engine
g004145
On the M40 Internet router, the Routing Engine module resides in a metal housing at the
back of the chassis, below the fans, in a compartment behind the card cage (see Figure
61 on page 173).
The M40 router supports three Routing Engine models: RE-M40 (RE1), RE-333 (RE2),
and RE-600 (RE3).
All M40 routers shipped before mid-2001 had RE-M40 Routing Engines. All M40 routers
shipped after mid-2001 have the RE-333 Routing Engine and housing. You could also
upgrade to the RE-600 (RE3) Routing Engine.
The RE-333 and the RE-600 Routing Engines share the same housing, which is different
from the RE-M40. Therefore, if you want to upgrade from an RE-M40 to an RE-333 or
RE-600, you must also upgrade the Routing Engine housing.
173Copyright © 2012, Juniper Networks, Inc.
Chapter 6: Monitoring the Routing Engine
