TX Matrix Plus Router Redundant Cooling System Components
The cooling system contains the following components:
•
Two front fan trays
•
Rear fan tray
•
Front and rear air filter
•
Power supply fans
The cooling system has redundant components, which are controlled by the host
subsystem. If one of the fans fails, the host subsystem increases the speed of the
remaining fans to provide sufficient cooling for the TX Matrix Plus router indefinitely.
Figure 329 on page 642 shows airflow through the TX Matrix Plus router.

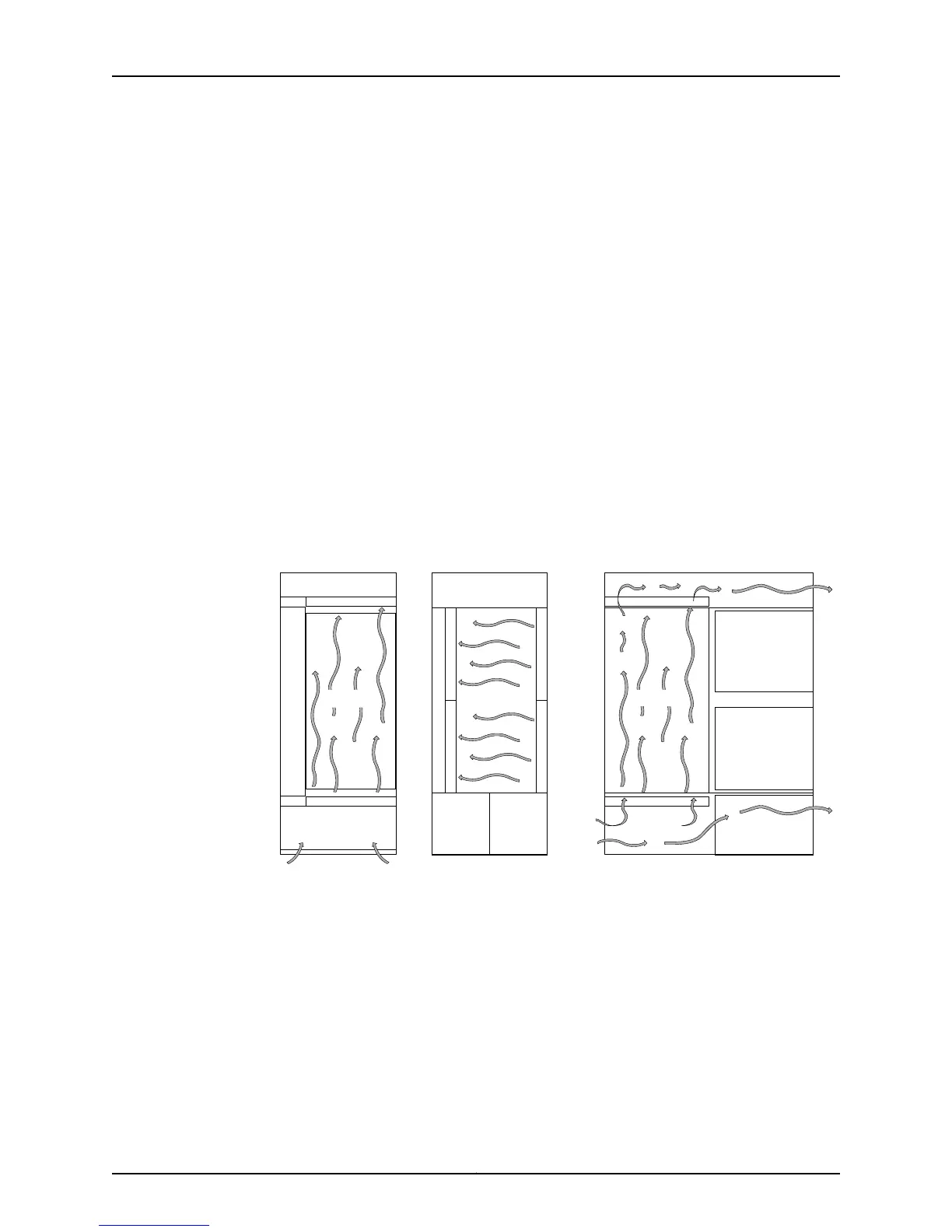

Figure 329: TX Matrix Plus Router Cooling System and Airflow
Card cage
Air intake
Air exhaust
Card cage Card cageCard cage
Air intake
Fan tray Fan tray
Fan tray
Power
supply
Power
supply
Power
supply
Fan tray Fan tray
Fan tray Fan tray
Air exhaust
Front Rear
Fan tray
Fan tray
Front view
Airflow (front boards)
Rear view
Airflow (back boards)
Side view
Airflow (front boards)
Fan tray
g004517
Figure 330 on page 643 shows the cooling system components in TX Matrix Plus routers.
Copyright © 2012, Juniper Networks, Inc.642
M Series and T Series Routers Monitoring and Troubleshooting Guide
