1B-1 Emission Control Devices:
Engine
Emission Control Devices
Precautions
Precautions for Emission Control Devices
B831G21200001
Refer to “General Precautions in Section 00 (Page 00-1)”.
Repair Instructions
Crankcase Breather (PCV) Hose Inspection
B831G21206001
Inspect the PCV hose in the following procedures:
1) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D (Page 9D-11)”.
2) Remove the left side cover. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.

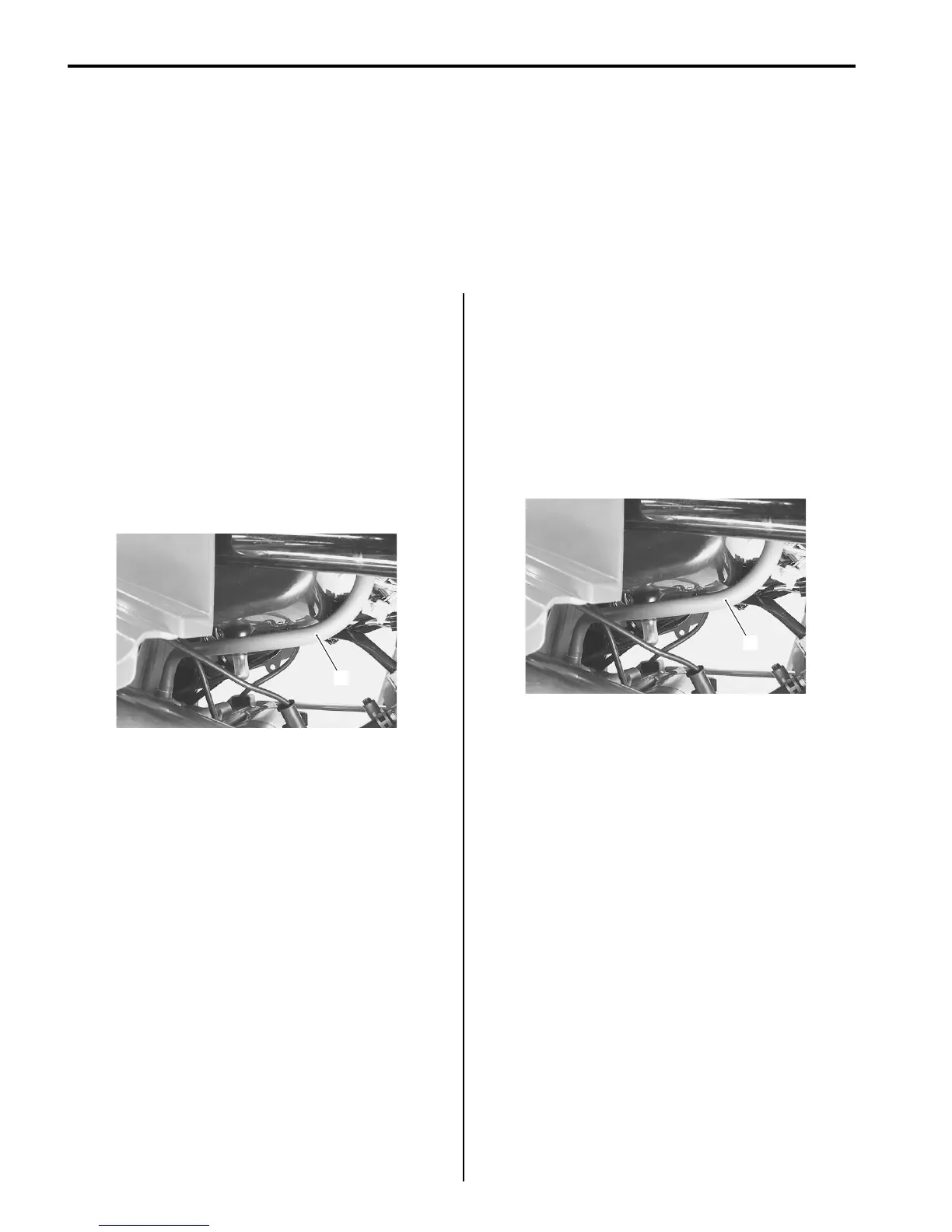

3) Inspect the PCV hose (1) for wear or damage. If it is
worn or damaged, replace the PCV hose with a new
one.
Check that the PCV hose (1) is securely connected.
Crankcase Breather (PCV) Hose Removal and
Installation
B831G21206002
Removal
1) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D (Page 9D-11)”.
2) Remove the left side cover. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
3) Disconnect the PCV hose (1).
Installation
1) Install the PCV hose as shown in the fuel hose
routing diagram. Refer to “Fuel Hose Routing
Diagram in Section 1G (Page 1G-3)”.
2) Reinstall the removed parts.
1
I831G1120001-01
1
I831G1120001-01
To Next Page
