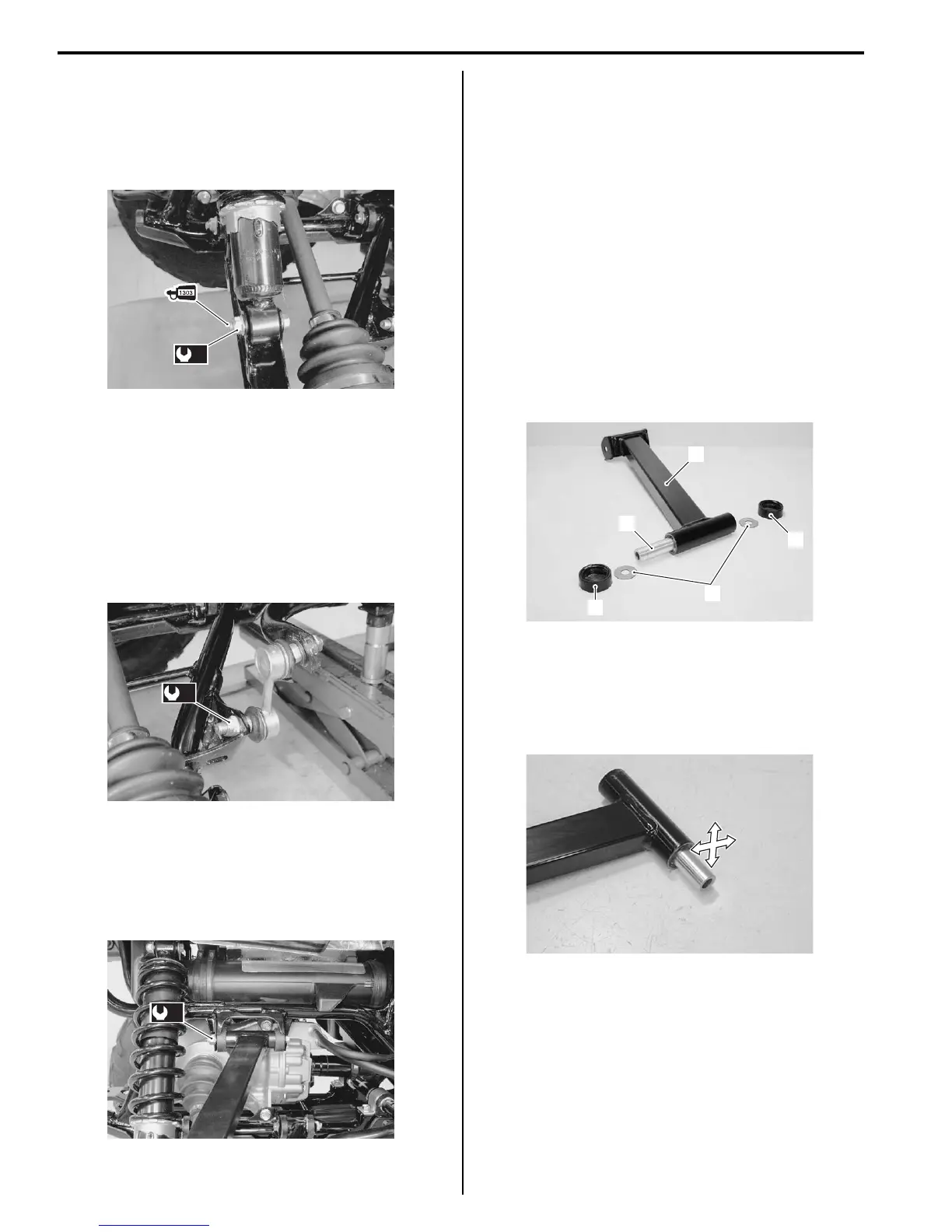

2C-9 Rear Suspension:
• Tighten the shock absorber mounting lower bolt and
nut to the specified torque.
Tightening torque
Rear shock absorber mounting nut (b): 60 N·m (
6.0 kgf-m, 43.5 lbf-ft)
• Connect the stabilizer joint by tightening the joint nut
to the specified torque.
Tightening torque
Rear stabilizer joint nut [Up to
5SAAR41A497105526] (c): 34 N·m (3.4 kgf-m, 24.5
lbf-ft)
Rear stabilizer joint nut [From
5SAAR41A497105527] (c): 60 N·m (6.0 kgf-m, 43.5
lbf-ft)
• Tighten the suspension arm upper bolt and pivot nut
to the specified torque.
Tightening torque
Suspension arm upper pivot nut (d): 60 N·m (6.0
kgf-m, 43.5 lbf-ft)
• Install the rear suspension knuckle arm and wheel
hub. Refer to “Rear Wheel Hub / Suspension Knuckle
Removal and Installation (Page 2C-4)”.
Rear Suspension Arm Related Parts Inspection
B931G22306011
Refer to “Rear Suspension Arm Upper / Lower Removal
and Installation (Page 2C-8)”.
Upper Arm
1) Inspect the following parts for wear or damage. If any
defects are found, replace defective parts with new
ones.
• Suspension upper arm (1)
• Dust seal (2)
• Washer (3)
• Spacer (4)
2) Insert the spacer into bushings.
3) Check the play by moving the spacer up and down. If
excessive play is noted, replace the bushings with a
new one. Refer to “Rear Suspension Upper Arm
Bushing Removal and Installation (Page 2C-11)”.
(b)
I831G1230029-02
(c)
I831G1230030-01
(d)
I831G1230031-01
1
2
2
3
4
I831G1230032-01
I831G1230033-02
