Drive Chain / Drive Train / Drive Shaft: 3A-6

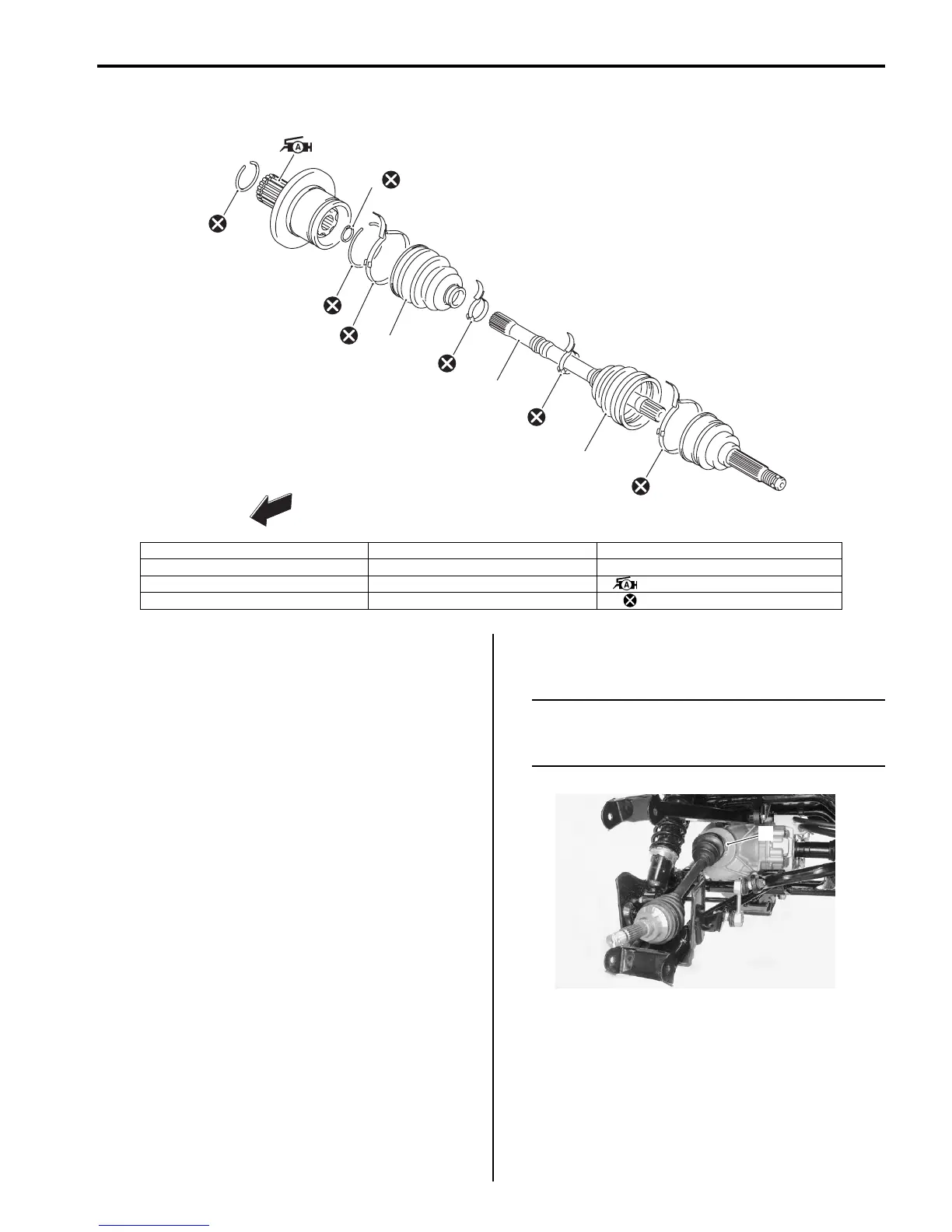

Rear Drive Shaft Components

B831G23106005

Rear Drive Shaft Assembly Removal and

Installation

B831G23106006

Removal

1) Drain the rear final gear oil. Refer to “Final Gear Oil

Inspection in Section 0B (Page 0B-14)”.

2) Remove the rear wheel. Refer to “Front / Rear

Wheel Removal and Installation in Section 2D

(Page 2D-2)”.

3) Remove the rear wheel hub and rear suspension

arm. Refer to “Rear Wheel Hub / Suspension

Knuckle Removal and Installation in Section 2C

(Page 2C-4)”.

4) Hold the in board joint (1) of the rear drive shaft and

tug the drive shaft horizontally.

NOTE

If it is difficult to remove the rear drive shaft

from the rear differential gear case, using the

suitable tool.

FWD

I831G1310002-05

1. Circlip 5. Inner boot 9. Outer boot

2. Snap ring 6. Inner boot band (Small) 10. Outer boot band (Large)

3. Stopper ring 7. Drive shaft : Apply grease.

4. Inner boot band (Large) 8. Outer boot band (Small) : Do not reuse.

I831G1310020-04
