Parking Brake: 4D-3
Repair Instructions
Parking / Rear Brake Inspection and
Adjustment
B831G24406001
Refer to “Rear Brake Pedal / Rear Brake (Parking Brake)
Lever Inspection and Adjustment in Section 0B
(Page 0B-19)”.
Parking / Rear Brake Cable Removal and
Installation
B831G24406002
Removal
1) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D (Page 9D-11)”.
2) Remove the front fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)” and “Front Carrier Removal and
Installation in Section 9E (Page 9E-4)”.
3) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation in Section 1D
(Page 1D-5)”.

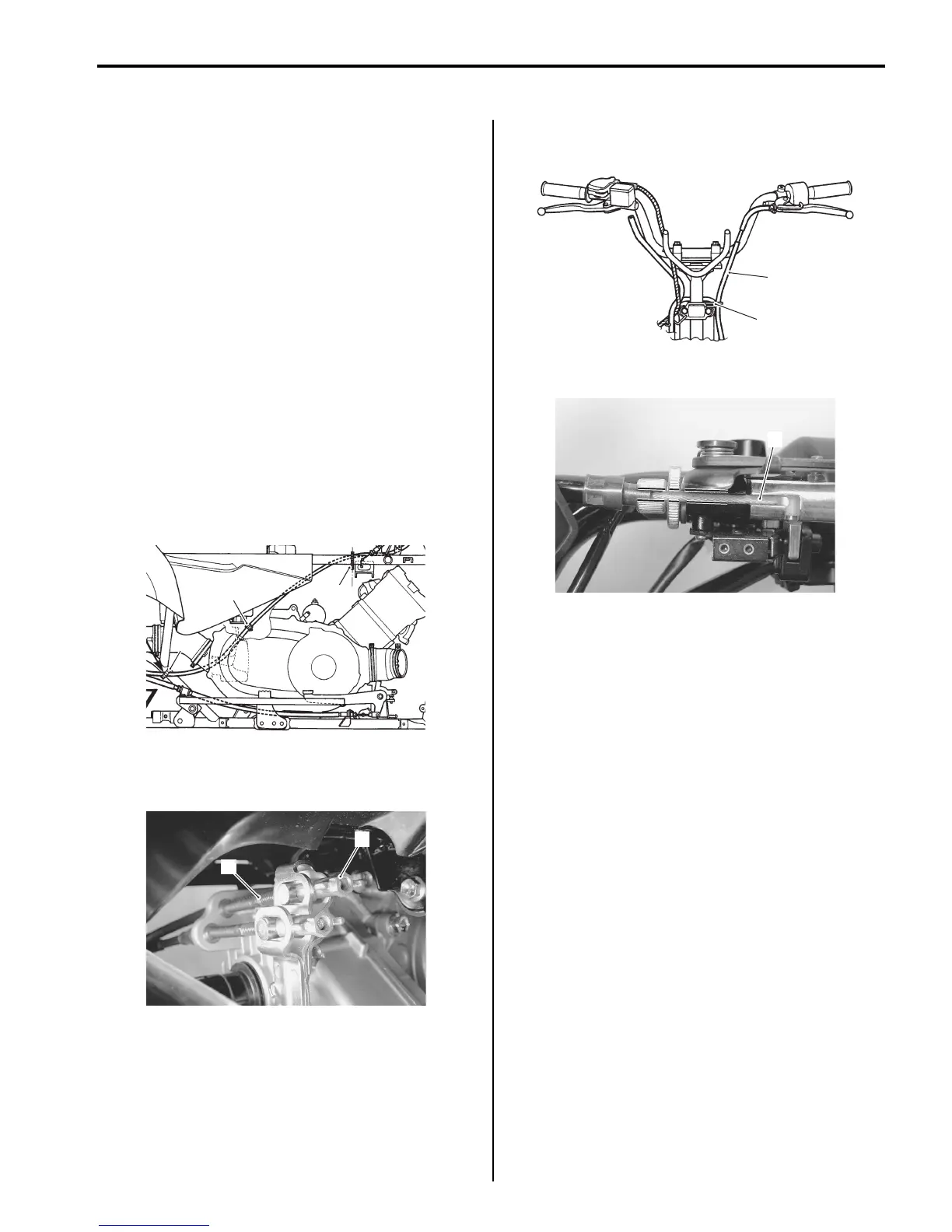

4) Remove the clamps (3) and parking brake cable
from the cable guide (2).
5) Remove the parking brake cable adjuster nut (4) and
parking brake cable (5).
6) Remove the parking brake cable (5) from the cable
guide (6).
7) Disconnect the parking brake cable (5).
8) Remove the parking brake cable from vehicle.
Installation
1) Install the parking brake cable as shown in the
parking brake cable routing diagram. Refer to
“Parking / Rear Brake Cable Routing Diagram
(Page 4D-1)”.
2) Reinstall the removed parts.
3) After installing the parking brake cable, inspect or
adjust the parking brake cable. Refer to “Rear Brake
Pedal / Rear Brake (Parking Brake) Lever Inspection
and Adjustment in Section 0B (Page 0B-19)”.
3
2
3
I831G1440003-01
5
4
I831G1440004-01
5
6
I831G1440005-03
5
I831G1440006-02
