Starting System: 1I-10
4) After finishing the gear position switch inspection,
reinstall the removed parts.

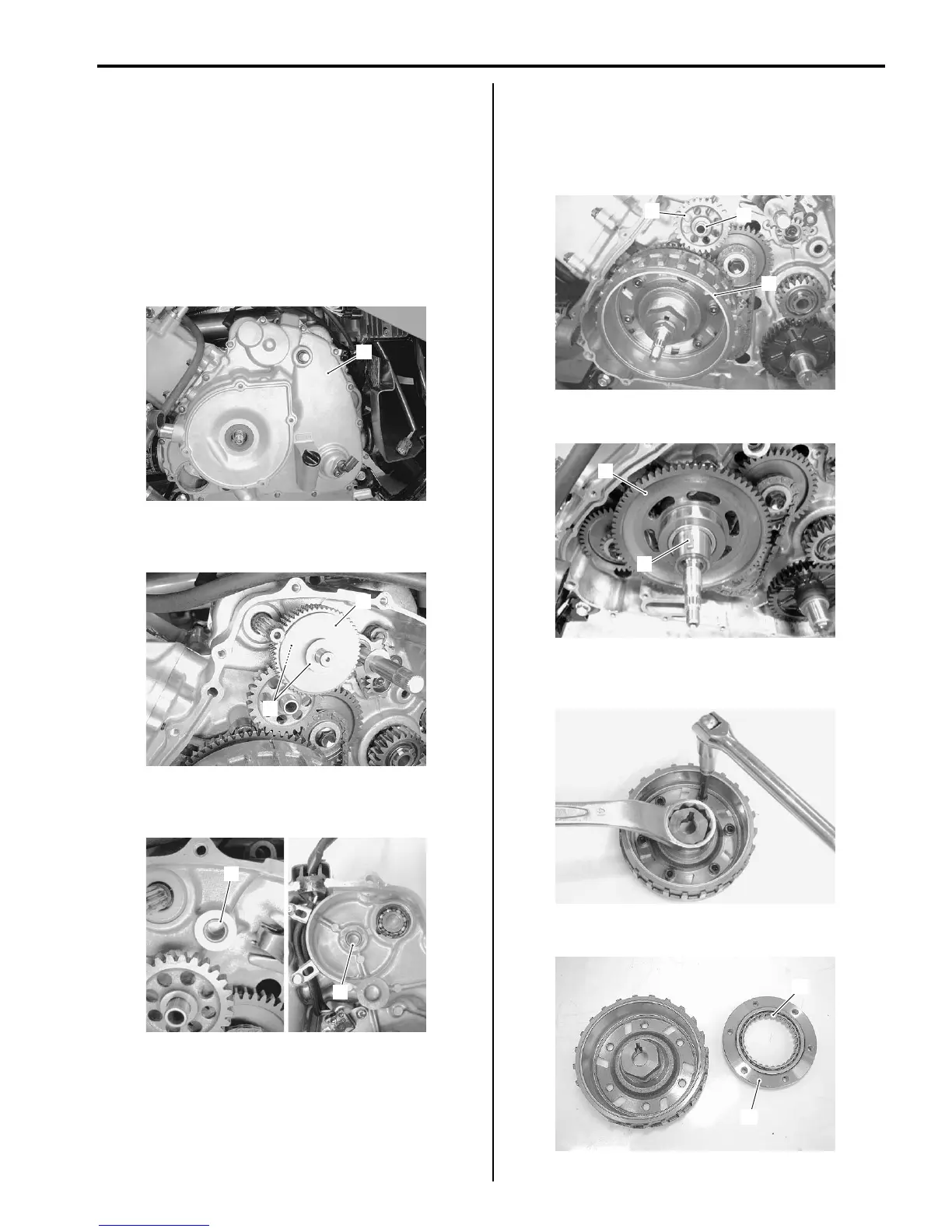

Starter Torque Limiter / Starter Clutch Removal
and Installation
B831G21906014
Removal
1) Drain engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
2) Remove the generator cover (1). Refer to “Generator
Removal and Installation in Section 1J (Page 1J-4)”.
3) Remove the starter torque limiter (2) with the
washers (3).
4) Remove the bushings (4) from the crankcase and
generator cover.
5) Remove the idle gear shaft (5) and starter idle gear
(6).
6) Remove the generator rotor assembly (7). Refer to
“Generator Removal and Installation in Section 1J
(Page 1J-4)”.
7) Remove the key (8) and starter driven gear (9).
8) Hold the generator rotor with a 41 mm offset wrench
and remove the starter clutch bolts.
9) Remove the one way clutch (10) from the guide (11).
1
I831G1190025-01
2
3
I831G1190026-02
4
4
I831G1190027-02
5
6
7
I831G1190028-01
8
9
I831G1190030-01
I831G1190031-01
11
10
I831G1190032-01
