0B-2 Maintenance and Lubrication:

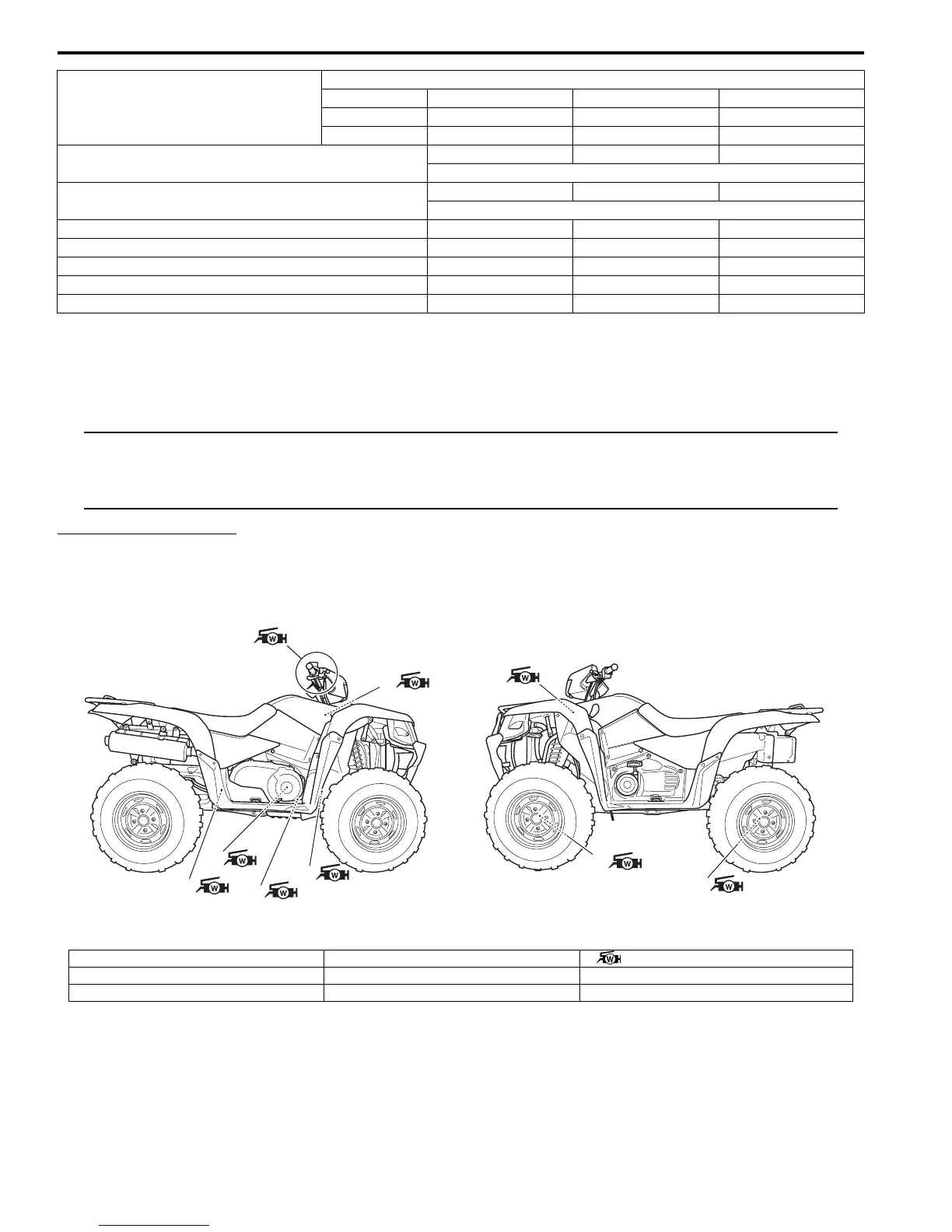

Lubrication Points
B931G20205002
Proper lubrication is important for smooth operation and long life of each working part of the vehicle.
Major lubrication points are indicated as follows.
NOTE
• Before lubricating each part, clean off any rusty spots and wipe off any grease, oil, dirt or grime.
• Lubricate exposed parts which are subject to rust, with a rust preventative spray whenever the
vehicle has been operated under wet or rainy conditions.
Lubricate exposed parts
Every 1 000 km (600 miles, 3 months)
Brake fluid
—I I
Replace every 2 years.
Brake hose
—— I
Replace every 4 years.
Tires — I I
Steering III
Suspensions — — I
Chassis nuts and bolts T T T
General lubrications — L L
Item
Interval
km Initial 200 Every 1 000 Every 2 000
miles Initial 100 Every 600 Every 1 200
months Initial 1 Every 3 Every 6
1
4
6
4
4
3
1
2
5
5
I831G1020001-03
1. Steering shaft holder 4. Propeller shaft joint spline : Apply water resistance grease.
2. Brake level holder and throttle lever 5. Drive shaft joint spline
3. Brake pedal 6. Drive belt cover bearing (Inner race)
