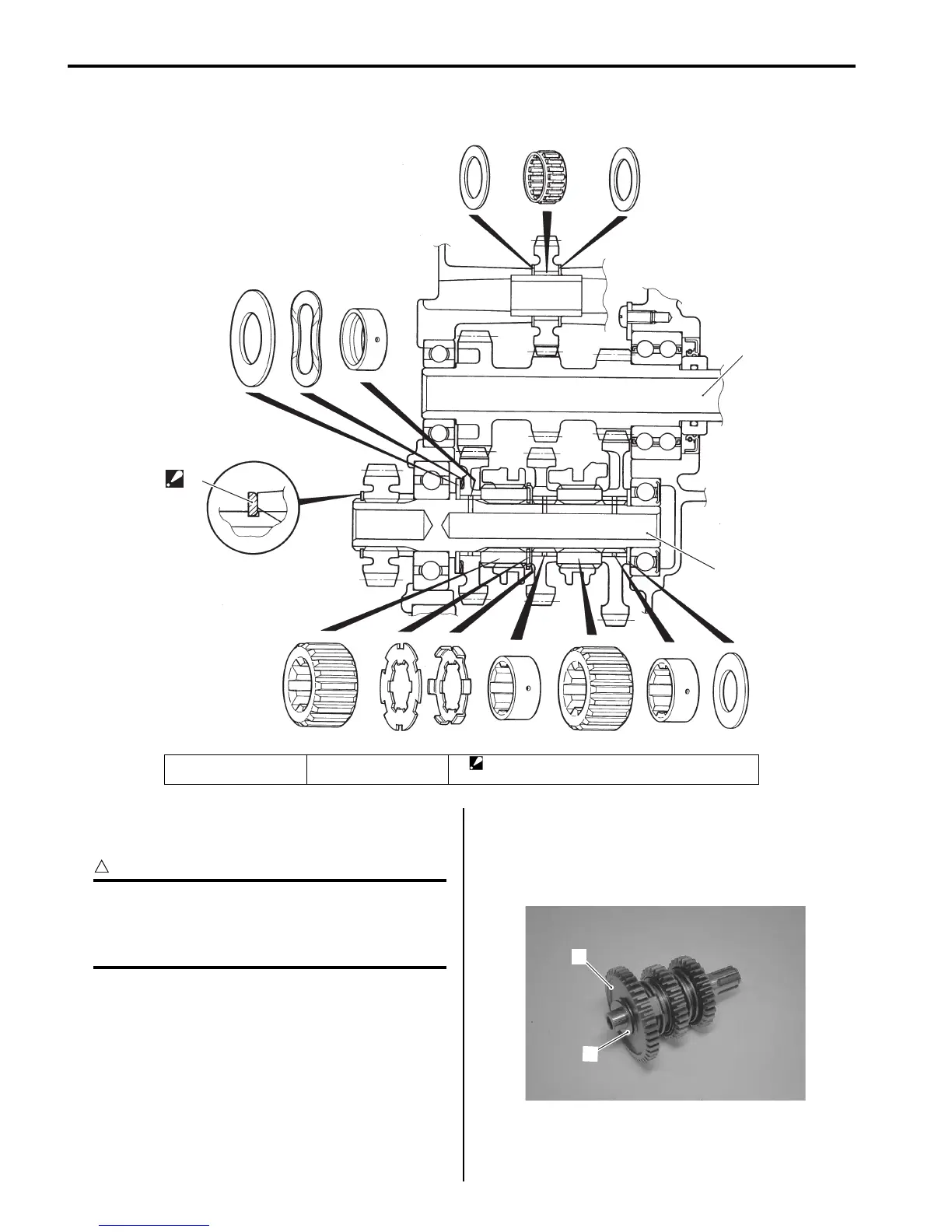

3C-6 Transfer:
Transfer Construction
B831G23306003
Counter Shaft / Reverse Idle Gear Disassembly
and Assembly
B831G23306004
CAUTION
!
Identify the position of each removed part.
Organize the parts in their respective groups
so that they can be reinstalled in their
original position.
Disassembly
Refer to “Transfer Removal and Installation (Page 3C-
3)”.
Counter shaft
1) Remove the counter shaft assembly. Refer to
“Transfer Removal and Installation (Page 3C-3)”.
2) Remove the low driven gear (1) and washer (2).
3
1
2
I831G1330002-03
1. Counter shaft 2. Drive shaft 3. Snap ring
: Assembly snap ring with edge side out.
1
2
I831G1330020-01
To Next Page
