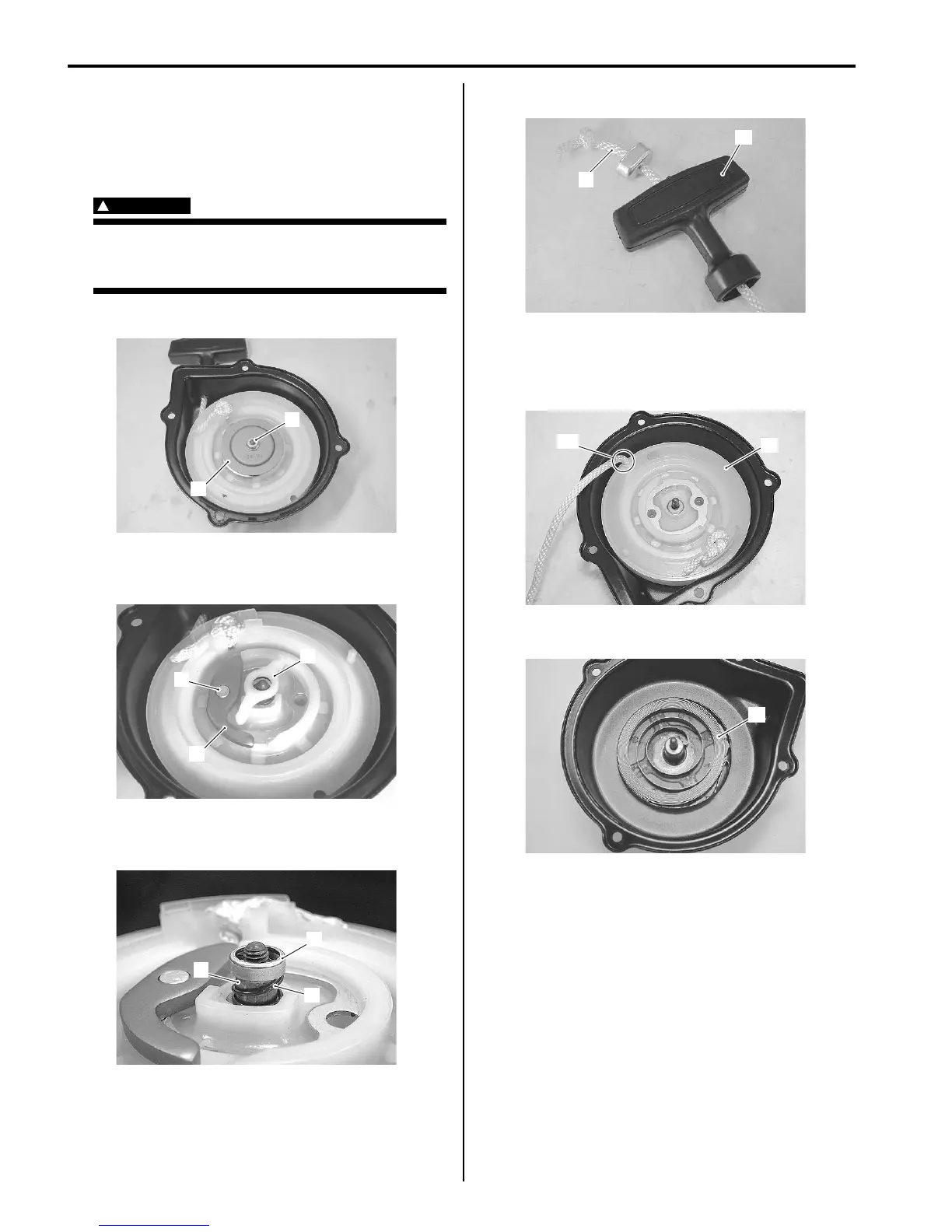

1I-15 Starting System:
Recoil Starter Disassembly and Assembly
B831G21906020
Refer to “Recoil Starter Assembly Removal and
Installation (Page 1I-14)”.
Disassembly
WARNING
!
Wear hand and eye protection when
removing the reel, since the spring may
quickly unwind and cause an injury.
1) Remove the nut (1) and friction plate (2).
2) Remove the ratchet guide (3), ratchet (4) and ratchet
pin (5).
3) Remove the spring cover (6), spring (7) and spacer
(8).
4) Disengage the rope (9) from the handle (10).
5) Hook the rope to groove “A” of the reel (11).
6) Turn the rope on the reel (11) properly.
7) Remove the reel (11).
8) Remove the spiral spring (12).
1
2
I831G1190049-03
3
5
4
I831G1190050-02
6
7
8
I831G1190051-02
10
9
I831G1190052-02
11
“A”
I831G1190053-02
12
I831G1190054-01
To Next Page
