Starting System: 1I-14

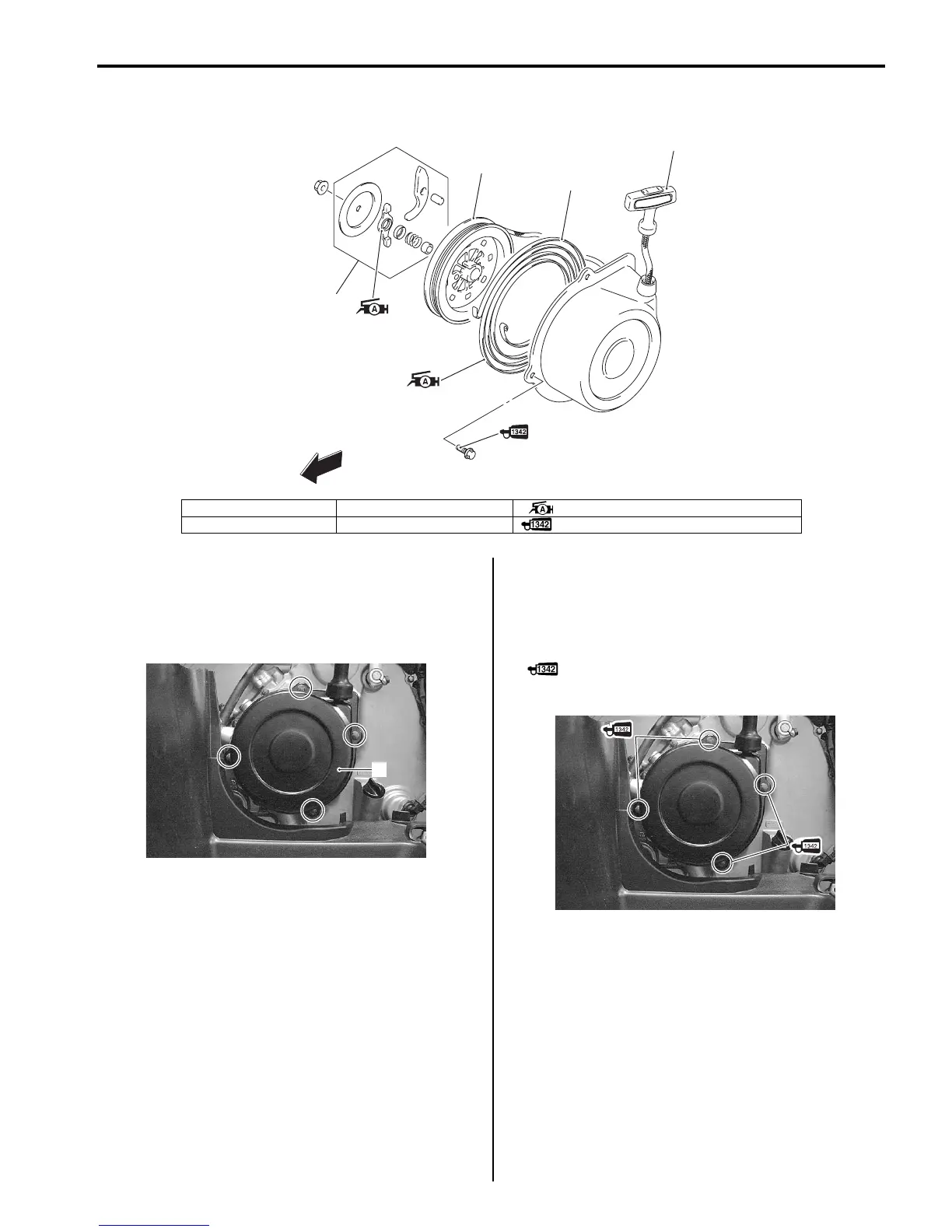

Recoil Starter Components
B831G21906018
Recoil Starter Assembly Removal and
Installation
B831G21906019
Removal
• Remove the recoil starter (1).
Installation
Install the recoil starter assembly in the reverse order of
removal. Pay attention to the following point:
• Apply a small quantity of thread lock to the recoil
starter bolts.
: Thread lock cement 99000–32050
(THREAD LOCK CEMENT 1342 or equivalent)
1
2
3
4
FWD
I831G1190046-04
1. Ratchet set 3. Spiral spring : Apply grease.
2. Reel 4. Rope assembly : Apply thread lock to the thread part.
1
I831G1190047-02
I831G1190048-04
