3B-22 Differential:

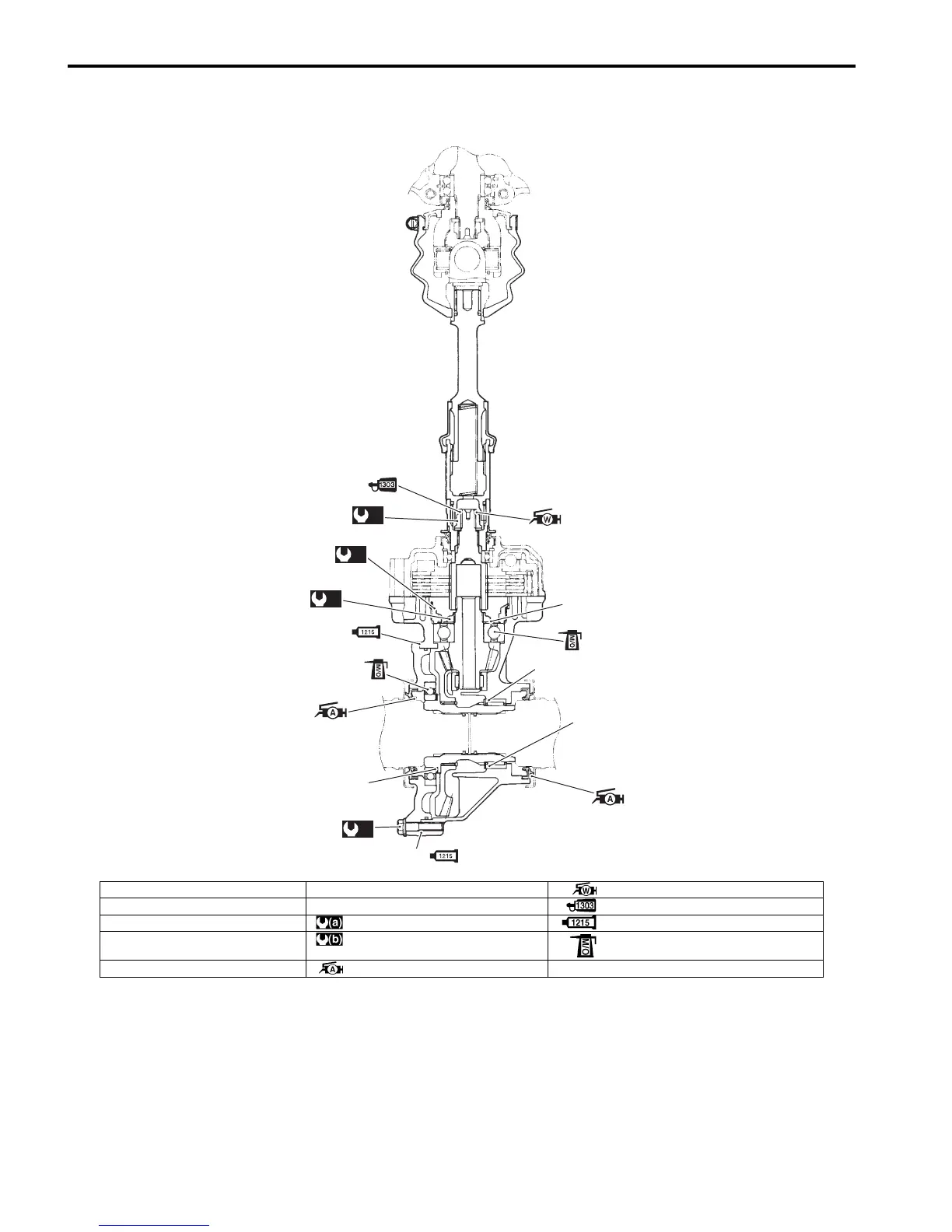

Final Gear Construction
B831G23206013
1
2
2
3
(b)
4
(b)
5
(b)
6
(a)
“A”
“A”
I831G1320081-04
1. Shim (Left side) 6. Lock-nut : Apply water resistance grease.
2. Shim (Right side) “A”: Matching surface : Apply thread lock to thread part.
3. Pinion gear shim(s) : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft) : Apply bond.
4. Pinion gear nut : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft) : Apply molybdenum oil solution.
5. Final drive bearing stopper : Apply grease.
