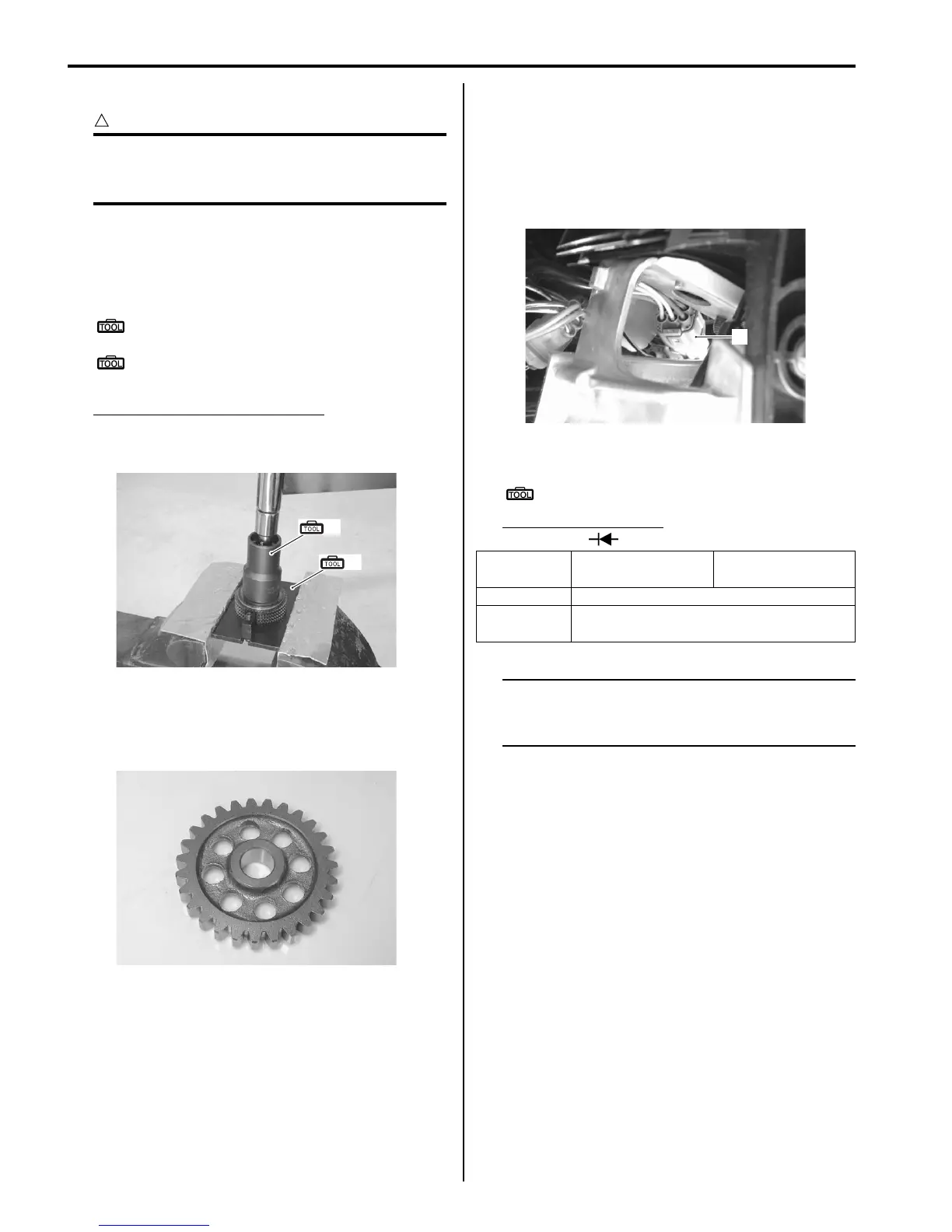

1I-13 Starting System:
Starter Torque Limiter
CAUTION
!
Do not attempt to disassemble the starter
torque limiter. The starter torque limiter is
available only as an assembly.
1) Set the starter torque limiter to the special tools and
vise.
2) Turn the starter torque limiter and check the slip
torque.
Special tool
(A): 09930–73170 (Starter torque limiter
holder)
(B): 09930–73140 (Starter torque limiter
socket)
Starter torque limiter slip torque
Standard: 41.2 – 62.8 N⋅m (4.2 – 6.4 kgf-m, 14.5 –
32.5 lb-ft)
Starter Idle Gear
Inspect the starter idle gear for wear or damage. If any
damage is found, replace it with a new one.
Starter Button Inspection
B831G21906017
Inspect the starter button in the following procedures:
1) Remove the left inner fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
2) Disconnect the handlebar switch coupler (1).
3) Measure the voltage between Y/G and O lead wires.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Diode test ( )
NOTE
If the tester reads 1.4 V and below when the
tester probes are not connected, replace its
battery.
(A)
(B)
I831G1190043-01
I831G1190044-01
Y/G
((+) probe)
O
((–) probe)
ON 0.4 – 0.6 V
OFF
1.4 V and more
(Tester’s battery voltage)
1
I831G1190045-02
To Next Page
