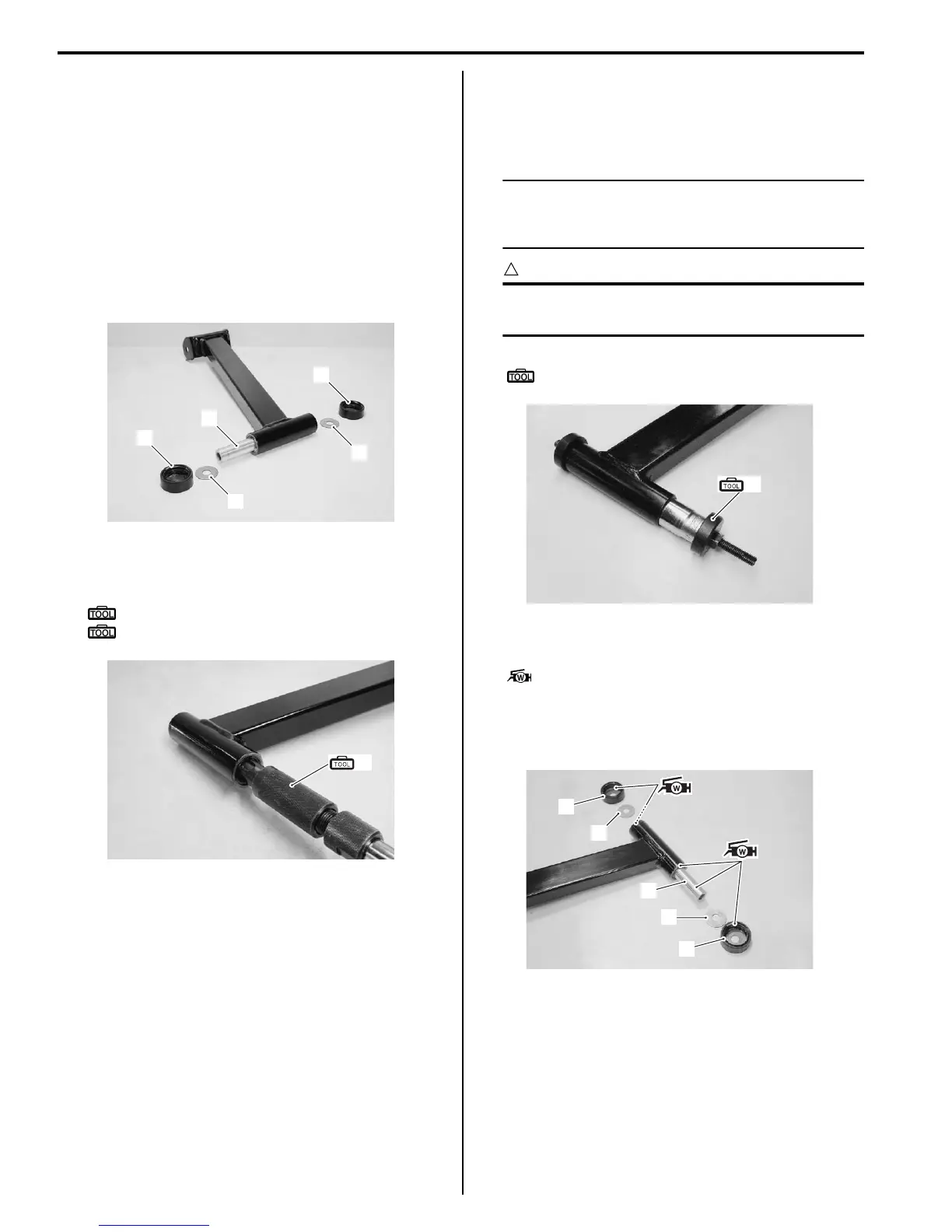

2C-11 Rear Suspension:
Rear Suspension Upper Arm Bushing Removal
and Installation
B931G22306012
Refer to “Rear Suspension Arm Upper / Lower Removal
and Installation (Page 2C-8)”.
Removal
1) Remove the following parts from the rear suspension
upper arm.
• Dust seal (1)
•Washer (2)
• Spacer (3)
2) Remove the rear upper suspension arm bushings
along with inner dust seals with the special tools.
Special tool
(A): 09923–73210 (Bearing remover)
: 09930–30104 (Rotor remover sliding shaft)
Installation
1) Install the rear suspension upper arm bushing and
inner dust seal with the special tool and suitable
socket wrench.
NOTE
Position the bushing and dust seals by
referring to “Rear Suspension Assembly
Construction (Page 2C-2)”.
CAUTION
!
The removed bushings and dust seals must
be replaced with new ones.
Special tool
(A): 09941–34513 (Steering race installer)
2) Apply grease to the lip of inner dust seals, spacer (1)
and inside of dust seals (2).
: Grease 99000–25160 (Water resistance
grease or equivalent)
3) Install the washers (3) and dust seals (2) to the rear
suspension upper arm.
1
1
3
2
2
I831G1230065-01
(A)
I831G1230038-01
(A)
I831G1230039-01
1
2
2
3
3
I831G1230040-01
