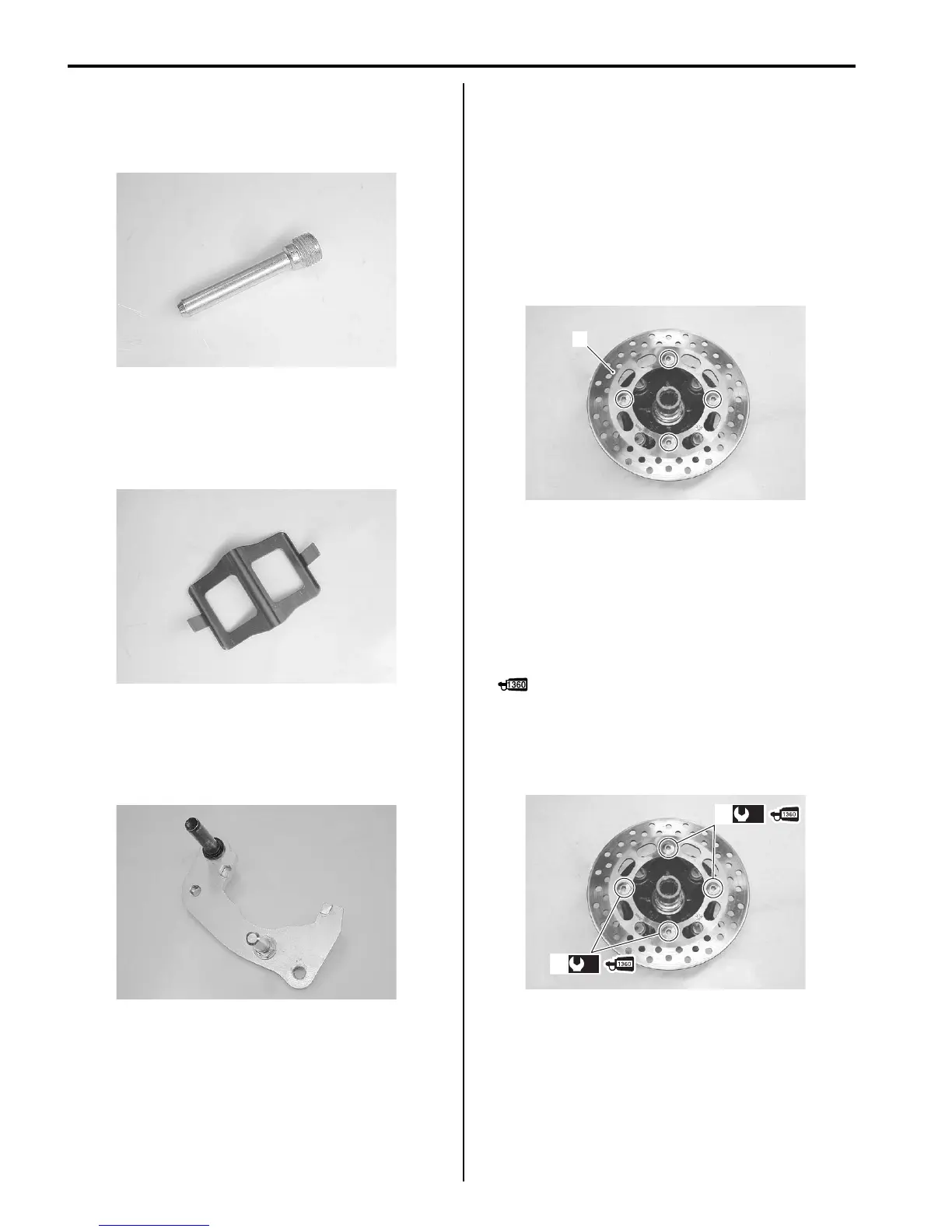

4B-7 Front Brakes:
Brake Pad Mounting Pin
Inspect the brake pad mounting pin for wear or other
damage. If any damage is found, replace the mounting
pin with a new one.
Brake Pad Spring
Inspect the brake pad springs for damage or excessive
bend. If any defects are found, replace them with new
ones.
Brake Caliper Holder
Inspect the brake caliper holder for damage. If any
damage is found, replace the caliper holder with a new
one.
Front Brake Disc Removal and Installation
B831G24206007
Removal
1) Remove the front wheel assembly. Refer to “Front /
Rear Wheel Removal and Installation in Section 2D
(Page 2D-2)”.
2) Remove the front wheel hub. Refer to “Front Wheel
Hub / Steering Knuckle Removal and Installation in
Section 2B (Page 2B-4)”.
3) Remove the brake disc (1) from the front wheel hub.
Installation
Install the front brake disc in the reverse order of
removal. Pay attention to the following points:
• Make sure that the brake discs are clean and free of
any grease.
• Apply thread lock to the brake disc bolts (1) and
tighten them to the specified torque.
: Thread lock cement 99000–32130
(THREAD LOCK CEMENT SUPER 1360 or
equivalent)
Tightening torque
Brake disc bolt (a): 23 N·m (2.3 kgf-m, 16.5 lb-ft)
I831G1420023-01
I831G1420024-01
I831G1420026-01
1
I831G1420027-02
(a)(a)
1
(a)(a)
1
I831G1420028-02
