9D-12 Exterior Parts:
Under Cover Components
B831G29406008
Under Cover Removal and Installation
B831G29406009
Front Under Cover
Removal

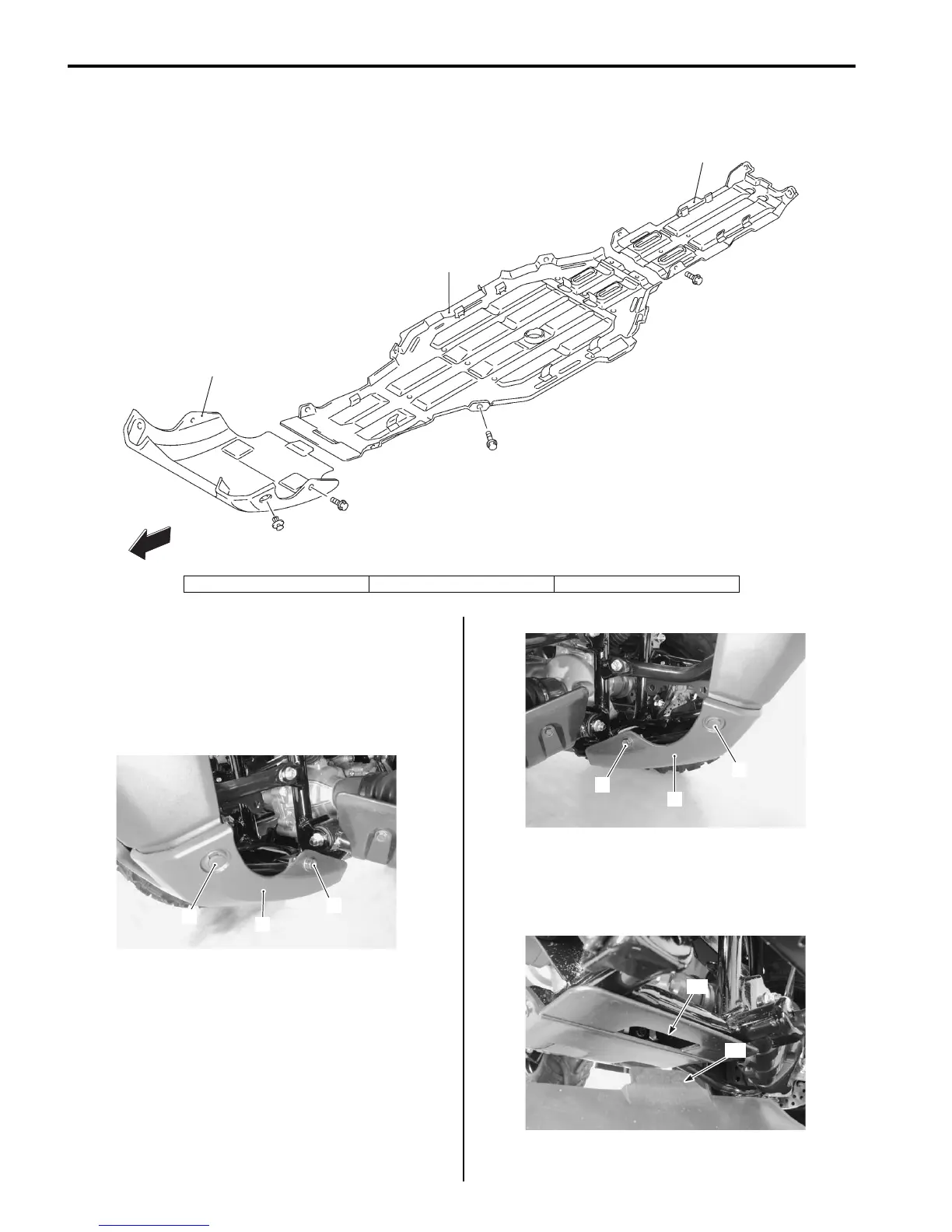

Remove the front under cover (1) by removing the bolts
(2) and fasteners (3).
Installation
1) Fix the front under cover “B” to the groove “A” of
engine under cover.
2) Install the front under cover.
1
2
3
FWD
FWD
I831G1940034-02
1. Front under cover 2. Engine under cover 3. Rear under cover
3
1
2
I831G1940035-02
3
1
2
I831G1940036-01
“A”
“B”
I831G1940037-02
