Automatic Transmission: 5A-5
V-belt Cooling Duct Removal and Installation
B831G25106003
Removal
1) Remove the right inner fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.

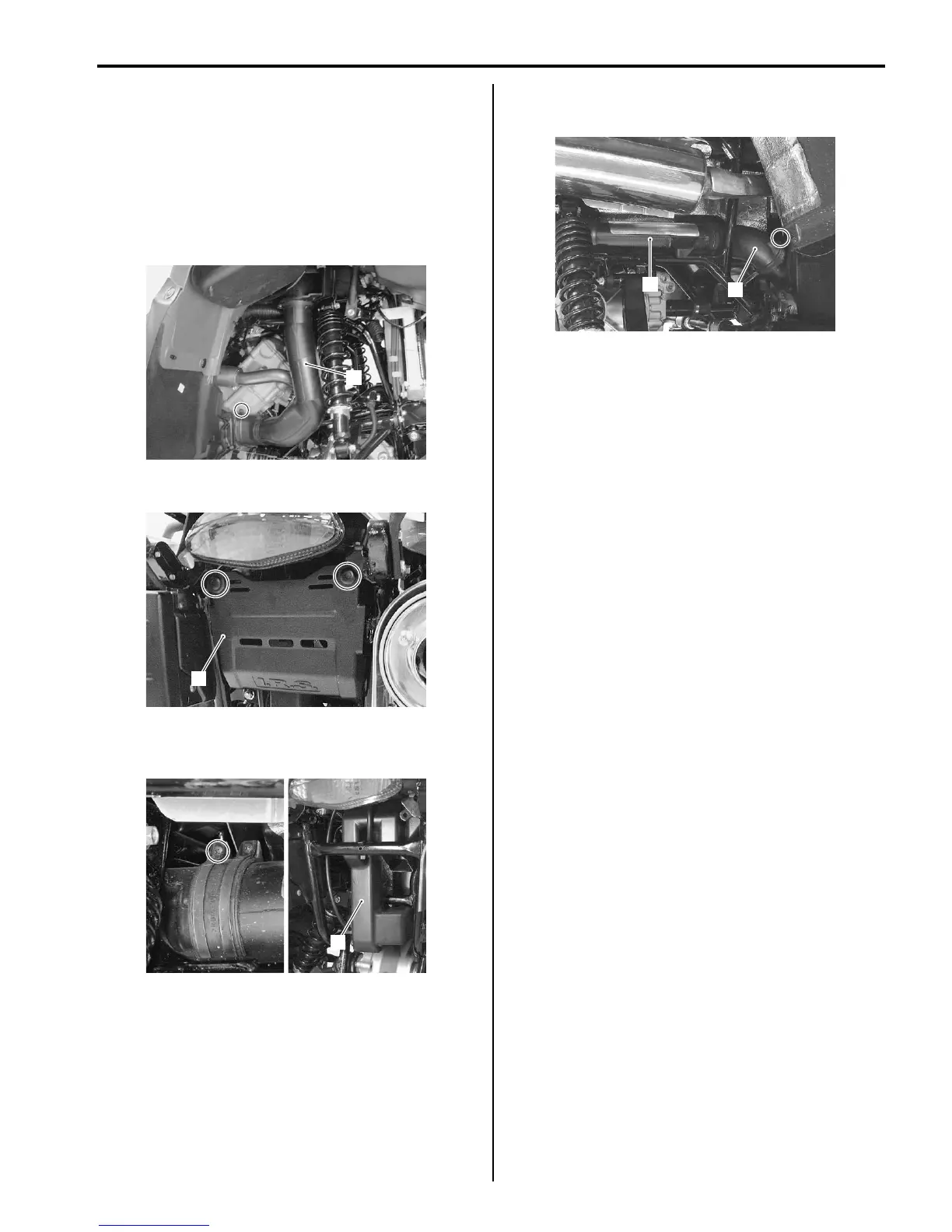

2) Loosen the clamp screw and remove the inlet
cooling duct assembly (1).
3) Remove the rear cover (2).
4) Loosen the clamp and remove the outlet belt cooling
duct No. 2 (3).
5) Remove the outlet belt cooling duct No. 1 (4) along
with outlet belt cooling duct connector (5).
Installation
1) Install the V-belt cooling duct as shown in the V-belt
cooling duct construction. Refer to “V-belt Cooling
Duct Construction (Page 5A-4)”.
2) Install the removed parts.
Clutch Engagement and Lock-up Speed
Inspection
B831G25106004
Refer to “Automatic Clutch Inspection in Section 0B
(Page 0B-26)”.
V-belt Type Continuously Variable Automatic
Transmission Removal and Installation
B831G25106005
Removal
V-belt outer cover
1) Remove the seat. Refer to “Seat Removal and
Installation in Section 9D (Page 9D-11)”.
2) Remove the right cover. Refer to “Front Side Exterior
Parts Removal and Installation in Section 9D
(Page 9D-6)”.
3) Remove the inner fender. Refer to “Front Side
Exterior Parts Removal and Installation in Section
9D (Page 9D-6)”.
4) Removal the footrest. Refer to “Footrest Removal
and Installation in Section 9E (Page 9E-2)”.
5) Remove the brake pedal. Refer to “Rear Brake
Pedal Removal and Installation in Section 4A
(Page 4A-14)”.
1
I831G1510004-01
2
I831G1510005-01
3
I831G1510006-01
4
5
I831G1510007-03
To Next Page
