9C-3 Combination Meter / Fuel Meter / Horn:
Combination Meter Removal and Installation
B831G29306002
CAUTION
!
When disconnecting and reconnecting the
combination meter coupler, make sure to
turn OFF the ignition switch, or electronic
parts may get damaged.

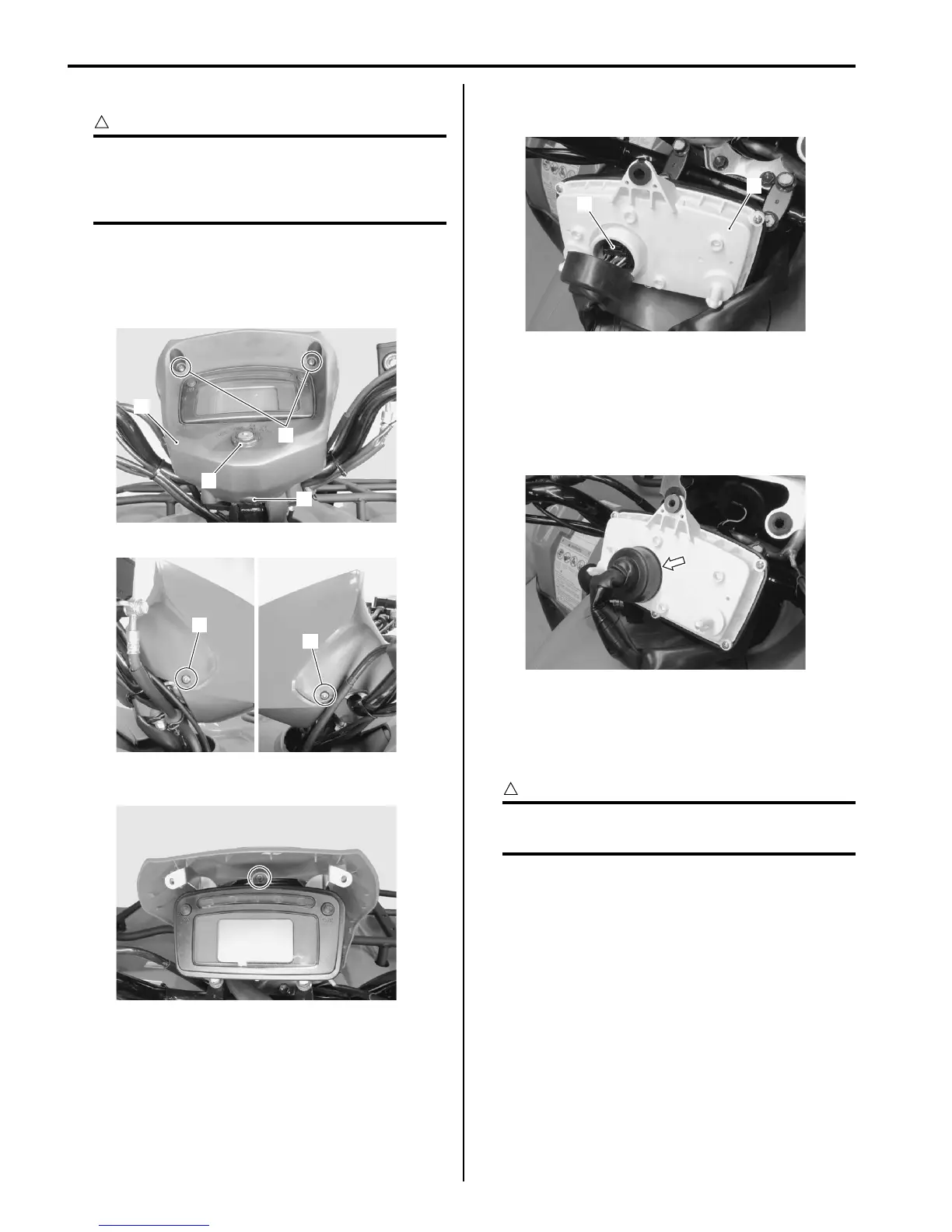

Removal
1) Remove the combination meter cover (1) by
removing the screws (2), fasteners (3) and ignition
switch ring nut (4).
2) Remove the combination meter mounting bolt.
3) Disconnect the combination meter coupler (5) and
remove the combination meter assembly (6).
Installation
Install the combination meter in the reverse order of
removal. Pay attention to the following points:
• Make sure that speedometer coupler boot is
positioned properly.
Combination Meter Disassembly and Assembly
B831G29306003
Refer to “Combination Meter Removal and Installation
(Page 9C-3)”.
CAUTION
!
Do not attempt to disassemble the
combination meter unit.
Disassembly
Disassemble the combination meter as shown in the
combination meter components. Refer to “Combination
Meter Components (Page 9C-2)”.
Assembly
Assemble the combination meter as shown in the
combination meter components. Refer to “Combination
Meter Components (Page 9C-2)”.
2
1
4
3
I831G1930004-01
3
3
I831G1930003-01
I831G1930005-01
5
6
I831G1930006-01
I831G1930007-01
