3C-2 Transfer:
Repair Instructions

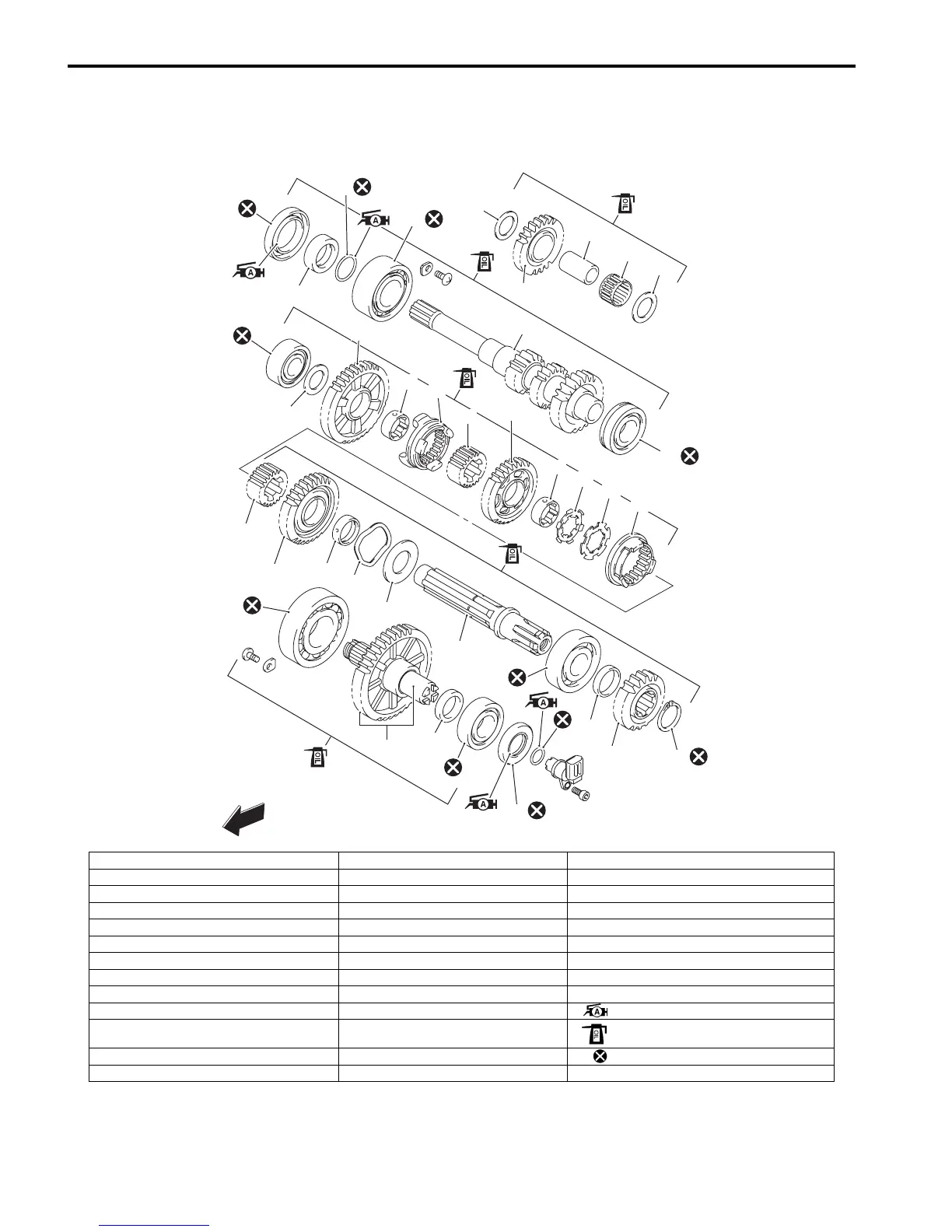

Transfer Components
B831G23306001
1
1
2
3
5
6
9
10
20
20
12
13
14
15
16
17
14
18
4
21
19
22
23
24
25
26
28
29
30
33
27
FWD
FWD
8
7
11
35
32
31
34
I831G1330001-09
1. Washer 14. Driven gear bushing 27. Counter shaft bearing (Left side)
2. Reverse idle gear 15. Select sliding dog 28. Spacer
3. Reverse idle gear shaft 16. Reverse select spacer 29. Drive gear No. 2
4. Reverse idle gear bearing 17. Reverse driven gear 30. Snap ring
5. Oil seal 18. Lock washer 31. Output shaft bearing (Right side)
6. Spacer 19. Lock washer 32. Transfer output drive gear/shaft
7. O-ring 20. High gearshift dog 33. Spacer
8. Drive shaft bearing (Right side) 21. Select spacer 34. Output shaft bearing (Left side)
9. Drive shaft 22. High driven gear 35. Oil seal
10. Drive shaft bearing (Left side) 23. High driven gear bushing : Apply grease.
11. Counter shaft bearing (Right Side) 24. Wave washer : Apply engine oil.
12. Washer 25. Washer : Do not reuse.
13. Low driven gear 26. Counter shaft
