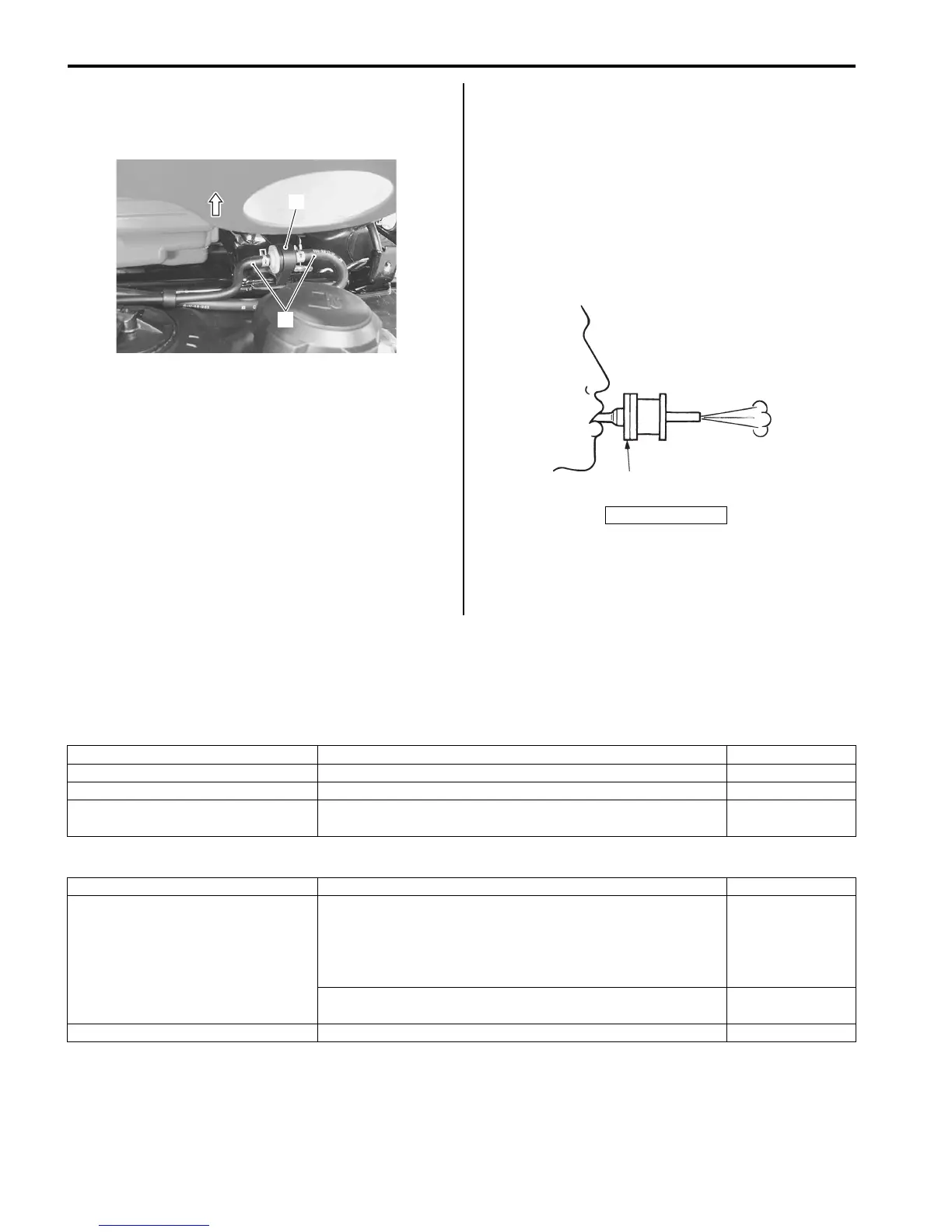

1G-13 Fuel System:
7) Move the rear fender upside.
8) Disconnect the breather hoses (4) and remove the
FTPC valve (5).
Installation
Install the FTPC valve in the reverse order of removal,
pay attention to the following points.
• Install the FTPC valve as shown in the fuel tank
breather hose routing diagram. Refer to “Fuel Tank
Breather Hose Routing Diagram (Page 1G-4)”.
Fuel Tank Pressure Control (FTPC) Valve
Inspection
B831G21706017
Inspect the FTPC valve in the following procedures:
1) Remove the FTPC valve. Refer to “Fuel Tank
Pressure Control (FTPC) Valve Removal and
Installation (Page 1G-12)”.
2) Check the FTPC valve if air can pass through
smoothly when blown from the orange color side and
not from the other side. If abnormal condition is
found, replace the FTPC valve with a new one.
3) After finishing the FTPC valve inspection, reinstall
the FTPC valve. Refer to “Fuel Tank Pressure
Control (FTPC) Valve Removal and Installation
(Page 1G-12)”.
Specifications
Service Data
B831G21707001
Injector + Fuel Pump + Fuel Pressure Regulator
Fuel
4
5
I831G1170032-01
“A”: Orange
“A”
I705H1170014-02
Item Specification Note
Injector resistance 11 – 13 Ω at 20 °C (68 °F) —
Fuel pump discharge amount 55.5 ml (1.88/1.95 US/lmp oz) and more/10 sec. —
Fuel pressure regulator operating
set pressure
Approx. 294 kPa (2.9 kgf/cm
2
, 41 psi) —
Item Specification Note
Fuel type
Use only unleaded gasoline of at least 87 pump octane (R/2
+ M/2) or 91 octane or higher rated by the Research Method.
Gasoline containing MTBE (Methyl Tertiary Butyl Ether), less
than 10% ethanol, or less than 5% methanol with
appropriate cosolvents and corrosion inhibitor is permissible.
P-28, 33
Gasoline used should be graded 91 octane or higher. An
unleaded gasoline type is recommended.
Others
Fuel tank capacity 17.5 L (4.6/3.8 US/lmp gal)
