9E-1 Body Structure:
Body and Acc essories
Body Structure
Repair Instructions

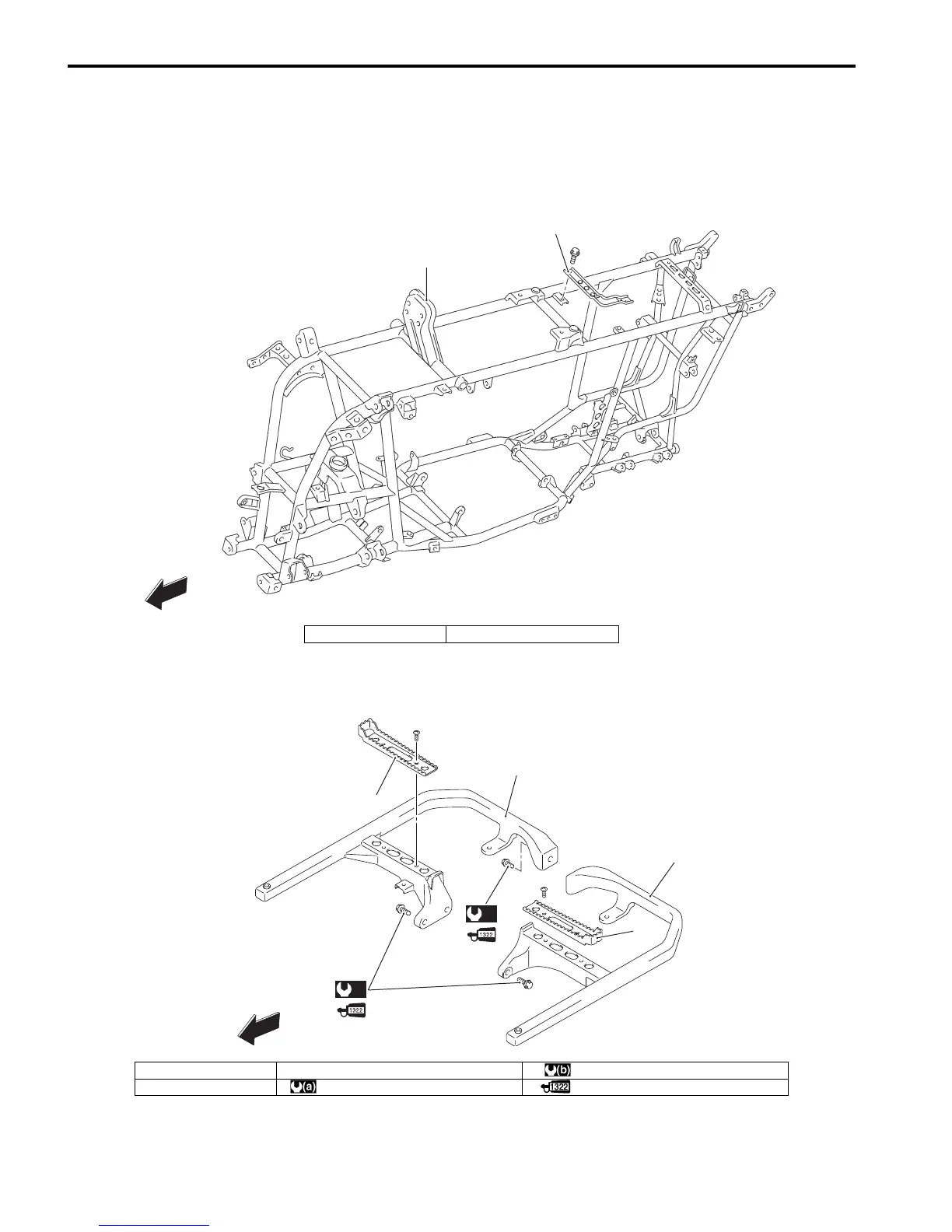

Body Frame Construction
B831G29506001
Footrest Construction
B831G29506002
2
1
FWD
FWD
I831G1950005-06
1. Frame 2. Battery plate
3
1
2
(b)
3
FWD
FWD
(a)
I831G1950001-04
1. Footrest (R) 3. Footrest plate : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
2. Footrest (L) : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft) : Apply thread lock to the thread part.
