1K-1 Exhaust System:
Engine
Exhaust System
Precautions
Precautions for Exhaust System
B831G21B00001
WARNING
!
To avoid the risk of being burned, do not touch the exhaust system when the system is hot. Any
service on the exhaust system should be performed when the system is cool.
CAUTION
!
Make sure that the exhaust pipe and muffler have enough clearance from the rubber parts and plastic
parts to avoid melting.
Repair Instructions

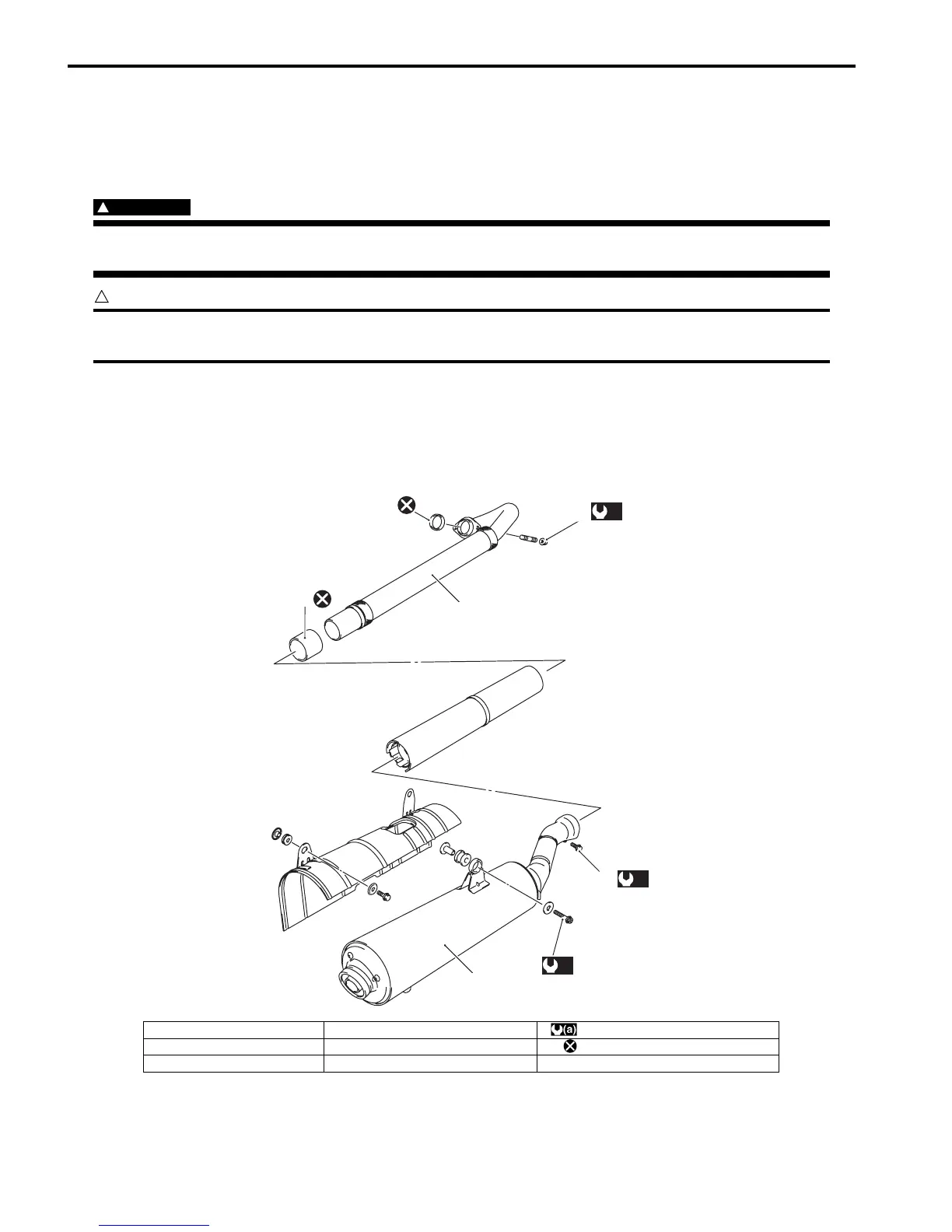

Exhaust System Construction
B831G21B06001
(a)
4
1
3
2
(a)
5
(a)
6
I831G11B0001-03
1. Exhaust pipe 4. Exhaust pipe nut : 23 Nâ‹…m (2.3 kgf-m, 16.5 lb-ft)
2. Muffler 5. Exhaust pipe mounting bolt : Do not reuse.
3. Connector 6. Muffler connecting bolt
To Next Page
